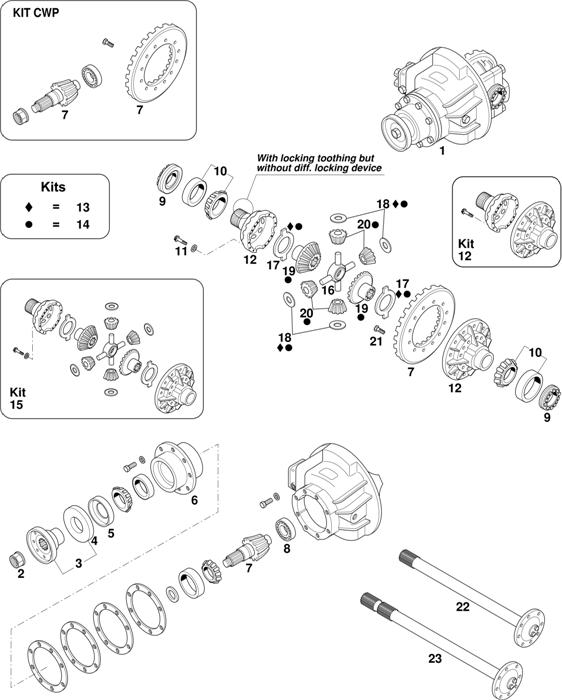

SchemaEuroricambi

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1		42536362	GROUP DIFF.COMPLETE	R.3,42	1
1		42536363	GROUP DIFF.COMPLETE	R.3,73	1
1		42536354	GROUP DIFF.COMPLETE	R.3,91	1
1		42536832	GROUP DIFF.COMPLETE	R.4,30	1
1		42536583	GROUP DIFF.COMPLETE	R.4,89	1
1		42536364	GROUP DIFF.COMPLETE	R.5,12	1
1		42536356	GROUP DIFF.COMPLETE	R.5,63	1
2	81171122	8121337	NUT M45X1,5		1	NSS
3		42532870	FLANGE		1
4		42532871	OIL COLLECTOR		1
5		42534850	OIL SEAL		1
6		42536505	BEARING HOUSING ASSY	OLD	1
6		42540257	BEARING HOUSING	NEW	1
7		42536351	KIT CWP 41:12	(A)R.3,42	1
7		42536352	KIT CWP 41:11	(A)R.3,73	1
7		42536346	KIT CWP 43:11	(B)R.3,91	1
7		42536831	KIT CWP 43:10	(A)R.4,30	1
7		42536349	KIT CWP 44:9	(B)R.4,89	1
7		42536353	KIT CWP 41:8	(B)R.5,12	1
7		42536350	KIT CWP 45:8	(B)R.5,63	1
8	98170107	1905316	BEARING 45X100X31 MM		1
9		8121386	GROOVED NUT M162X2,00		2
10		8190538	BEARING		2
11	81171440	42532900	SCREW M16X1,5X85-12,9		12	NSS
12		42532872	DIFFERENTIAL CASE EMPTY	(A)	1
12		42533253	DIFFERENTIAL CASE EMPTY	(B)	1
13	81171097	8124396	WASHERS KIT DIFF.		1
14	81170915	93161369	DIFF.REP.KIT W/OUT SPIDER		1
15		42532873	DIFFERENTIAL CASE COMPL.	(A)	1
15		42533254	DIFFERENTIAL CASE COMPL.	(B)	1
16	81170152	8121395	DIFFERENTIAL SPIDER		1
17	81170190	8121396	THRUST WASHER		2
18	81170513	8121394	THRUST WASHER		4
19	81170188	*****	SIDE GEAR 14 T.-46 SPL.		2

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
20	81170189	7149277	DIFF. PINION 9 T.		4
21	81171196	42532899	SCREW M16X40 - CL.12.9		16	NSS
22		42536496	DRIVE SHAFT	(1,3,5)	1
22		42536510	DRIVE SHAFT	(1,3,6)	1
23		42536497	DRIVE SHAFT	(2,4,5)	1
23		42536511	DRIVE SHAFT	(2,4,6)	1

(AB) RESPECT THE COUPLING AS THE ASSEMBLING WHEELBASE BETWEEN THE CWP AND THE DIFFERENTIAL HOUSING CHANGES.
(1) LEFT
(2) RIGHT
(3) WITHOUT DIFF.LOCK
(4) WITH DIFF.LOCK
(5) ONLY FOR MODELS: 150E24/28 - 320E28T
(6) ONLY FOR MODELS: 180E21/24/28
