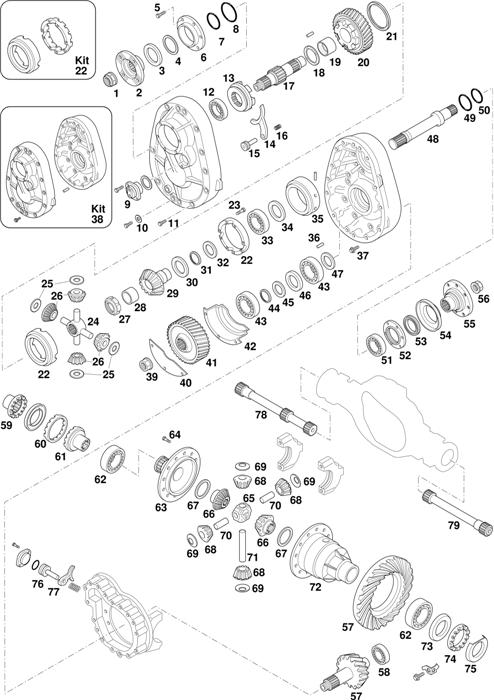

Fig.	Our No.	Part No.		Description	Notes	Q.ty	TP
1	30170137	42100842		GROOVED NUT M40X1.5		1
2	30170495	42104210		FLANGE		1
3		42104208		DUST COVER		1
4	30170439	40100963		SEAL RING 90X115X15		1
5		16607634		SCREW M10X25		6
6	30170492	42102298		COVER		1
7	30170311	42102397		O-RING 132X3		1
8		42102256		O-RING 170X3		1
9		2477056		CYLINDER 46X3		1
10		16508460		SEAL RING 22X27 MM		1
11		1123736		SCREW M14X110		12
12		1109148		BEARING		1
13	30170423	42116736		DIFF. LOCK SLEEVE		1
14	30170580	42116946		FORK DIFF. LOCK		1
15		42003148		PISTON		1
16		2443215		SPRING		1
17	30170057	42102309		SHAFT		1
18	30170422	42119540		WASHER		1
19	30170416	42102308		BUSH	Ø 65 MM	1
20	30170412	42102288		GEAR 41 T.		1
21	30170426	40101013		OIL SEAL		1
22	30170413	42119549		DIFFERENTIAL CASE EMPTY		1
23		1102894		SCREW M.10X70		12
24	30170415	42127913		DIFF. SPIDER		1
25	30170420	42102346		THRUST WASHER		4
26	30170419	42102342		DIFF. PINION 11 T.		4
27	30170418	42102312		GROOVED NUT	M58X1,5	1
28	30170417	42102311		BUSH	Ø 50 MM	1
29	30170424	42119546		SIDE GEAR 18 T. - 20 SPL.		1
30	30170421	42102347		THRUST WASHER		1
31		42102398		GUARD		1
32	30170427	40101073		OIL SEAL		1
33	98170120	42115171		BEARING 80X140X26 MM		1
34		42117673		WASHER		1

Last update 01/2014

Fig.	Our No.	Part No.		Description	Notes	Q.ty	TP
35	30170430	42119547		SUPPORT		1
36	30170585	1117537		CYLINDRICAL PIN D.6X28		1	NSS
37		1164281		SCREW M14X60		7
38	30170494	42102353		DIFFERENTIAL CASE EMPTY		1
39		42127685		NUT M50X1,5		1
40		42102396		PLATE		1
41	30170506	42119538		GEAR 41 T		1
42		42102395		PLATE		1
43	98170125	42102313		BEARING 71,44X150X38		2
44		42119536		SHIM 1,00 MM		1
44		42127925		SHIM 1,50 MM		1
44		42127937		SHIM 1,80 MM		1
45		42119508		SPACER		1
46		42119539		SPACER T.5,00 MM		1
47	30170467	42026629		SHIM 3,40 MM		1
48		42102318		DRIVE SHAFT		1
49		42102399		O-RING 140X3		1
50		42102403		O-RING 112X3		1
51		1109142		BEARING		1
52		42102599		COVER		1
53	30170464	40102173		SEAL RING 80X100X12		1
54		42102339		PLATE		1
55		42102323		OUTPUT FLANGE		1
56	30170137	42100842		GROOVED NUT M40X1.5		1
57		42127675		CROWN WHEEL/PINION 32:27	R.1,18	1
57		42127679		CROWN WHEEL/PINION 32:28	R.1,14	1
57		42127683		CROWN WHEEL/PINION 35:24	R.1,46	1
57	30170124	42127673		CROWN WHEEL/PINION 36:23	R.1,57	1
57		42119574		CROWN WHEEL/PINION 34:21	R.1,62	1
57		42127671		CROWN WHEEL/PINION 33:19	R.1,74	1
57		42127689		CROWN WHEEL/PINION 40:21	R.1,90	1
57		42127691		CROWN WHEEL/PINION 35:17	R.2,06	1
58	98170123	42026225		BEARING 50X110X27 MM		1
59		4459054		DIFF.LOCK SLEEVE		1
60	30170493	42102304		GROOVED NUT		1

Last update 01/2014

Fig.	Our No.	Part No.		Description	Notes	Q.ty	TP
61		4460199		DIFF.LOCK SLEEVE		1
62	98170064	7162944		BEARING 90X140X32 MM		2
63	30170483	42101741		HALF HOUSING		1
64		1162605		SCREW M14X35		16
65	30170487	42101766		SPIDER		1
66	30170486	42104286		SIDE GEAR 16 T - 40 SPL.		2
67	30170485	42101765		THRUST WASHER		2
68	30170490	42104284		DIFF. PINION 11 T.		4
69	30170491	42101751		THRUST WASHER		4
70	30170488	42118288		SHORT PIN		2
71	30170489	42118287		LONG PIN		1
72	30170484	42101828		HALF HOUSING		1
73		42102695		PLATE		1
74		42102694		GROOVED NUT		1
75		42102692		PLATE		1
76		42003148		PISTON		1
77	30170587	42116004		FORK DIFF. LOCK		1
78		42102376		DRIVE SHAFT	L=1089,5MM	1
79		42102375		DRIVE SHAFT	L=1043,5MM	1
