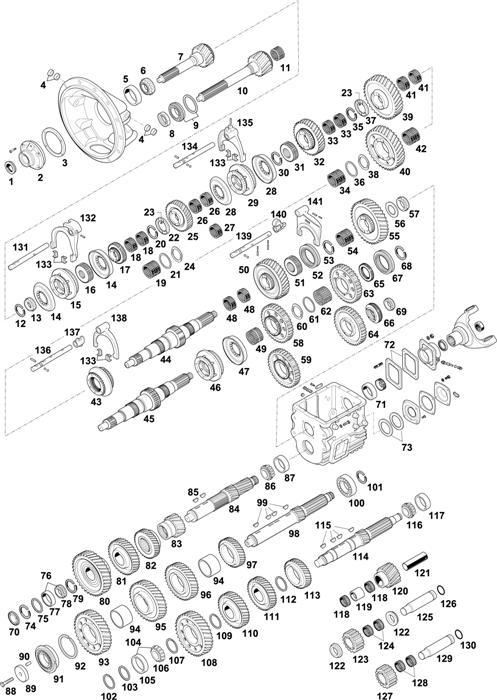

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	35510443	4300121	OIL SEAL		1
1		20716	OIL SEAL	(1)	1
1		19110	OIL SEAL	(2)	1
1		22329	OIL SEAL		1
2		4300888	COVER	(3)	1
2		20651	COVER	(2,3)	1
2		20652	COVER	(1,3)	1
2		3316171	COVER	(2,3)	1
2		21992	COVER	(2,4)	1
2		4300112	COVER	(2,3)	1
3		3315659	GASKET		1
3	35540436	14311	GASKET		1	NSS
3		4301209	GASKET		1
4	35510281	12815	BUSH		4
4		201966	BUSH		4
5		675250	BEARING CUP		1
6		742259	BEARING CONE		1
7	35510373	4304933	INPUT SHAFT 25 T.	(5)	1
7		23043	INPUT SHAFT	(2,3)	1
7		23376	INPUT SHAFT 25 T.	(5,6)	1
7		23377	INPUT SHAFT	(5,6)	1
7		4300578	INPUT SHAFT	(2,6)	1
7		4300563	INPUT SHAFT 16 T.	(2,4)	1
7		4300564	INPUT SHAFT	(2,6)	1
8	35530279	8858	NUT		1
9		20701	BEARING		1
10		20658	INPUT SHAFT	(2)	1
10		20659	INPUT SHAFT	(1)	1
10		21074	INPUT SHAFT	(2)	1
11		20702	NEEDLE BEARING		1
12		3313798	SNAP RING		1
13		710787	BEARING		1
14	35510174	4301467	SYNCHRONIZER CONE 5TH/6TH		2
14		20682	SYNCHRONIZER CONE	OLD	2

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
14		22396	SYNCHRONIZER CONE	NEW	2
14		22315	SYNCHRONIZER CONE		2
15	35510044	A-6137	SYNCHRONIZER 2ND/3RD		1
15	35510144	A-6608	SYNCHRONIZER		1
15		A-4994	SYNCHRONIZER		1
15		A-5341	SYNCHRONIZER		1
15		A-5726	SYNCHRONIZER ASSY		1
16	35510158	4301476	HUB 5TH/6TH		1
16		20677	HUB		1
16		22314	HUB		1
16		4300569	HUB		1
17	35510372	4304932	GEAR 5TH SPEED 30 T.		1
17	35510453	20661	GEAR 5TH SPEED		1
17		22303	GEAR 5TH		1
17		4300565	GEAR 5TH		1
18	98510008	3315737	NEEDLE BEARING 50X55X20		2
19		20704	NEEDLE BEARING		1
20		3315728	SNAP RING T.2,415 MM		1
21		20711	WASHER		1
22		3315727	WASHER		1
23		10J06	BALL 3/16"		2
24		20710	SPLIT WASHER		2
25		4304946	GEAR 4TH		1
25	35510454	20663	GEAR C/S 4TH		1
25	35510369	4304931	GEAR C/S 4TH SPEED 37 T.		1
25		22305	GEAR 4TH		1
25		23374	GEAR 4TH		1
25		4300566	GEAR 4TH		1
26	98510009	4124075	NEEDLE BEARING 55X60X20		2
27		20705	NEEDLE BEARING		1
28	35510096	4301466	SYNCHRONIZER CONE 3RD/4TH		2
28		20687	SYNCHRONIZER CONE	OLD	2
28		22397	SYNCHRONIZER CONE	NEW	2
28		22317	SYNCHRONIZER CONE		2
29	35510105	A-6136	SYNCHRONIZER 3RD/4TH		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
29		A-4993	SYNCHRONIZER 3RD/4TH		1
29		A-5340	SYNCHRONIZER 3RD/4TH		1
29		A-5724	SYNCHRONIZER ASSY		1
30		3315725	SNAP RING		1
30		20712	SNAP RING		1
31		4301475	HUB 3RD/4TH		1
31		20683	HUB 3RD/4TH		1
31		22316	HUB 3RD/4TH		1
31		4300792	HUB 3RD/4TH		1
32		4304945	GEAR 3RD		1
32	35510455	20665	GEAR M/S 3RD		1
32	35510456	4304930	GEAR M/S 3RD 48 T.		1
32		23048	GEAR 3RD		1
32		23372	GEAR 3RD		1
32		4300794	GEAR 3RD		1
33	98510012	3315722	NEEDLE BEARING 65X70X20		2
34		20706	NEEDLE BEARING		1
35		3315717	SNAP RING T.2,415 MM		1
36		20714	WASHER	OLD	1
36		4300793	WASHER	NEW	1
37		3315719	WASHER		1
38		20713	SPLIT WASHER		2
39		4304944	GEAR 2ND		1
39		20667	GEAR 2ND	OLD	1
39		22395	GEAR 2ND	NEW	1
39	35510371	4304929	GEAR 2ND SPEED 43 T.		1
40		23050	GEAR 2ND		1
40		23370	GEAR 2ND		1
40		4300821	GEAR 2ND		1
41	98510007	3315703	NEEDLE BEARING 70X76X20		2
42		20706	NEEDLE BEARING		1
43	35510108	A-7934	SYNCHRONIZER 1ST/2ND		1
44	35510156	4304549	MAIN SHAFT		1
45		20675	MAIN SHAFT		1
45		23313	MAIN SHAFT		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
45		22756	MAIN SHAFT		1
45		4300570	MAIN SHAFT		1
46		A-4992	SYNCHRONIZER ASSY 1ST/2ND		1
46		A-5339	SYNCHRONIZER ASSY 1ST/2ND		1
46		A-5723	SYNCHRONIZER ASSY 1ST/2ND		1
47		20687	SYNCHRONIZER CONE	OLD	1
47		22397	SYNCHRONIZER CONE	NEW	1
48	98510007	3315703	NEEDLE BEARING 70X76X20		2
49		20706	NEEDLE BEARING		1
50	35510172	4304545	GEAR 1ST SPEED 47 T.		1
51	35510253	4301474	SYNCHRONIZER HUB		1
52		4304550	SLIDING SLEEVE		1
53		3315725	SNAP RING		1
54		4304555	NEEDLE BEARING		1
55		4304547	REVERSE GEAR		1
56		4301492	WASHER		1
57		5557003	BEARING CONE		1
58		20669	GEAR 1ST		1
59		22311	GEAR 1ST	OLD	1
59		23369	GEAR 1ST	NEW	1
59		4300694	GEAR 1ST		1
60		20713	SPLIT WASHER		2
61		20714	WASHER	OLD	1
61		4300793	WASHER	NEW	1
62		20706	NEEDLE BEARING		1
63		20670	REVERSE GEAR		1
64		22312	REVERSE GEAR		1
64		23520	REVERSE GEAR		1
65		20690	HUB		1
66		22319	HUB		1
66		22318	HUB		1
67		20691	SLIDING SLEEVE		1
67		22757	SLIDING SLEEVE		1
67		4300791	SLIDING SLEEVE		1
68		20692	SNAP RING		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
69		5202047	BEARING CONE		1
69		731334	BEARING CONE		1
70		3315679	PLUG		1
71		711123	BEARING CUP		1
71		675250	BEARING CUP		1
72		3315662	SHIM 0,004		1
72		3315663	SHIM 0,007		1
72		3315664	SHIM 0,010		1
72		3315665	SHIM 0,020		1
72		4300978	SHIM 0,040		1
73		3315681	SHIM 0,004		1
73		3315682	SHIM 0,007		1
73		3315683	SHIM 0,010		1
73		3315684	SHIM 0,020		1
73		4300977	SHIM 0,040		1
74		3315686	SNAP RING		1
75		3315687	WASHER		1
76		K-3796	BEARING KIT		1
77		5557506	BEARING CUP		1
78		5557008	BEARING CONE		1
79		3315752	RETAINER RING T.2,415 MM		1
80	35510370	4304935	GEAR C/S 47 T.		1
81	35510457	4304936	GEAR 5TH SPEED 39 T.		1
82		4304940	GEAR 4TH		1
82	35510480	4304937	GEAR 4TH SPEED 32 T.		1
83		4304941	GEAR 3RD		1
83	35510481	4304938	GEAR 3RD SPEED 27 T.		1
84		4304939	COUNTERSHAFT		1
84	35510479	4304934	COUNTERSHAFT 10/15 T.		1
85		230292	KEY		2
86		658981	BEARING CONE		1
87		660181	BEARING CUP		1
88	35531063	X-7-1005	SCREW 5/8"-18X1,75		1	NSS
89		20717	WASHER		1
90	35530493	62511	PIN		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
91		20703	BEARING		1
92		20692	SNAP RING		1
93		20660	GEAR		1
94		20718	BUSH		2
95		20662	GEAR 5TH		1
96		20664	GEAR		1
97		20666	GEAR		1
98		20668	COUNTERSHAFT		1
99	35530492	X-6-E	KEY		4	NSS
100		6488	BEARING		1
101	35530436	15253	ELASTIC RING		1
102		3315686	SNAP RING		1
103		3315687	WASHER		1
104		K-3795	BEARING KIT		1
105		1313645	BEARING CUP		1
106		791943	BEARING CONE		1
107	35540498	17399	RETAINER RING		1
108		23047	GEAR		1
108		23378	GEAR		1
108		4300567	GEAR		1
109		22328	RETAINER RING		1
110		22304	GEAR 5TH		1
110		4300568	GEAR 5TH		1
111		22306	GEAR 4TH		1
111		23375	GEAR 4TH		1
111		4300574	GEAR 4TH		1
112		22360	SNAP RING		1
113		23049	GEAR 3RD		1
113		23373	GEAR 3RD		1
114		23051	COUNTERSHAFT	OLD	1
114		23371	COUNTERSHAFT	NEW	1
114		4300824	COUNTERSHAFT		1
115	35530492	X-6-E	KEY		4	NSS
116		658981	BEARING CONE		1
117		660181	BEARING CUP		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
118		3315674	NEEDLE BEARING		2
119		3315676	SPACER		1
120		4304318	REVERSE IDLER GEAR		1
121		3315672	REVERSE IDLER SHAFT		1
122		20673	SPACER		2
123		20671	REVERSE IDLER GEAR		1
124		20707	NEEDLE BEARING		2
125		A-5071	REVERSE IDLER SHAFT		1
126		20674	WASHER		1
127		20671	REVERSE IDLER GEAR		1
127		4300819	REVERSE IDLER GEAR		1
128		20707	NEEDLE BEARING		2
129		22324	REVERSE IDLER SHAFT		1
130		20674	WASHER		1
131		4301472	CONTROL ROD		1
131		21962	CONTROL ROD		1
131		4300627	CONTROL ROD		1
132		A-6138	FORK ASSY 5TH/6TH	W/SLIDE(7)	1
132		21960	FORK 5TH/6TH		1
132		22321	FORK 5TH/6TH		1
132		A-5670	FORK ASSY 5TH/6TH	W/SLIDE(8)	1
132		A-5800	FORK ASSY 5TH/6TH		1
133	35510448	227675	SLIDE		6
133		21199	SLIDE		6
134		4301471	CONTROL ROD		1
134		21962	CONTROL ROD		1
134		4300627	CONTROL ROD		1
135		A-6139	FORK ASSY 3RD/4TH	W/SLIDE(9)	1
135		21959	FORK 3RD/4TH		1
135		22331	FORK 3RD/4TH		1
135		A-5343	FORK ASSY 3RD/4TH	W/SLIDE(10)	1
135		A-5801	FORK ASSY 3RD/4TH		1
136		4304561	CONTROL ROD 1ST/2ND		1
136		21962	CONTROL ROD		1
136		4300627	CONTROL ROD		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
137		3315778	BLOCK 1ST/2ND		1
137		21958	BLOCK 1ST/2ND		1
137		4301165	BLOCK 1ST/2ND		1
137		4300610	BLOCK 1ST/2ND		1
138		3315772	FORK 1ST/2ND		1
138		21196	FORK 1ST/2ND		1
138		22330	FORK 1ST/2ND		1
138		A-5344	FORK ASSY 1ST/2ND	W/SLIDE(11)	1
139		4301469	CONTROL ROD REV.		1
139		21961	CONTROL ROD REV.		1
139		22323	CONTROL ROD REV.		1
139		23450	CONTROL ROD REV.		1
139		4300628	CONTROL ROD REV.		1
140		3316300	BLOCK REV.		1
140		21957	BLOCK REV.		1
140		4301163	BLOCK REV.		1
140		4300608	BLOCK REV.		1
141		3315897	FORK REV.		1
141		21195	FORK REV.		1
141		22322	FORK REV.		1

(1) 1-1/2"
(2) 1-3/4"
(3) PULL
(4) PUSH
(5) 1,75"
(6) PUSH / PULL
(7) COMPOSED BY: 1 PC. 4301488 FORK 5TH/6TH (NOT ILLUSTRATED) + 2 PCS. 227675 (FIG.133)
(8) COMPOSED BY: 1 PC. 4300039 FORK 5TH/6TH (NOT ILLUSTRATED) + 2 PCS. 21199 (FIG.133)
(9) COMPOSED BY: 1 PC. 4301486 FORK 3RD/4TH (NOT ILLUSTRATED) + 2 PCS. 227675 (FIG.133)
(10) COMPOSED BY: 1 PC. 22331 (FIG.135) + 2 PCS. 21199 (FIG.133)
(11) COMPOSED BY: 1 PC. 22330 (FIG.138) + 2 PCS. 21199 (FIG.133)
