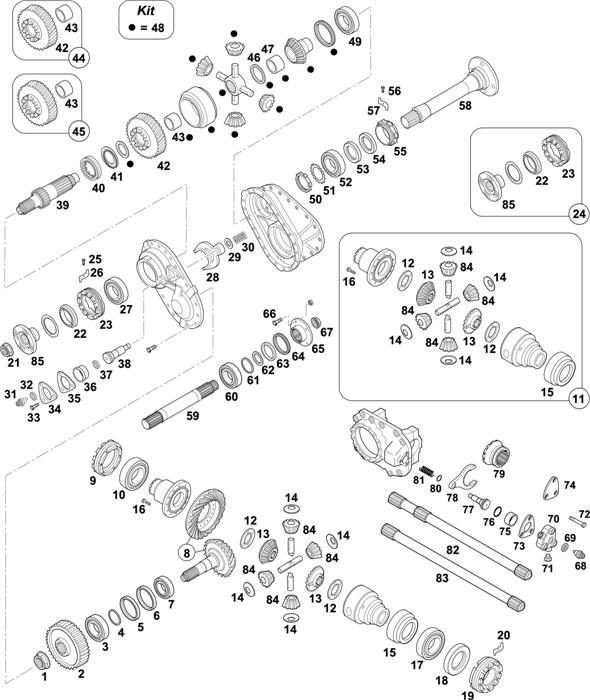

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	60170101	385 351 0672	NUT M45X1,5-SW55		1
2	60171279	944 353 0385	GEAR 31 T		1
2	56170394	944 353 0085	GEAR 29 T.		1
3	98170053	944 350 0149	BEARING 55X120X45,5 MM		1
4		355 353 6751	SPACER T.4,21 MM		1
5	60171252	355 353 0129	OIL FLAP		1	NSS
6		002 353 8577	WASHER T.2,30 MM		1
6		002 353 8677	WASHER T.2,20 MM		1
6		002 353 8777	WASHER 118X139,95X2,0		1
6		002 353 8877	WASHER T.1,90 MM		1
6		002 353 9077	WASHER T.1,70 MM		1
7	98170059	005 981 0505	BEARING 65X140X51 MM		1
8	56170292	944 350 2639	CROWN WHEEL/PINION 29:17	R.1,71	1
8	56170286	944 350 2739	CROWN WHEEL/PINION 27:18	R.1,50	1
8	56170289	944 350 2539	CROWN WHEEL/PINION 28:21	R.1,33	1
8	56170281	944 350 2439	CROWN WHEEL/PINION 29:24	R.1,20	1
9	60171259	944 353 0025	GROOVED NUT M132X1,5		1
10	98170164	005 981 1505	BEARING 85X130X29 MM		1
11	56170279	944 350 0623	DIFF.HOUSING COMPLETE		1
12	60200092	308 353 0062	THRUST WASHER	STEEL	2
13	60170772	355 353 0615	SIDE GEAR 14 T.-34 SPL.		2
14	60170776	395 353 0277	THRUST WASHER		4
15	60171257	944 353 0328	OIL COLLECTOR		1	NSS
16	56170251	001 990 0103	SCREW M12X1,5X55		20	NSS
17	98170195	005 981 6905	BEARING 70X110X31 MM		1
18		944 353 0228	OIL COLLECTOR		1
19	60171256	944 353 0325	GROOVED NUT	OLD	1
19	60171483	944 350 0243	GROOVED NUT	NEW(1)	1
19	60170880	355 350 0343	GROOVED NUT LH		1
20		942 353 0073	RETAINER		1
20	60171519	970 353 0073	RETAINER		1	NSS
20		944 353 0173	RETAINER		1
21	60170893	385 351 0572	NUT M55X1,5-SW65		1
22	60171411	942 351 0188	GUARD		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
23	56170237	942 353 0925	GROOVED NUT M142X1,5		1
24	60171866	942 350 1445	KIT FLANGE D.150MM DIN9T	(2)	1
24	60171867	942 350 1545	KIT FLANGE D.180MM DIN9T	(3)	1
25		304017 008026	SCREW M8X16		1
26		942 353 0073	RETAINER		1
27		942 981 0405	BEARING		1
28	56170252	942 353 0134	SHIFT FORK		1
29	60171508	948 353 0162	WASHER 22,5X30X1		1	NSS
29		002 353 5477	WASHER 0,50 MM		1
30	56170442	948 993 0001	SPRING		1	NSS
31		001 545 8409	SWITCH		1
32	95531568	007603 018103	SEAL RING18X24X1,4DIN7603		1
32		007603 018100	SEAL RING 18X22 MM		2
33		910143 600800	SCREW		3
34	60171589	944 353 1106	COVER	(6)	1	NSS
35	60171512	942 353 0180	GASKET		1
36	60171464	942 353 0050	BUSH		1
37	60171511	023 997 1048	O-RING 34X3 MM		1	NSS
38	60171430	948 353 0035	PIN		1
39	60171268	942 353 0435	LAY SHAFT		1
40	60171269	942 353 0236	SLIDING CLUTCH GEAR		1
41	60171270	942 353 0062	WASHER		1
42	56170395	*****	GEAR 32 T.		1
43	56170259	000 353 1450	BUSH D.75 MM		1
44	60171429	000 353 1785	GEAR 32 T.	(4)	1
45	60171271	000 353 1885	COMPLETE GEAR 31 T.		1
46	60171272	002 353 9177	WASHER 55,1X69X4 MM		1
47	60170587	346 353 0650	BUSH 57X50X41 MM		1
48	56170264	000 350 7923	REPAIR KIT		1
49	98170215	944 350 0049	BEARING 75X130X27,25 MM		1	NSS
50	60170962	674 356 0226	GROOVED NUT		1
51	60200343	070952 060102	LOCK RING		1
52	98170043	005 981 5925	BEARING 60X110X22 MM		1
53	60171091	017 997 3147	OIL SEAL 75X95X10/9,5 MM		1
54	60171092	017 997 3047	OIL SEAL 75X95X10/9,5 MM		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
55	60171290	942 353 0225	GROOVED NUT		1
56	60171521	304017 008039	SCREW M8X1,25X12		1	NSS
57	60171918	352 353 0073	RETAINER		1
58		944 353 0235	DRIVE SHAFT		1
59	60171263	944 353 0335	SHAFT 28/22 T.		1
60	98170043	005 981 5925	BEARING 60X110X22 MM		1
61		002 353 8477	WASHER 90X110X2,0 MM		1
62		944 994 0041	LOCK RING 110X4 MM		1
63	60171266	942 353 0159	OIL SEAL 85X120X21 MM		1
64		942 351 0288	GUARD		1
65	60171267	944 353 0245	FLANGE D.155	OLD(5)	1
65		942 353 1445	FLANGE	NEW	1
66		007 990 1401	SCREW		4
67	60170893	385 351 0572	NUT M55X1,5-SW65		1
68		001 545 8409	SWITCH		1
69		007603 018100	SEAL RING 18X22 MM		1
70	60171589	944 353 1106	COVER	(6)	1	NSS
71		000 997 5034	SCREW		1
72		910143 600800	SCREW		3
73	60171512	942 353 0180	GASKET		1
74		948 353 0406	COVER		1
75	60171464	942 353 0050	BUSH		1
76	60171511	023 997 1048	O-RING 34X3 MM		1	NSS
77	60171430	948 353 0035	PIN		1
78	56170252	942 353 0134	SHIFT FORK		1
79	60171269	942 353 0236	SLIDING CLUTCH GEAR		1
79		944 353 0236	SLIDING CLUTCH GEAR		1
80	60171508	948 353 0162	WASHER 22,5X30X1		1	NSS
80		002 353 5477	WASHER 0,50 MM		1
81	56170442	948 993 0001	SPRING		1	NSS
82	60171880	944 357 0001	DRIVE SHAFT 1121 MM	W/D.LOCK	1
83		944 357 0101	DRIVE SHAFT W/OUT D.LOCK	L=1081 MM	1
84	60170743	395 353 0114	DIFF. PINION 10 T.		4
85	60171412	942 353 1145	FLANGE D.150 DIN9T	(2)	1
85	60171414	942 353 1045	FLANGE D.180 DIN9T	(3)	1

(1) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 60170880 - 355 350 0343 (FIG.19)
(2) UP TO AXLE V 935175, 2 000001
(3) FROM AXLE V 935176, 2 000002
(4) NOT SUPPLIED SEPARATELY, WE SUPPLY: 1 PC 56170259 - 000 353 1450 (FIG.43) + 1PC 56170395 - ***** (FIG.42)
(5) 60171267 - 944 353 0245 REPLACED BY 1 PC 942 353 1445 (FIG.65) + 1 PC 942 351 0288 (FIG.64)
(6) 948 353 0606 (FIG.34/70) REPLACED BY 944 353 1106 (FIG.34/70) + 3 PCS 910143 600800 (FIG.33/72)
