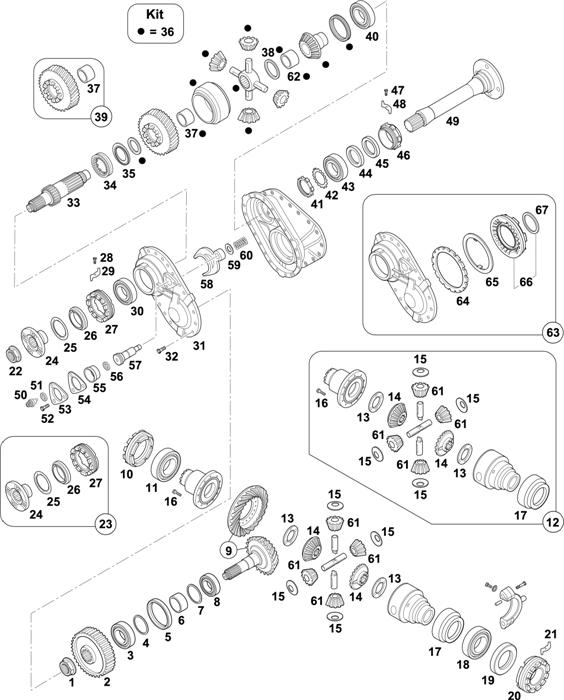

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	60170893	385 351 0572	NUT M55X1,5-SW65		1
2	60171045	942 353 0315	GEAR 37 T.	(A)	1
2	60171356	942 353 0215	GEAR 35 T.	(B)	1
3	98170154	003 981 0605	BEARING 65X140X36 MM		1
4		001 353 0151	SPACER T.4,00 MM		1
4		001 353 0451	SPACER T.3,70 MM		1
5		346 353 1429	OIL COLLECTOR		1
6		942 353 0150	BUSH		1
7		002 353 7677	WASHER
8	98170054	003 981 2905	BEARING 70X150X54 MM		1
9	56170361	942 350 2639	CROWN WHEEL/PINION 29:17	R.1,71	1
9	56170358	942 350 2839	CROWN WHEEL/PINION 27:18	R.1,50	1
9	56170364	942 350 2739	CROWN WHEEL/PINION 28:21	R.1,33	1
9	56170355	942 350 2539	CROWN WHEEL/PINION 29:24	R.1,21	1
10		942 353 0125	GROOVED NUT		1
10	60171877	942 350 0143	GROOVED NUT		1
11	98170083	001 981 7205	BEARING 100X150X32 MM		1
12	56170353	000 350 8023	DIFFERENTIAL CASE COMPL.		1
13	60170091	346 353 2262	THRUST WASHER	STEEL	2
14	60170765	346 353 0815	SIDE GEAR 16 T.-40 SPL.		2
15	60171842	346 353 0524	THRUST WASHER		4	NSS
16	60171840	001 990 5000	SCREW M16X1,5X75-12.9		16	NSS
17	60171832	942 353 0428	OIL COLLECTOR		1	NSS
18	98170195	005 981 6905	BEARING 70X110X31 MM		1
19		942 353 0228	OIL COLLECTOR		1
20	60171878	970 353 0025	GROOVED NUT M155X1,5		1
21	60171519	970 353 0073	RETAINER		1	NSS
22	60170893	385 351 0572	NUT M55X1,5-SW65		1
23	60171867	942 350 1545	KIT FLANGE D.180MM DIN9T	(C)(3)	1
23	60171868	942 350 1645	KIT FLANGE D.200MM DIN9T	(D)	1
24	60171414	942 353 1045	FLANGE D.180 DIN9T	(C)	1
24		942 353 0745	FLANGE	(1,4)	1
24	60171416	942 353 1245	FLANGE D.200 DIN9T	(D)	1
24	60171275	942 353 0645	FLANGE D.180	(1)	1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
25	56170238	014 997 1246	OIL SEAL 85X110X12/17 MM		1
25	60171266	942 353 0159	OIL SEAL 85X120X21 MM		1
26	60171411	942 351 0188	GUARD		1
27	56170237	942 353 0925	GROOVED NUT M142X1,5		1
28		304017 008026	SCREW M8X16		1
29		942 353 0073	RETAINER		1
30		942 981 0405	BEARING		1
31	56170390	942 351 0008	COVER	OLD	1
31		942 351 0108	COVER		1
32		019 990 2501	SCREW M12X35		18
33	60171268	942 353 0435	LAY SHAFT		1
34	60171269	942 353 0236	SLIDING CLUTCH GEAR		1
35	60171270	942 353 0062	WASHER		1
36	56170198	000 350 8123	REPAIR KIT		1
37	56170259	000 353 1450	BUSH D.75 MM		1
38	60171272	002 353 9177	WASHER 55,1X69X4 MM		1
39	60171355	000 353 1685	COMPLETE GEAR 37 T.	(A)	1
39	60171487	000 353 1585	COMPLETE GEAR 39 T.	(B)	1
40	98170194	942 981 0205	BEARING 75X130X33,25 MM		1
41	60170962	674 356 0226	GROOVED NUT		1
42	60200343	070952 060102	LOCK RING		1
43	98170043	005 981 5925	BEARING 60X110X22 MM		1
44	60171091	017 997 3147	OIL SEAL 75X95X10/9,5 MM		1
45	60171092	017 997 3047	OIL SEAL 75X95X10/9,5 MM		1
46	60171290	942 353 0225	GROOVED NUT		1
46		942 353 1025	GROOVED NUT		1
47	60171521	304017 008039	SCREW M8X1,25X12		1	NSS
48	60171918	352 353 0073	RETAINER		1
49	60171844	942 353 0235	DRIVE SHAFT WITH FLANGE		1
50		001 545 8409	SWITCH		1
51		007603 018013	SEAL RING		1
51		007603 018100	SEAL RING 18X22 MM		1
52		910105 008014	SCREW		3
52		910143 600800	SCREW		3
53		944 353 0906	COVER		1

Last update 01/2014

Fig.

Our No.

Part No.

Description

Notes

Q.ty

60171589

944 353 1106

COVER

(2)

NSS

60171512

942 353 0180

GASKET

60171464

942 353 0050

BUSH

60171511

023 997 1048

O-RING 34X3 MM

NSS

60171430

948 353 0035

56170252

942 353 0134

SHIFT FORK

60171508

948 353 0162

WASHER 22,5X30X1

NSS

56170442

948 993 0001

SPRING

NSS

60170764

346 353 1014

DIFF. PINION 11 T.

60170587

346 353 0650

BUSH 57X50X41 MM

60171616

000 350 4403

COVER KIT

NEW

60171679

942 990 0055

RING M155

60171680

942 353 0373

WASHER

NSS

60171681

000 350 0243

GROOVED NUT

56170238

014 997 1246

OIL SEAL 85X110X12/17 MM

(ABCD) TO BE COUPLED TOGETHER
(1) UP TO AXLE 935174
(2) 948 353 0606 (FIG.53) REPLACED BY 944 353 1106 (FIG.53) + 3 PCS 910143 600800 (FIG.52)
(3) ONLY FOR THE COVER 56170390 - 942 351 0008 / OLD (FIG.31)
(4) 942 353 0745 (FIG.24) REPLACED BY: 1 PC 942 353 1245 (FIG.24) + 1 PC 942 351 0188 (FIG.26) + 1 PC 942 353 0925 (FIG.27) + 1 PC 014 997 1246 (FIG.25)
