(1) UP TO AXLE 301432
(2) FROM AXLE 301433
(3) WITH GASKET L=160,00 MM
(4) WITH GASKET L=180,00 MM
(5) UP TO AXLE 578195
(6) FROM AXLE 578196
(7) UP TO AXLE 393259
(8) FROM AXLE 393260
(9) UP TO AXLE 151342
(10) FROM AXLE 151343
(11) UP TO AXLE 440534
(12) FROM AXLE 440535
(13) WE SUPPLY THE DIFFERENTIAL CASE FOR CWP WITH PLUG: 60200422 - 387 350 0020 (FIG.77)
(15) REPLACED BY 1 PC 659 357 1001 (FIG.80) + 1 PC 009045 042001 (NOT ILLUSTRATED)
(16) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 60170880 - 355 350 0343 (FIG.4)

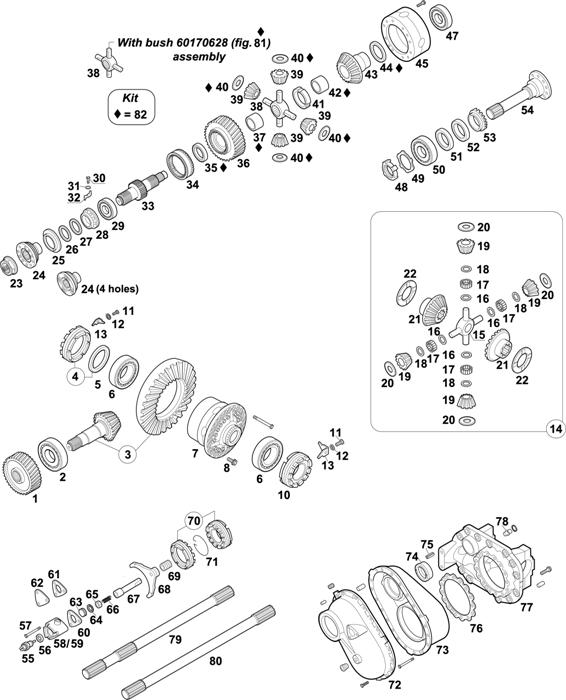

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
25	60200231	355 353 0391	GUARD		1	NSS
26	60531355	017 997 7947	OIL SEAL 80X100X10 MM		1
27		007 997 4947	OIL SEAL		1
28	60170917	355 353 0325	GROOVED NUT		1
29		000625 036312	BEARING		1
30		304017 008016	SCREW M8X16		1
31		006797 008120	WASHER		1
32	60171918	352 353 0073	RETAINER		1
33	60170570	355 353 0235	INTERMEDIATE SHAFT	(9)	1
33	60200246	355 353 0935	INTERMEDIATE SHAFT	(10)	1
34	60170571	355 353 0736	SLIDING SLEEVE	(11)	1
34	60170929	355 353 1036	SLIDING SLEEVE	(11)	1
34	60170762	355 353 1236	SLIDING SLEEVE	(12)	1
35	60200180	355 353 1862	THRUST WASHER T.4,00 MM		1
35	60200181	355 353 1962	THRUST WASHER T.3,85 MM		1
35	60200182	355 353 2062	THRUST WASHER T.3,65 MM		1
36	60170574	355 350 0124	GEAR & BUSH ASSY 28 T.	(11)	1
36	60200260	355 350 1415	GEAR & BUSH ASSY 28 T.	(11)	1
37	60170575	355 353 0950	BUSH 64X60X50 MM		1
38	60170576	355 350 0128	DIFFERENTIAL SPIDER	(9)	1
38	60200243	653 353 0020	DIFFERENTIAL SPIDER	(10)	1
39	60170156	355 353 0214	DIFF. PINION 10 T.	(9)	4
39	60200242	653 353 0014	DIFF. PINION 10 T.	(10)	4
40	60170577	355 353 0176	THRUST WASHER		4
41	60170578	355 353 0026	GROOVED NUT	(9)	1
41	60200241	355 353 0126	GROOVED NUT M48X1,5	(10)	1
42	60170579	355 353 1050	BUSH 49X44X35 MM		1
43	60170580	355 353 0215	SIDE GEAR 16 T.-22 SPL.		1
44	60200179	355 353 2262	THRUST WASHER T.2,35 MM		1
44	60200177	355 353 2362	THRUST WASHER T.2,60 MM		1
44	60200182	355 353 2062	THRUST WASHER T.3,65 MM		1
45	60170582	355 350 1827	DIFFERENTIAL CASE EMPTY		1
47	98170053	944 350 0149	BEARING 55X120X45,5 MM		1
48	60200103	070852 055000	GROOVED NUT		1
49	60200340	070952 055102	LOCK RING		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
50	98170193	002 981 8125	BEARING 55X100X21 MM		1
51	60171089	017 997 2747	OIL SEAL 68X90X10/9,5 MM		1
52	60171090	017 997 2647	OIL SEAL 68X90X10 MM		1
53	60170916	355 353 0225	GROOVED NUT M102X1,5		1
54	60170925	355 353 0135	DRIVE SHAFT W/FLAN.L=334		1
54	60170926	385 353 0335	DRIVE SHAFT W/FLAN.L=333		1
54	60200032	355 353 0735	DRIVE SHAFT W/FLAN.L=345	(2,4)	1
54	60200342	385 353 0835	DRIVE SHAFT W/FLAN.L=345	(1,3)	1
55	60171144	001 545 5709	SWITCH		1
56		007603 018401	SPACER		1
57		304017 008028	SCREW		3
57		000931 008278	SCREW		3
58	60170425	346 353 0655	CYLINDER		1
59	60171150	346 353 0155	CYLINDER		1
60	60171920	355 353 0280	GASKET		1
61	60171919	355 353 0380	GASKET		1
62		346 353 0408	COVER		1
63	56170224	346 353 0357	PISTON		1
64	56170348	001 997 2245	SEAL RING		1
65		304035 010000	NUT		1
66		000551 010020	STUD BOLT M10X25		1
67	60200425	346 353 0535	PIN		1
68	60170740	355 353 0234	DIFFERENTIAL FORK		1
68	60170922	355 353 1334	DIFFERENTIAL FORK		1
69		346 993 0901	SPRING		1
70		355 350 0011	COUPLING SLEEVE		1
71		346 335 0073	RETAINER		1
72	60200461	355 353 0408	COVER		1
73	60200460	355 353 0107	PINION HOLDER CASE		1
74	60171072	355 353 0158	SEAL RING 75/82X28/31		1
75	60171079	355 997 0010	PIN 25X46 MM		1
76	60171202	355 353 0152	SHIM 0,10 MM		1
76	56170347	355 353 0252	SHIM 0,15 MM		1
76	60171216	355 353 0552	SHIM 0,50 MM		1
76		355 353 0652	SHIM 1,00 MM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
76		355 353 0752	SHIM 1,50 MM		1
77	60200317	355 350 4603	DIFF.CASE FOR CWP	(13)	1	NSS
77	60200422	387 350 0020	DIFF.CASE FOR CWP W/PLUG		1
78		355 350 0055	PIN		1
79	60170965	355 357 0801	DRIVE SHAFT D.LOCK L=1090	(7)	1
79	60171151	659 357 1101	DRIVE SHAFT D.LOCK L=1103	(8)	1
80	60170964	355 357 0701	DRIVE SHAFT L=1090,00 MM	(7)	1
80	60200429	307 357 0001	DRIVE SHAFT L=1100,00 MM	(15)	1
80	60171153	659 357 1001	DRIVE SHAFT L=1103 MM	(8)	1
81	60170628	*****	BUSH		4
82	60170732	*****	DIFFERENTIAL REPAIR KIT		1
