(ABCDEFGH) TO BE COUPLED TOGETHER
(1) UP TO AXLE 972499
(2) FROM AXLE 972500
(3) UP TO AXLE 207323
(4) FROM AXLE 207324
(5) UP TO AXLE 972499
(6) FROM AXLE 972500
(7) UP TO AXLE 207286
(8) FROM AXLE 207287
(9) WE ALTERNATIVELY SUPPLY THE OLD VERSION: 60170092 - 346 354 1109 (FIG.8)
(10) 346 357 1701 (FIG.12) REPLACED BY 658 357 0601 (FIG.12) + 009045 050001 (FIG.6)
(11) WE ONLY SUPPLY THE REINFORCED VERSION WITH LOCKING AND STOP RINGS: 658 357 1501 (FIG.13) + 2 PCS 009045 050001 (FIG.6)
(12) 346 357 1801 (FIG.13) REPLACED BY 658 357 0701 (FIG.13) + 009045 050001 (FIG.6)
(13) 346 357 2901 (FIG.13) REPLACED BY 658 357 0901 (FIG.13) + 009045 050001 (FIG.6)
(14) TO BE ORDER TOGETHER 013 997 9447 (FIG.25)
(15) TO BE ORDER TOGETHER 016 997 5647 (FIG.25)
(16) WITH 346 334 0320 (FIG.31)
(17) WITH 624 356 0020 (FIG.31)
(18) NOT SUPPLIED SEPARATELY, WE SUPPLY THE KIT CONTAINING 5 PCS: 60170735 - 346 350 0654 (FIG.41)
(19) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 355 356 0126 (FIG.11)
(20) 346 334 0320 (FIG.31) REPLACED BY 624 356 0020 (FIG.31) + 650 356 0080 (FIG.33) + 624 997 0032 (FIG.29) + 000 990 6404 (FIG.32)

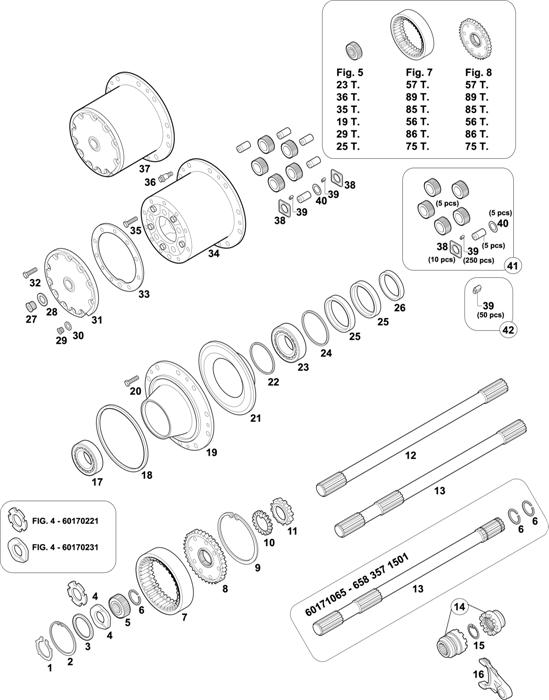

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
8	60200435	355 354 2409	CARRIER HUB 86T.H=66,0 MM	(FG)(6,7)	1
8	60171178	355 354 2709	CARRIER HUB 75T.H=66,0 MM	(H)(8)	1
8	60170956	355 354 1809	CARRIER HUB 56T.H=40,0 MM		1
9	60200029	346 994 0439	LOCK RING		1
10	60170748	355 356 0173	LOCK PLATE		1
11	60200481	942 356 0126	GROOVED NUT		1
11	60171576	942 356 0026	GROOVED NUT M88X1,5	(19)	1
11	60171576	942 356 0026	GROOVED NUT M88X1,5		1
12	60170963	346 357 1701	DRIVE SHAFT L=1092 MM	(10)	1
12	60171609	658 357 0601	DRIVE SHAFT W/OUT D.LOCK		1
12	60200165	346 357 2801	DRIVE SHAFT L=1104 MM	(11)	1
12	60171154	658 357 0801	DRIVE SHAFT L=1108 MM		1
13	60171065	658 357 1501	DRIVE SHAFT D.LOCK L=1108		1
13	60170227	346 357 1801	DRIVE SHAFT D.LOCK L=1092	(12)	1
13	60171197	658 357 0701	DRIVE SHAFT D.LOCK L=1098		1
13	60200164	346 357 2901	DRIVE SHAFT D.LOCK L=1104	(11,13)	1
13	60171198	658 357 0901	DRIVE SHAFT D.LOCK L=1108		1
14	60200113	346 350 0111	DIFF.LOCK KIT		1
15		352 994 0039	ELASTIC RING		1
16	60170741	346 353 0234	DIFFERENTIAL FORK		1
17		004 981 2105	BEARING		1
17		003 981 4505	BEARING		1
18	60171584	027 997 2248	O-RING 255X5		1
19	60171191	346 356 2401	WHEEL HUB		1
20	60171608	000 401 3771	SCREW		10
21		355 356 0882	OIL COLLECTOR		1
22		346 356 0082	OIL COLLECTOR		1
23	98170061	004 981 0905	BEARING 110X170X47 MM		1
24	60171192	946 356 0127	WASHER		1
25	60171606	016 997 5647	OIL SEAL 145X175X14/12	(14)	2
25		013 997 9447	SEAL RING 145X175X13 MM	(15)	2
26	60200099	346 356 1415	THRUST WASHER		1
27	60171247	355 997 0232	PLUG		1
28		007603 045100	OIL SEAL 45X52 MM		1
29	60531367	210 997 0132	PLUG M24X1,5	(16)	1
