SchemaEuroricambi

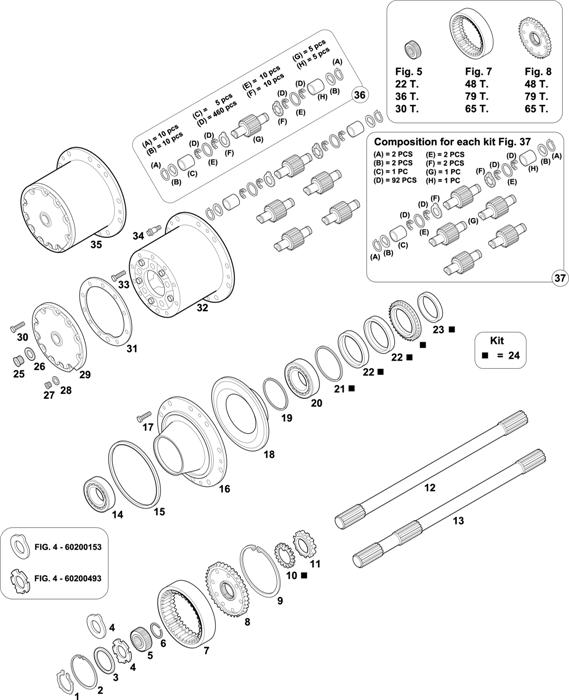

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1		000983 040000	LOCK RING		1
2		000472 108000	LOCK RING		1
3		346 354 0552	SPACER T.0,10 MM		1
3		346 354 0352	SPACER T.0,50 MM		1
3		346 354 0252	SPACER T.1,00 MM		1
4	60200153	346 354 0762	THRUST WASHER	(ABC)(1,2,3)	1
4	60200493	346 354 1762	THRUST WASHER	(D)(4)	1	NSS
5	60200441	355 354 1217	SUN GEAR 22 T.-34 SPL.	(1)	1
5	60200443	355 354 2417	SUN GEAR 36 T.	(2,3)	1
5	60171199	355 354 3017	SUN GEAR 30 T.	(4)	1
6	60171499	009045 042001	LOCK RING		1
7	60200311	346 354 1112	OUTSIDE GEAR 48 T.	(5)	1
7	60170958	346 354 1312	OUTSIDE GEAR 48T.H=104 MM	(A)(1)	1
7	60200162	346 354 2812	OUTSIDE GEAR 79T.H=104 MM	(BC)(2,3)	1
7	60171077	346 354 3212	OUTSIDE GEAR 65T.H=104 MM	(D)(4)	1
8	60200046	346 354 2409	CARRIER HUB 48T.H=28,0 MM	(6)	1
8	60200094	346 354 2809	CARRIER HUB 48T.H=28,0 MM	(A)(1)	1
8	60200444	346 354 5109	CARRIER HUB 79T.H=28,0 MM	(BC)(2,3)	1
8	60200494	346 354 7409	CARRIER HUB 65T.H=28,0 MM	(D)(4)	1
9	60200029	346 994 0439	LOCK RING		1
10	60200035	346 356 0073	LOCK PLATE		1
11	60200481	942 356 0126	GROOVED NUT		1
11	60171576	942 356 0026	GROOVED NUT M88X1,5	(11)	1
11	60171576	942 356 0026	GROOVED NUT M88X1,5		1
12	60200429	307 357 0001	DRIVE SHAFT L=1100,00 MM	(15)	1
12	60171153	659 357 1001	DRIVE SHAFT L=1103 MM		1
13	60200430	307 357 0101	DRIVE SHAFT D.LOCK L=1100	(16)	1
13	60171151	659 357 1101	DRIVE SHAFT D.LOCK L=1103		1
14		000720 032019	BEARING		1
15	60171584	027 997 2248	O-RING 255X5		1
16	60171585	346 356 2501	WHEEL HUB		1
17		381 401 0671	SCREW		10
17	60171608	000 401 3771	SCREW		10
18		355 356 0182	OIL COLLECTOR		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
19		355 356 0082	OIL COLLECTOR		1
20	98170188	003 981 2605	BEARING		1
21	60171192	946 356 0127	WASHER		1
22	60171606	016 997 5647	OIL SEAL 145X175X14/12	(7)	2
22		013 997 9447	SEAL RING 145X175X13 MM	(8)	2
23	60170635	355 356 1215	THRUST WASHER		1
24		942 350 3835	REPAIR KIT		1
25	60171247	355 997 0232	PLUG		1
26		007603 045100	OIL SEAL 45X52 MM		1
27	60531367	210 997 0132	PLUG M24X1,5	(9)	1
27		624 997 0032	PLUG	(10)	1
28	95534377	007603 024106	SEAL RING 24X29X2 MM		1
29		346 334 0320	COVER	(12)	1
29	60171137	624 356 0020	COVER		1
30		000933 010164	SCREW M10X22	(9)	10
30		000 990 6404	SCREW M10X18	(10)	10
31	60171580	650 356 0180	GASKET		1
31		650 356 0080	GASKET		1
32	60200082	*****	HUB EMPTY	(A)(1)	1	NSS
32	60200082	*****	HUB EMPTY	(BC)(2,3)	1	NSS
32	60171317	346 350 7633	WHEEL HUB EMPTY	(D)(4)	1
33	60171604	005 990 6104	SCREW TCEIM12X1,5X32CL8,8		5
34	60170791	942 990 0214	SCREW M14X1,5X60-CL10.9		5	NSS
35	60200088	346 350 1109	HUB COMPLETE R.1:3,182	(A)(1)	1
35	60200442	346 350 2209	HUB COMPLETE R.1:3,194	(BC)(2,3)	1
35	60171162	346 350 4309	HUB COMPLETE R.1:3,167	(D)(4)	1
36	60200053	*****	REPAIR KIT (5 KITS)	(A)(1,13)	1
36	60200183	*****	REPAIR KIT (5 KITS)	(BC)(2,3,13)	1
37	60200472	388 350 0154	DIFFERENTIAL REPAIR KIT	(D)(4,14)	5

(ABCD) TO BE COUPLED TOGETHER
(1) UP TO AXLE 972499
(2) FROM AXLE 972500
(3) UP TO AXLE 207698
(4) FROM AXLE 207699
(5) 346 354 1112 (FIG.7) REPLACED BY 346 354 1312 (FIG.7) + 346 354 2809 (FIG.8) + 346 994 0439 (FIG.9)
(6) 346 354 2409 (FIG.8) REPLACED BY 346 354 2809 (FIG.8) + 346 354 1312 (FIG.7) + 346 994 0439 (FIG.9)
(7) TO BE ORDER TOGETHER 013 997 9447 (FIG.22)
(8) TO BE ORDER TOGETHER 016 997 5647 (FIG.22)
(9) WITH 346 334 0320 (FIG.29)
(10) WITH 624 356 0020 (FIG.29)
(11) WE ALTERNATIVELY SUPPLY THE OLD VERSION, INTERCHANGEABLE: 355 356 0126 (FIG.11)
(12) 346 334 0320 (FIG.29) REPLACED BY 624 356 0020 (FIG.29) + 650 356 0080 (FIG.31) + 624 997 0032 (FIG.27) + 000 990 6404 (FIG.30)
(13) EACH ITEM /PACKAGE INCLUDES 5 KITS
(14) MULTI PACKAGING: MINIMUM 5 KITS
(15) 307 357 0001 (FIG.12) REPLACED BY 1 PC 659 357 1001 (FIG.12) + 009045 042001 (FIG.6)
(16) 307 357 0101 (FIG.13) REPLACED BY 1 PC 659 357 1101 (FIG.13) + 009045 042001 (FIG.6)
