(1) FROM GEARBOX 050225
(2) COLUMN 2: EXCLUDED SERIES 715.100-101-102-103-111-113
(3) FROM GEARBOX 000368
(4) COLUMN 4: EXCLUDED SERIES 714.626-670-674
(5) COLUMN 2: FOR SERIES 715.100-101-111-113
(6) COLUMN 4: FOR SERIES 714.626-670-674
(7) COLUMN 2: FOR SERIES 715.102-103
(8) COLUMN 8: EXCLUDED SERIES 714.671
(9) UP TO GEARBOX 000516
(10) COLUMN 8: FOR SERIE 714.668
(11) FROM GEARBOX 000517
(12) FROM GEARBOX 313287
(13) COLUMN 2: EXCLUDED SERIES 715.102-103-111-113
(14) FROM GEARBOX 198563
(15) FROM GEARBOX 113730
(16) UP TO GEARBOX 113729
(17) COLUMN 7: EXCLUDED SERIE 714.622
(18) COLUMN 7: EXCLUDED SERIE 714.623
(19) UP TO GEARBOX 348399
(20) FROM GEARBOX 348400
(21) FROM GEARBOX 355347
(22) COLUMN 4: EXCLUDED SERIES 714.664-670-674
(23) COLUMN 4: ONLY FOR SERIES 714.664-670-674
(24) COLUMN 7: FOR SERIE 714.622
(25) COLUMN 8: FOR SERIE 714.623
(26) COLUMN 2: EXCLUDED SERIE 715.103
(27) COLUMN 2: FOR SERIE 715.103
(28) FROM GEARBOX 233300
(29) UP TO GEARBOX 355346
(30) UP TO GEARBOX 124518
(31) FROM GEARBOX 124519
(32) FROM GEARBOX 002149
(33) COLUMN 8: FOR SERIE 714.669
(34) COLUMN 8: FOR SERIE 714.671-675
(35) COLUMN 3: EXCLUDED SERIE 714.606
(36) FROM GEARBOX 103983
(37) COLUMN 3: FOR SERIE 714.606
(38) COLUMN 4: EXCLUDED SERIE 714.674
(39) COLUMN 4: FOR SERIE 714.620
(40) COLUMN 2: EXCLUDED SERIES 714.600-601-610-617
(41) COLUMN 4: EXCLUDED SERIES 714.620-626-664-670-674
(42) UP TO GEARBOX 068013
(43) FROM GEARBOX 068014
(44) COLUMN 4: EXCLUDED SERIES 714.670-674
(45) COLUMN 6: FOR SERIE 714.605
(46) COLUMN 2: FOR SERIES 714.600-610-617
(47) COLUMN 8: EXCLUDED SERIE 714.669
(48) COLUMN 6: EXCLUDED SERIE 714.605
(49) COLUMN 8: FOR SERIE 714.675
(50) COLUMN 2: FOR SERIE 714.601
(51) COLUMN 4: FOR SERIES 714.626-664-670-674
(52) UP TO GEARBOX 153191
(53) FROM GEARBOX 153192
(54) UP TO GEARBOX 086594
(55) FROM GAERBOX 086595
(56) ALTERNATIVE VERSION. DIFFERENT FROM 60530517 - 387 262 0523 FOR THE DIFFERENT MANUFACTURE
(57) FOR SERIE 714.667

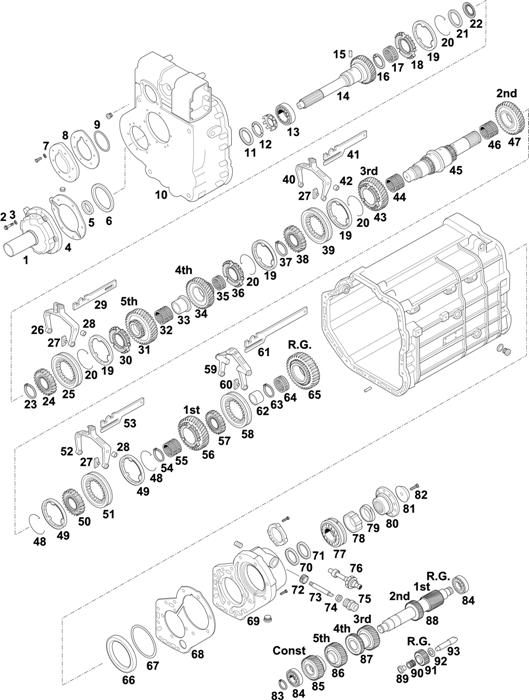

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	60531197	387 261 2218	COVER	(1,2,4)	1
1		389 261 0018	COVER	(5,6)	1
1		387 261 2918	COVER	(7)	1
1		387 261 2318	COVER	(8)	1
2		914141 008309	SCREW		6
3	60531239	000137 008212	SPACER		6
4		387 261 4480	GASKET		1
5		007 997 9647	OIL SEAL	(2,4,9,10)	1
5	60530992	015 997 0347	OIL SEAL 46X64X8 MM	(2,3,4,11)	1
5		015 997 1647	OIL SEAL	(5,6,7)	1
6		387 262 1152	SHIM 1,50 MM		1
6		387 262 1552	SHIM 1,40 MM		1
6		387 262 2552	SHIM 1,35 MM		1
6		387 262 0452	SHIM 1,30 MM		1
6		387 262 2452	SHIM 1,25 MM		1
6		387 262 0352	SHIM 1,20 MM		1
6		387 262 2352	SHIM 1,15 MM		1
6		387 262 0252	SHIM 1,10 MM		1
6		387 262 0152	SHIM 1,00 MM		1
7	60531181	389 261 1933	ALUMINIUM COVER		1
8		387 261 4580	GASKET		1
9		387 263 2252	SHIM 1,00 MM		1
9	60532174	406 337 0552	SHIM 0,50 MM		1
9	60532173	406 337 0352	SHIM 0,20 MM		1
9	60532171	406 337 0252	SHIM 0,10 MM		1
10		387 261 0508	FRONT GEARBOX HOUSING	(12)	1
10		387 261 7402	FRONT GEARBOX HOUSING		1
11		387 262 0273	LOCK RING	(13)	1
11		387 262 0073	LOCK RING	(7)	1
12		389 262 0830	SPLIT RING T.4,45 MM	(14)	1
12		387 262 5130	SPLIT RING T.4,40 MM	(14)	1
12		387 262 5030	SPLIT RING T.4,31 MM	(14)	1
12		387 262 1230	SPLIT RING T.4,27 MM	(14)	1
12		387 262 4930	SPLIT RING T.4,22 MM	(14)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
12		387 262 1330	SPLIT RING T.4,17 MM	(14)	1
12		387 262 4830	SPLIT RING T.4,12 MM	(14)	1
12		387 262 1430	SPLIT RING T.4,07 MM	(14)	1
12		387 262 4730	SPLIT RING T.4,02 MM	(14)	1
12		387 262 1530	SPLIT RING T.3,97 MM	(14)	1
12		387 262 4630	SPLIT RING T.3,93 MM	(14)	1
12		389 262 0830	SPLIT RING T.4,45 MM	(5)	1
12		387 262 5130	SPLIT RING T.4,40 MM	(5)	1
12		387 262 5030	SPLIT RING T.4,31 MM	(5)	1
12		387 262 1230	SPLIT RING T.4,27 MM	(5)	1
12		387 262 4930	SPLIT RING T.4,22 MM	(5)	1
12		387 262 1330	SPLIT RING T.4,17 MM	(5)	1
12		387 262 4830	SPLIT RING T.4,12 MM	(5)	1
12		387 262 1430	SPLIT RING T.4,07 MM	(5)	1
12		387 262 4730	SPLIT RING T.4,02 MM	(5)	1
12		387 262 1530	SPLIT RING T.3,97 MM	(5)	1
12		387 262 4630	SPLIT RING T.3,93 MM	(5)	1
13	98530202	008 981 5201	BEARING 65X140X33 MM		1
14	60530550	387 262 4202	INPUT SHAFT 20 T.	(2)	1
14		387 262 7202	INPUT SHAFT	(5)	1
14		387 262 6402	INPUT SHAFT	(7)	1
14	60530492	387 262 4302	INPUT SHAFT 25 T.		1
14		387 262 4402	INPUT SHAFT	(4)	1
14		387 262 6702	INPUT SHAFT	(6)	1
14		387 262 6302	INPUT SHAFT		1
14	60530552	387 262 4502	INPUT SHAFT 25 T.		1
14	60530043	387 262 6202	INPUT SHAFT 25 T.		1
15		007346 005015	LOCK PIN		1
16		000471 040002	LOCK RING		1
17	98530203	002 981 1312	BEARING 40X67X31,5 MM		1
18	60530504	387 262 5034	SYNCHRONIZER CONE		1
18	60530510	387 262 5134	SYNCHRONIZER CONE		1
19	60530518	389 262 0637	SYNCHRONIZER RING		4
20	60530991	387 262 1093	ELASTIC RING		4
21		387 262 2952	SPACER T.0,70 MM	(2,15)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
21		387 262 4452	SPACER T.0,60 MM	(2,15)	1
21		387 262 4252	SPACER T.0,50 MM	(2,15)	1
21		387 262 1952	SPACER T.0,50 MM	(16)	1
21		387 262 4052	SPACER T.0,40 MM	(2,15)	1
21		387 262 2952	SPACER T.0,70 MM	(5,7)	1
21		387 262 4452	SPACER T.0,60 MM	(5,7)	1
21		387 262 4252	SPACER T.0,50 MM	(5,7)	1
21		387 262 4052	SPACER T.0,40 MM	(5,7)	1
22		387 262 1352	RING		1
23		387 262 5273	SEEGER RING T.3,10 MM		1
23		387 262 5073	SEEGER RING T.3,00 MM		1
23		387 262 4873	SEEGER RING T.2,90 MM		1
24	60530611	387 262 2135	SYNCHRONIZER HUB		1
25	60530806	387 262 1423	SLIDING SLEEVE	(20)	1
25	60530811	387 262 1523	SLIDING SLEEVE	(19,56)	1
25	60530811	387 262 1523	SLIDING SLEEVE	(21,22,24,25,56)	1
25	60530517	387 262 0523	SLIDING SLEEVE	(17,18,23)	1
25	60530811	387 262 1523	SLIDING SLEEVE	(17,18,23,56)	1
26		387 260 2630	SHIFT FORK 5TH/6TH	(26)	1
26		387 265 1902	SHIFT FORK 5TH/6TH	(27)	1
27	60530695	389 265 2349	SLIDING BLOCK		6
28		220 981 1710	BEARING		4
29		389 265 9505	TIE ROD	(26)	1
29		679 265 1005	TIE ROD	(27)	1
29		389 265 4405	TIE ROD		1
29		389 265 7105	TIE ROD		1
30	60530679	389 262 5634	SYNCHRONIZER CONE		1
31	60530581	387 262 2015	GEAR 5TH SPEED 22 T.	(28)	1
31	60530494	387 262 2215	GEAR 5TH SPEED 27 T.		1
31	60530713	387 262 2315	GEAR 5TH SPEED 22 T.	(28)	1
31	60530714	387 262 2515	GEAR 5TH SPEED 27 T.	(28)	1
32	98530130	009 981 1410	NEEDLE BEARING 75X83X48		1
32	98530110	019 981 4410	NEEDLE BEARING 75X83X55 W		1
33	60531082	387 262 0550	BUSH T.54,00 MM		1
33	60531081	387 262 0150	BUSH T.61,00 MM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
34	60530579	387 262 3514	GEAR 4TH SPEED 24 T.		1
34	60530496	387 262 3714	GEAR 4TH SPEED 30 T.		1
34	60530501	387 262 3814	GEAR 4TH SPEED 24 T.		1
34	60530081	387 262 4014	GEAR 4TH SPEED 30 T.	(24)	1
34		387 262 3914	GEAR 4TH SPEED	(17)	1
35	98530121	009 981 1510	NEEDLE BEARING 78X86X35 W		1
35	98530196	008 981 9910	NEEDLE BEARING 78X86X40		1
36	60530709	387 262 4534	SYNCHRONIZER CONE	(19)	1
36	60530814	387 262 4834	SYNCHRONIZER CONE	(20)	1
36	60530709	387 262 4534	SYNCHRONIZER CONE	(29)	1
36	60530814	387 262 4834	SYNCHRONIZER CONE	(21)	1
37		387 262 4673	SEEGER RING T.3,15 MM		1
37		387 262 4573	SEEGER RING T.3,10 MM		1
37	60531795	387 262 4373	SEEGER RING T.3,00 MM		1
37		387 262 4173	SEEGER RING T.2,90 MM		1
38	60530610	387 262 2035	SYNCHRONIZER HUB		1
39	60530517	387 262 0523	SLIDING SLEEVE		1
39	60530811	387 262 1523	SLIDING SLEEVE	(19,56)	1
39	60530806	387 262 1423	SLIDING SLEEVE	(20)	1
39	60530811	387 262 1523	SLIDING SLEEVE	(17,18,23,56)	1
39	60530811	387 262 1523	SLIDING SLEEVE	(22,24,25,29,55,56)	1
39	60530806	387 262 1423	SLIDING SLEEVE	(21,22,24,25)	1
40		387 260 0630	FORK		1
41		389 265 8705	TIE ROD	(26)	1
41		679 265 0605	TIE ROD	(27)	1
41		389 265 4605	TIE ROD		1
42		220 981 1710	BEARING		2
43	60530576	387 262 1813	GEAR 3RD SPEED 30 T.	(19)	1
43		387 262 4413	GEAR 3RD SPEED	(20)	1
43	60530497	387 262 3813	GEAR 3RD SPEED 35 T.	(19)	1
43		387 262 4913	GEAR 3RD SPEED	(20)	1
43	60530502	387 262 0813	GEAR 3RD SPEED 30 T.	(19)	1
43	60530861	387 262 5313	GEAR 3RD SPEED 30 T.	(20)	1
43	60530861	387 262 5313	GEAR 3RD SPEED 30 T.		1
43	60530577	387 262 3713	GEAR 3RD SPEED 35 T.	(29)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
43		387 262 4813	GEAR 3RD SPEED	(21)	1
44	98530206	009 981 1710	NEEDLE BEARING 92X100X44W		1
44	98530207	008 981 8610	NEEDLE BEAR. 92X100X49,5		1
45	60530562	387 262 2105	MAIN SHAFT	(2,30)	1
45	60530710	387 262 2405	MAIN SHAFT	(2,31)	1
45	60530710	387 262 2405	MAIN SHAFT	(5,7)	1
45	60530561	387 262 2005	MAIN SHAFT	(32)	1
46	98530330	009 981 1810	NEEDLE BEARING 102X110X46		1
46	98530208	008 981 9710	NEEDLE BEARING 102X110X50		1
47	60530572	387 262 0812	GEAR 2ND SPEED 38 T.	(19)	1
47		387 262 3412	GEAR 2ND SPEED	(20)	1
47	60530696	387 262 2712	GEAR 2ND SPEED 42 T.	(19)	1
47		387 262 3912	GEAR 2ND SPEED	(20)	1
47	60530570	387 262 0212	GEAR 2ND SPEED 38 T.	(29)	1
47		387 262 3212	GEAR 2ND SPEED	(21)	1
47		387 262 3212	GEAR 2ND SPEED		1
47	60530573	387 262 2612	GEAR 2ND SPEED 42 T.	(29)	1
47	60530042	387 262 3812	GEAR 2ND SPEED 42 T.	(21)	1
48	60531030	387 262 0893	ELASTIC RING		2
49	60530684	389 262 0737	SYNCHRONIZER RING		2
50		387 262 2735	SYNCHRONIZER HUB	(19)	1
50		387 262 3335	SYNCHRONIZER HUB	(20)	1
50	60530606	387 262 0435	SYNCHRONIZER HUB	(19)	1
50	60530843	387 262 3435	SYNCHRONIZER HUB	(20)	1
50	60530606	387 262 0435	SYNCHRONIZER HUB	(29)	1
50	60530843	387 262 3435	SYNCHRONIZER HUB	(21)	1
50		387 262 3335	SYNCHRONIZER HUB		1
51	60530587	387 262 0623	SLIDING SLEEVE	(19)	1
51	60530802	387 262 1323	SLIDING SLEEVE	(20)	1
52		387 260 4630	FORK		1
53		389 265 8805	TIE ROD	(26)	1
53		679 265 0505	TIE ROD	(27)	1
53		389 265 4705	TIE ROD		1
54		387 262 3873	SEEGER RING T.3,10 MM		1
54		387 262 3673	SEEGER RING T.3,00 MM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
74		011 997 6447	SEAL RING	(2,4,24,25,35,45)	1
75		321 261 0031	SENDER UNIT SPEEDOMETER	(2,4,24,25,35,45)	1
76	60532141	015 542 2417	TRANSDUCER	(2,8,38,43)	1
77	98530183	008 981 5301	BEARING 65X140X39 MM		1
78		387 260 0650	PULSE DISK	(47)	1
79		387 264 0030	SPEEDOMETER GEAR	(2,10,25,44)	1
80		387 262 0145	OUTPUT FLANGE Ø 150 MM	(24,35,45,46)	1
80		387 262 0745	OUTPUT FLANGE Ø 165 MM	(25,39,49,50)	1
80		387 262 1045	OUTPUT FLANGE D.150	(37,40,51)	1
80		387 262 1045	OUTPUT FLANGE D.150	(17,48)	1
80		387 262 0645	OUTPUT FLANGE	(41)	1
81		976 262 0362	WASHER		1
82		387 990 2219	SCREW		1
83	60531521	387 994 0341	SEEGER RING T.2,90 MM		1
83	60531520	387 994 0541	SEEGER RING T.2,85 MM		1
83	60531519	387 994 0741	SEEGER RING T.2,75 MM		1
83	60531518	387 994 0941	SEEGER RING T.2,60 MM		1
83	60531517	387 994 1141	SEEGER RING T.2,55 MM		1
83	95530517	387 994 1341	SEEGER RING T.2,40 MM		1
83		900055 050300	SEEGER RING T.3,00 MM	(5,7)	1
83		387 994 1441	SEEGER RING T.2,40 MM	(5,7)	1
83	60531516	387 994 1541	SEEGER RING T.2,35 MM	(5,7)	1
83		387 994 1641	SEEGER RING T.2,25 MM	(5,7)	1
84	98530185	009 981 3105	BEARING 50X100X33,5 MM		2
85	60530637	387 263 1510	CONSTANT GEAR 43 T.		1
85	60530493	387 263 2510	CONSTANT GEAR 44 T.		1
85	60530491	387 263 1810	CONSTANT GEAR 43 T.		1
85	60530638	387 263 2410	CONSTANT GEAR 44 T.		1
86	60530646	387 263 0215	GEAR 5TH SPEED 34 T.		1
86	60530495	387 263 0815	GEAR 5TH SPEED 38 T.		1
86	60530500	387 263 0015	GEAR 5TH SPEED 34 T.		1
86	60530647	387 263 0715	GEAR 5TH SPEED 38 T.		1
87	60530641	387 263 0613	DBL GEAR 3RD/4TH 25/21 T.		1
87	60530498	387 263 1213	DBL GEAR 3RD/4TH 31/24 T.		1
87	60530643	387 263 1113	DBL GEAR 3RD/4TH 31/24 T.		1
