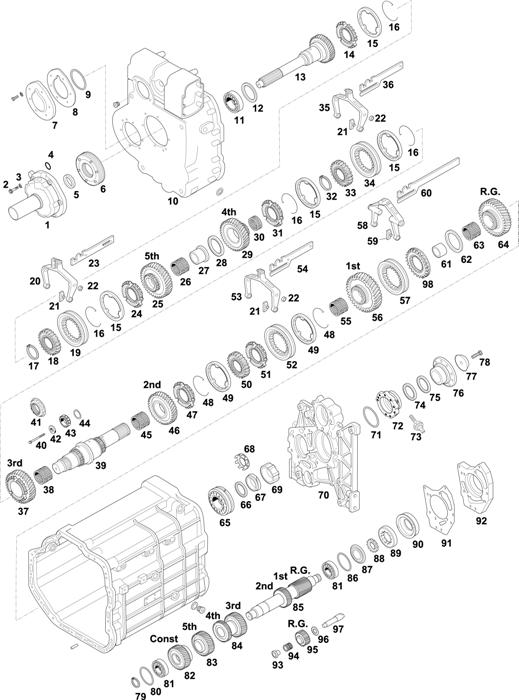

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	60531778	389 261 4318	COVER		1
2		914141 008309	SCREW		6
3	60531239	000137 008212	SPACER		6
4	60531647	028 997 2348	O-RING 100X3	(1)	1
5	60530993	015 997 1647	OIL SEAL 52X68X8 MM		1
6	60531122	389 261 0665	OIL COLLECTOR 75X16	(1)	1
7	60531181	389 261 1933	ALUMINIUM COVER		1
8		387 261 4580	GASKET		1
9		387 263 2252	SHIM 1,00 MM		1
9	60532174	406 337 0552	SHIM 0,50 MM		1
9	60532173	406 337 0352	SHIM 0,20 MM		1
9	60532171	406 337 0252	SHIM 0,10 MM		1
10		389 261 9902	FRONT GEARBOX HOUSING		1
11	98530179	011 981 1305	BEARING 75X140X34,3 MM		1
12	60531394	017 997 9947	OIL SEAL 75X94X11,50 MM		1
13	60530892	389 262 3102	INPUT SHAFT 26 T.		1
14	60530126	389 262 1134	SYNCHRONIZER CONE	(A)	1
14	60531159	389 262 8534	SYNCHRONIZER CONE	(B)	1
15	60530518	389 262 0637	SYNCHRONIZER RING		4
16	60530991	387 262 1093	ELASTIC RING		4
17		000471 040002	LOCK RING		1
18	60530089	389 262 1935	SYNCHRONIZER HUB	(A)	1
18	60531099	389 262 4535	SYNCHRONIZER HUB	(B)	1
19	60530693	945 262 2823	SLIDING SLEEVE	(A)	1
19	60531165	389 262 2023	SLIDING SLEEVE	(B)	1
20		389 260 4130	SHIFT FORK 5TH/6TH		1
21	60530890	947 265 0349	SLIDING BLOCK		6
22		220 981 1710	BEARING		6
23		389 265 9904	TIE ROD 5TH/6TH		1
24	60530767	945 262 4034	SYNCHRONIZER CONE	(A)	1
24	60531680	945 262 5134	SYNCHRONIZER CONE	(B)	1
25	60531918	389 262 1215	GEAR 5TH SPEED 30 T.		1
26	98530389	011 981 7610	NEEDLE BEARING 75X83X58		1
27	60531083	389 262 0650	BUSH T.58,00 MM		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
28	60531562	389 262 9052	WASHER		1
29	60531893	389 262 0814	GEAR 4TH SPEED 35 T.		1
30	98530121	009 981 1510	NEEDLE BEARING 78X86X35 W		1
31	60530203	389 262 5434	SYNCHRONIZER CONE	(A)	1
31	60531927	945 262 5034	SYNCHRONIZER CONE	(B)	1
32		387 262 4673	SEEGER RING T.3,15 MM	(5)	1
32	60531794	389 262 0573	SEEGER RING T.3,10 MM	(4)	1
32		387 262 4573	SEEGER RING T.3,10 MM	(5)	1
32		389 262 0373	SEEGER RING T.3,00 MM	(4)	1
32	60531795	387 262 4373	SEEGER RING T.3,00 MM	(5)	1
32		389 262 0173	SEEGER RING T.2,90 MM	(4)	1
32		387 262 4173	SEEGER RING T.2,90 MM	(5)	1
33	60530766	389 262 2735	SYNCHRONIZER HUB	(A)	1
33	60531168	389 262 4435	SYNCHRONIZER HUB	(B)	1
34	60530693	945 262 2823	SLIDING SLEEVE	(A)	1
34	60531165	389 262 2023	SLIDING SLEEVE	(B)	1
35		389 260 3930	SHIFT FORK 3RD/4TH		1
36		389 265 7604	TIE ROD 3RD/4TH		1
37	60530294	389 262 2713	GEAR 3RD SPEED 47 T.	(A)(20)	1
37	60531609	976 262 1113	GEAR 3RD 47 T.W/OUT HOLES	(A)(21)	1
37	60531164	389 262 4013	GEAR 3RD SPEED 47 T.	(B)	1
38	98530207	008 981 8610	NEEDLE BEAR. 92X100X49,5		1
39	60530296	389 262 1705	MAIN SHAFT	(6)	1
39	60532156	389 262 4405	MAIN SHAFT	(8)	1
40	60531170	389 990 1819	SCREW	(6)	1
41	60531472	945 990 0250	NUT M30X1,5	(8)	1
42	60531171	389 262 0062	WASHER	(6)	1
42		389 262 1562	WASHER	(7)	1
43	98530327	009 981 8205	BEARING	(6)	1
43	98530204	015 981 1605	BEARING 39,7X40,4 MM		1
44		389 262 9255	SPACER T.1,50 MM	(7)	1
44		389 262 9352	SPACER T.0.15 MM	(6)	1
44		389 262 1055	SPACER T.0.15 MM	(6)	1
44		389 262 9252	SPACER T.0.10 MM	(6)	1
45	98530207	008 981 8610	NEEDLE BEAR. 92X100X49,5		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
46	60530317	389 262 3312	GEAR 2ND SPEED 45 T.		1
47	60530521	945 262 0434	SYNCHRONIZER CONE	(C)	1
47	60531669	945 262 4934	SYNCHRONIZER CONE	(D)	1
48	60531030	387 262 0893	ELASTIC RING		2
49	60530684	389 262 0737	SYNCHRONIZER RING		2
50	60530319	389 262 1135	SYNCHRONIZER HUB	(C)	1
50	60531167	389 262 5635	SYNCHRONIZER HUB	(D)	1
51	60530521	945 262 0434	SYNCHRONIZER CONE	(C)	1
51	60531668	945 262 4834	SYNCHRONIZER CONE	(D)	1
52	60530694	945 262 2723	SLIDING SLEEVE	(C)	1
52	60531166	389 262 2123	SLIDING SLEEVE	(D)	1
53		387 260 4730	SHIFT FORK 1ST/2ND		1
54		389 265 7504	TIE ROD 1ST/2ND		1
55	98530214	021 981 9410	NEEDLE BEARING 85X93X45 W		1
56	60530450	389 262 1911	GEAR 1ST SPEED 50 T.		1
57	60530777	389 262 1723	SLIDING SLEEVE	(10)	1
57	60530776	389 262 1823	SLIDING SLEEVE	(11)	1
58		656 260 0230	REVERSE FORK		1
59	60531852	947 265 0249	SLIDE		2
60		389 260 2831	REVERSE TIE ROD		1
61		389 262 0950	BUSH	(6)	1
61		389 262 1350	BUSH	(7)	1
62		389 262 8952	SPACER		1
63	98530214	021 981 9410	NEEDLE BEARING 85X93X45 W		1
64	60530765	389 262 1333	REVERSE GEAR 47 T.		1
65	98530328	009 981 8305	BEARING	(6)	1
65	98530329	012 981 3705	BEARING 65X140X13,5 MM	(7)	1
66		389 262 8354	SPACER	(12)	1
67		387 264 0030	SPEEDOMETER GEAR	(13)	1
68	60531387	387 262 0828	PULSE DISK		1
69		387 262 0928	PULSE DISK		1
70		387 261 7420	HOUSING	(12)	1
70		387 261 6320	HOUSING	(15)	1
71	60531435	028 997 2248	O-RING 140X3	(16)	1
71	60532211	020 997 7848	O-RING 138X3	(16)	1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
72		389 261 1520	HOUSING COVER	(16)	1
73	60532141	015 542 2417	TRANSDUCER	(16)	1
74	60531354	017 997 2547	OIL SEAL 80X100X10 MM	(16)	1
75	60531355	017 997 7947	OIL SEAL 80X100X10 MM	(16)	1
76		387 262 1045	OUTPUT FLANGE D.150	(4,6)	1
76		976 262 0145	OUTPUT FLANGE Ø 150 MM	(4,7,14)	1
76		387 264 3345	OUTPUT FLANGE Ø 180 MM	(17)	1
76		387 264 3245	OUTPUT FLANGE Ø 180 MM	(15)	1
77		389 411 0062	WASHER	(18)	1
77		976 262 0362	WASHER	(19)	1
78	60531476	389 990 0119	SCREW	(18)	1
78		387 990 2219	SCREW	(19)	1
79		900055 050300	SEEGER RING T.3,00 MM		1
79	60531521	387 994 0341	SEEGER RING T.2,90 MM		1
79	60531520	387 994 0541	SEEGER RING T.2,85 MM		1
79	60531519	387 994 0741	SEEGER RING T.2,75 MM		1
79	60531518	387 994 0941	SEEGER RING T.2,60 MM		1
79	60531517	387 994 1141	SEEGER RING T.2,55 MM		1
79	95530517	387 994 1341	SEEGER RING T.2,40 MM		1
79		387 994 1441	SEEGER RING T.2,40 MM		1
79	60531516	387 994 1541	SEEGER RING T.2,35 MM		1
79		387 994 1641	SEEGER RING T.2,25 MM		1
79		387 262 2773	SEEGER RING T.2,00 MM		1
80		389 263 1452	SPACER T.0,15 MM		1
80		389 263 1352	SPACER T.0,10 MM		1
81	98530107	015 981 9005	BEARING 50,8X100X35 MM		2
82	60530455	389 263 1310	CONSTANT GEAR		1
83	60530574	389 263 0115	GEAR 5TH SPEED 47 T.		1
84	60530893	389 263 2113	DBL GEAR 3RD/4TH 38/33 T.		1
85	60530762	389 263 1102	COUNTERSHAFT 12/19 T.		1
86	60531453	389 262 2454	SPACER T.0,70 MM		1
86	60532104	389 262 2254	SPACER T.0,60 MM		1
86	60531454	389 262 2054	SPACER T.0,50 MM		1
86	60531325	389 262 4452	SPACER T.0,40 MM		1
86	60532173	406 337 0352	SHIM 0,20 MM		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
86		406 337 2952	SPACER T.0,15 MM		1
86	60532171	406 337 0252	SHIM 0,10 MM		1
87	60531759	389 269 2001	PUMP COVER		1
88	60531118	389 269 1606	ROTOR INNER 9 T.		1
89	60531063	389 269 0706	ROTOR EST.		1
90	60531802	389 269 2101	OIL PUMP		1
91		389 261 1580	GASKET		1
92		656 261 0133	COVER		1
93	60531985	389 263 0650	BUSH		1
94		015 981 4110	NEEDLE BEARING		1
95	60530763	389 263 0931	REVERSE GEAR 21 T.		1
96		389 263 0162	WASHER		1
97	60532182	976 263 0330	REVERSE PIN		1
98	60532181	389 262 4235	SYNCHRONIZER HUB	(11)	1

(ABCD) TO BE COUPLED TOGETHER
(1) FOR SERIES 714.690-691
(4) ONLY FOR SERIES 714.690-691-699
(5) ONLY FOR SERIES 714.696-697-698
(6) UP TO GEARBOX 372851
(7) FROM GEARBOX 372852
(8) FROM GEARBOX 513020
(10) EXCLUDED SERIE 714.691
(11) FOR SERIE 714.691
(12) ONLY FOR SERIE 714.697-699
(13) ONLY FOR SERIE 714.699
(14) ONLY FOR SERIE 714.697
(15) ONLY FOR SERIE 714.698
(16) EXCLUDED SERIES 714.697-699
(17) ONLY FOR SERIE 714.696
(18) UP TO GEARBOX 003984
(19) FROM GEARBOX 003985
(20) WITH HOLES
(21) WITHOUT HOLES
