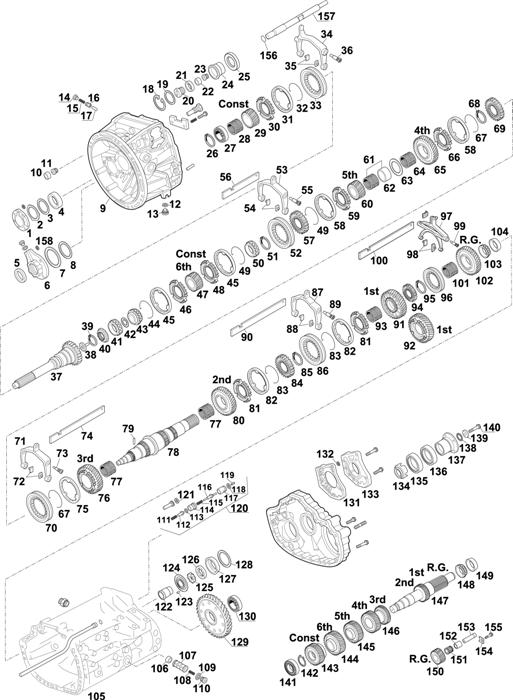

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1		976 261 1133	COVER	(1)	1
1	60532316	976 261 1833	COVER	(2)	1
2	60531397	022 997 4048	O-RING 103X2	(1)	1
2	60531647	028 997 2348	O-RING 100X3	(2)	1
3		389 263 7352	SPACER T.1,00 MM		1
3		389 263 7152	SPACER T.0,94 MM		1
3	60532051	389 263 6352	SPACER T.0,70 MM		1
3	60532260	389 263 5952	SPACER T.0,58 MM		1
3	60532261	389 263 5752	SPACER T.0,52 MM		1
3	60532262	389 263 5552	SPACER T.0,46 MM		1
4		945 264 0051	WASHER		1
5	60530993	015 997 1647	OIL SEAL 52X68X8 MM		1
6		976 261 0218	COVER		1
7	60531435	028 997 2248	O-RING 140X3		1
7	60532211	020 997 7848	O-RING 138X3		1
8	60531954	389 262 4055	WASHER T.0,55 MM		1
8	60532018	389 262 3955	WASHER T.0,52 MM		1
8	60532017	389 262 3855	WASHER T.0,49 MM		1
8	60531434	389 262 3555	WASHER T.0,40 MM		1
9		976 260 0023	HOUSING	(2)	1
10	60531179	387 267 0650	BUSH 34X22X8 MM		1
11	60531180	000 267 0197	OIL SEAL 22X32X8 MM		1
12	60532248	007603 024105	WASHER		1	NSS
13	60531366	210 997 0032	PLUG		1
14		000908 016008	PLUG		1
15	60531365	387 993 4501	SPRING 6,2X63,0 MM		1
16	60531364	387 993 4401	SPRING 9,8X63,3 MM		1
17	60530734	389 267 1174	PIN		1
18		006 994 4241	LOCK RING		1
19	60531446	389 262 3352	SPACER T.2,50 MM		1
19	60531693	389 262 3252	SPACER T.2,00 MM		1
19	60531848	389 262 2052	SPACER T.1,40 MM		1
19	60531849	389 262 3554	SPACER T.1,20 MM		1
19	60531479	389 262 3254	SPACER T.1,05 MM		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
19	60531850	389 262 2555	SPACER T.0,70 MM		1
20	60531340	945 267 0218	PISTON		1
21	60531359	006 997 6447	OIL SEAL 38,5X41X11,5 MM		1
22	60531179	387 267 0650	BUSH 34X22X8 MM		1
23	60531180	000 267 0197	OIL SEAL 22X32X8 MM		1
24	60531792	945 267 0819	CYLINDER		1
24		945 267 0619	CYLINDER		1
25	60531399	022 997 4248	O-RING 55,6X3		1
25		016 997 6648	SEAL RING		1
26		976 262 3673	LOCK RING T.2,50 MM		1
26		976 262 3473	LOCK RING T.2,40 MM		1
26		976 262 0373	LOCK RING T.2,10 MM		1
26		976 262 0173	LOCK RING T.2,00 MM		1
27	98530266	014 981 3905	BEARING 57,15X140X28,18		1
28		017 981 4510	NEEDLE BEARING 75X67X37		1
29	60531622	976 262 0210	CONSTANT GEAR 26 T.		1
30	60530126	389 262 1134	SYNCHRONIZER CONE		1
31	60530518	389 262 0637	SYNCHRONIZER RING		1
32	60530991	387 262 1093	ELASTIC RING		1
33	60530693	945 262 2823	SLIDING SLEEVE		1
34	60531898	945 265 0001	SPLITTER SHIFT FORK		1
35	60530890	947 265 0349	SLIDING BLOCK		2
36		945 262 1974	PIN		2
37	60531623	976 262 2101	INPUT SHAFT 60 T.		1
37	60531818	976 262 2501	INPUT SHAFT 73 T.		1
38	60531682	976 269 0034	TUBE		1
39	60531683	000 994 9841	SEEGER RING		1
40	60531630	976 990 0050	NUT	(3)	1
40	60532115	976 990 0150	NUT	(4)	1
41	98531223	012 981 2805	NEEDLE BEARING 32X29,5 MM		1
42		976 262 5152	WASHER T.1,50 MM		1
42		976 262 5052	WASHER T.1,47 MM		1
42		976 262 2952	WASHER T.0,84 MM		1
42		976 262 2852	WASHER T.0,81 MM		1
43	98530269	013 981 0305	NEEDLE BEAR.38,1X29,77 MM		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
44	60530991	387 262 1093	ELASTIC RING		1
45	60530518	389 262 0637	SYNCHRONIZER RING		2
46	60531624	976 262 2834	SYNCHRONIZER CONE 60 T.		1
47	60531570	976 262 1510	CONSTANT GEAR 6TH 23 T.		1
48	60531624	976 262 2834	SYNCHRONIZER CONE 60 T.		1
49	60530991	387 262 1093	ELASTIC RING		2
50	98530268	013 981 0405	BEARING 45,98X18 MM		1
51		976 262 0773	LOCK RING T.2,30 MM		1
51		976 262 0573	LOCK RING T.2,20 MM		1
51		976 262 0473	LOCK RING T.2,15 MM		1
52	60530693	945 262 2823	SLIDING SLEEVE		1
53		976 260 0530	SHIFT FORK 5TH/6TH		1
54	60530890	947 265 0349	SLIDING BLOCK		2
55	60531671	945 265 2774	PIN	(7)	2
56		976 265 0804	SELECTOR ROD 5TH/6TH		1
57	60530089	389 262 1935	SYNCHRONIZER HUB		1
58	60530518	389 262 0637	SYNCHRONIZER RING		2
59	60530767	945 262 4034	SYNCHRONIZER CONE		1
60	60531625	976 262 1515	GEAR 5TH SPEED 28 T.		1
61	98530267	001 981 6212	NEEDLE BEARING 63X78X52		1
62	60531629	976 262 0350	BUSH 70X63X52 MM		1	NSS
63		976 262 0052	SHIM 100X63X6		1
64	98530121	009 981 1510	NEEDLE BEARING 78X86X35 W		1
65	60531893	389 262 0814	GEAR 4TH SPEED 35 T.		1
66	60530203	389 262 5434	SYNCHRONIZER CONE		1
67	60530991	387 262 1093	ELASTIC RING		2
68		389 262 1473	SEEGER RING T.3,30 MM		1
68		389 262 1273	SEEGER RING T.3,20 MM		1
68	60531794	389 262 0573	SEEGER RING T.3,10 MM		1
69	60530766	389 262 2735	SYNCHRONIZER HUB		1
70	60530693	945 262 2823	SLIDING SLEEVE		1
71		976 260 0230	SHIFT FORK 3RD/4TH		1
72	60530890	947 265 0349	SLIDING BLOCK		2
73	60531671	945 265 2774	PIN		2
74		976 265 0204	TIE ROD 3RD/4TH		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
75	60530518	389 262 0637	SYNCHRONIZER RING		1
76	60531609	976 262 1113	GEAR 3RD 47 T.W/OUT HOLES		1
77	98530207	008 981 8610	NEEDLE BEAR. 92X100X49,5		2
78	60531571	976 262 2105	MAIN SHAFT	(4)	1
79		001481 013007	PIN		1
80	60531572	976 262 1612	GEAR 2ND SPEED 45 T.		1
81	60530521	945 262 0434	SYNCHRONIZER CONE		2
82	60530684	389 262 0737	SYNCHRONIZER RING		2
83	60531030	387 262 0893	ELASTIC RING		2
84	60530319	389 262 1135	SYNCHRONIZER HUB		1
85	60531795	387 262 4373	SEEGER RING T.3,00 MM		1
85		387 262 4173	SEEGER RING T.2,90 MM		1
86	60530694	945 262 2723	SLIDING SLEEVE		1
87		976 260 0830	SHIFT FORK 1ST/2ND		1
88	60530890	947 265 0349	SLIDING BLOCK		2
89	60531671	945 265 2774	PIN		2
90		976 265 0304	TIE ROD 1ST/2ND		1
91	60531573	976 262 1211	GEAR 1ST SPEED 50 T.		1
92		976 262 0011	GEAR 1ST SPEED		1
93	98530200	010 981 4810	NEEDLE BEARING 85X93X40 W		1
94	60531626	976 262 0335	HUB 37 T.		1
95		387 262 6573	SEEGER RING T.2,60 MM		1
95	60531796	387 262 6373	SEEGER RING T.2,50 MM		1
95		387 262 6173	SEEGER RING T.2,40 MM		1
96	60530777	389 262 1723	SLIDING SLEEVE		1
97		976 260 0030	REVERSE FORK		1
98	60531852	947 265 0249	SLIDE		2
99	60531671	945 265 2774	PIN		2
100		976 265 0404	REVERSE TIE ROD		1
101	98531230	945 981 0010	NEEDLE BEARING 75X83X48		1
102	60531808	976 262 1333	REVERSE GEAR 47 T.		1
103	98531224	002 981 4581	BEARING 65X31 MM		1
104	60531631	001 981 9680	CONE 135 MM		1
105		976 261 3703	HOUSING		1
106		389 261 0050	BUSH		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
107		389 269 0321	OIL NET		1
108		389 993 2101	SPRING		1
109		007603 038105	SEAL RING 38X46		1
110		389 997 0132	PLUG M38X1,5		1
111	60532056	389 993 5301	SPRING		1	NSS
112	60532057	389 269 0926	VALVE		1	NSS
113	60531376	013 997 0148	O-RING 13,3X2,4		1	NSS
114	60532059	389 269 0744	ELEMENT VALVE		1	NSS
115	60532055	389 993 4401	SPRING		1	NSS
116	60532058	389 269 0826	VALVE		1	NSS
117	60532060	389 269 0844	BUSH		1	NSS
118	60531374	013 997 0048	O-RING 19,2X3		1
119	60532061	001481 004049	PIN		1	NSS
120	60531806	655 260 0157	REPAIR KIT		1
121	60531374	013 997 0048	O-RING 19,2X3		1
122		976 269 0110	OIL PUMP SHAFT		1
122		976 269 0010	OIL PUMP SHAFT		1
123		389 261 0674	PIN		1
124	60531759	389 269 2001	PUMP COVER		1
125	60531118	389 269 1606	ROTOR INNER 9 T.		1
126	60531063	389 269 0706	ROTOR EST.		1
127	60531802	389 269 2101	OIL PUMP		1
128		389 263 1452	SPACER T.0,15 MM		1
128		389 263 1352	SPACER T.0,10 MM		1
129		976 264 0030	RETARDER GEAR		1
130	98530188	008 981 3025	BEARING 80X150X28 MM		1
131	60531193	945 261 0080	SHEET GASKET		1
132	60531377	015 997 4048	O-RING 5X3		1
133		656 261 0133	COVER		1
134		387 262 0928	PULSE DISK		1
135	60531354	017 997 2547	OIL SEAL 80X100X10 MM		1
136	60531355	017 997 7947	OIL SEAL 80X100X10 MM		1
136	60532114	023 997 8847	OIL SEAL 80X100X15,5 MM		1
137		976 262 0145	OUTPUT FLANGE Ø 150 MM	(5)	1
137		947 262 0345	OUTPUT FLANGE Ø 150 MM	(6)	1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
138		027 997 3048	SEAL RING		1
139		976 262 0362	WASHER		1
140		000000 000963	SCREW M20X80		1
141	98530107	015 981 9005	BEARING 50,8X100X35 MM		1
142	60532315	900055 060300	SEEGER RING		1	NSS
143	60531576	976 263 0810	CONSTANT GEAR 51 T.		1
144	60531575	976 263 0710	GEAR 6TH SPEED 55 T.		1
145	60531574	976 263 0215	GEAR 5TH SPEED 45 T.		1
146	60530893	389 263 2113	DBL GEAR 3RD/4TH 38/33 T.		1
147	60531627	976 263 0402	COUNTERSHAFT 12/19 T.		1
148	98531225	002 981 4681	NEEDLE BEARING 45X30 MM		1
149	60531632	001 981 9780	CONE 108 MM		1
150	60531775	976 263 0031	REVERSE GEAR 21 T.		1
151		017 981 7510	NEEDLE BEARING		1
152		976 263 0050	BUSH		1
153	60531074	976 263 0030	REVERSE PIN		1
154		976 263 0041	KEY		1
155		304017 010040	SCREW		1
156		387 263 3052	WASHER T.1,00 MM		1
156		387 263 2852	WASHER T.0,60 MM		1
156		387 263 2752	WASHER T.0,40 MM		1
156	60531443	387 263 2652	WASHER T.0,20 MM		1
157		976 267 0317	CONTROL ROD		1
158	60531389	019 997 8348	O-RING 14X4		1

(1) UP TO GEARBOX 000157
(2) FROM GEARBOX 000158
(3) UP TO GEARBOX 026813
(4) FROM GEARBOX 026814
(5) UP TO GEARBOX 002157
(6) FROM GEARBOX 002158
(7) FROM GEARBOX 000132
