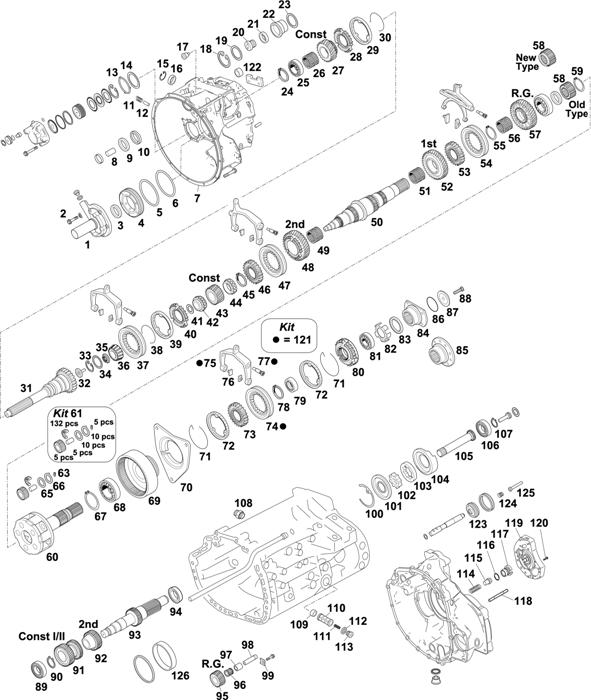

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1		947 261 2218	COVER		1
2		000000 000631	SCREW M8X35		6
3	60531388	019 997 0547	OIL SEAL 56X72X8 MM		1
4	60531122	389 261 0665	OIL COLLECTOR 75X16		1
5	60531435	028 997 2248	O-RING 140X3		1
5	60532211	020 997 7848	O-RING 138X3		1
6		389 262 5955	WASHER T.1,12 MM		1
6		389 262 5855	WASHER T.1,09 MM		1
6		389 262 5755	WASHER T.1,06 MM		1
6		389 262 5655	WASHER T.1,03 MM		1
6		389 262 5555	WASHER T.1,00 MM		1
6		389 262 5455	WASHER T.0,97 MM		1
6		389 262 5355	WASHER T.0,94 MM		1
6		389 262 5255	WASHER T.0,91 MM		1
6		389 262 5155	WASHER T.0,88 MM		1
6		389 262 5055	WASHER T.0,85 MM		1
6		389 262 4955	WASHER T.0,82 MM		1
6		389 262 4855	WASHER T.0,79 MM		1
6		389 262 4755	WASHER T.0,76 MM		1
6		389 262 4655	WASHER T.0,73 MM		1
6		389 262 4555	WASHER T.0,70 MM		1
6		389 262 4455	WASHER T.0,67 MM		1
6		389 262 4355	WASHER T.0,64 MM		1
6		389 262 4255	WASHER T.0,61 MM		1
6		389 262 4155	WASHER T.0,58 MM		1
6	60531954	389 262 4055	WASHER T.0,55 MM		1
6	60532018	389 262 3955	WASHER T.0,52 MM		1
6	60532017	389 262 3855	WASHER T.0,49 MM		1
6	60532016	389 262 3755	WASHER T.0,46 MM		1
6	60532015	389 262 3655	WASHER T.0,43 MM		1
6	60531434	389 262 3555	WASHER T.0,40 MM		1
6	60532014	389 262 3455	WASHER T.0,37 MM		1
6	60532013	389 262 3355	WASHER T.0,34 MM		1
6	60532012	389 262 3255	WASHER T.0,31 MM		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
6	60532011	389 262 3155	WASHER T.0,28 MM		1
6	60531433	389 262 3055	WASHER T.0,25 MM		1
7		947 260 6111	GEARBOX HOUSING		1
8		711 261 0043	TUBE		2
9	60531179	387 267 0650	BUSH 34X22X8 MM		1
10	60531180	000 267 0197	OIL SEAL 22X32X8 MM		1
11	60532055	389 993 4401	SPRING		1	NSS
12	60530734	389 267 1174	PIN		1
13	60531647	028 997 2348	O-RING 100X3		1
14		389 263 8952	SPACER T.2,00 MM		1
14		389 263 8652	SPACER T.1,39 MM		1
14		389 263 8552	SPACER T.1,36 MM		1
14		389 263 8452	SPACER T.1,33 MM		1
14		389 263 8352	SPACER T.1,30 MM		1
14		389 263 8252	SPACER T.1,27 MM		1
14		389 263 8152	SPACER T.1,24 MM		1
14		389 263 8052	SPACER T.1,21 MM		1
14		389 263 7952	SPACER T.1,18 MM		1
14		389 263 7852	SPACER T.1,15 MM		1
14		389 263 7752	SPACER T.1,12 MM		1
14		389 263 7652	SPACER T.1,09 MM		1
14		389 263 7552	SPACER T.1,06 MM		1
14		389 263 7452	SPACER T.1,03 MM		1
14		389 263 7352	SPACER T.1,00 MM		1
14		389 263 7252	SPACER T.0,97 MM		1
14		389 263 7152	SPACER T.0,94 MM		1
14		389 263 7052	SPACER T.0,91 MM		1
14		389 263 6952	SPACER T.0,88 MM		1
14		389 263 6852	SPACER T.0,85 MM		1
14		389 263 6752	SPACER T.0,82 MM		1
14		389 263 6652	SPACER T.0,79 MM		1
14		389 263 6552	SPACER T.0,76 MM		1
14		389 263 6452	SPACER T.0,73 MM		1
14	60532051	389 263 6352	SPACER T.0,70 MM		1
14		389 263 6252	SPACER T.0,67 MM		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
14	60532259	389 263 6152	SPACER T.0,64 MM		1
14		389 263 6052	SPACER T.0,61 MM		1
14	60532260	389 263 5952	SPACER T.0,58 MM		1
14		389 263 5852	SPACER T.0,55 MM		1
14	60532261	389 263 5752	SPACER T.0,52 MM		1
14		389 263 5652	SPACER T.0,49 MM		1
14	60532262	389 263 5552	SPACER T.0,46 MM		1
14		389 263 5452	SPACER T.0,43 MM		1
14	60532263	389 263 5352	SPACER T.0,40 MM		1
14		389 263 5252	SPACER T.0,37 MM		1
15	60531946	945 267 0073	SEEGER RING		1	NSS
16	98531262	002 981 5712	NEEDLE BEARING 25X39X20		1	NSS
17	60531941	947 268 0039	SCREW		1	NSS
18		006 994 4241	LOCK RING		1
19	60531446	389 262 3352	SPACER T.2,50 MM		1
19	60531693	389 262 3252	SPACER T.2,00 MM		1
19	60531848	389 262 2052	SPACER T.1,40 MM		1
19	60531849	389 262 3554	SPACER T.1,20 MM		1
19	60531698	389 262 3354	SPACER T.1,10 MM		1
19	60531479	389 262 3254	SPACER T.1,05 MM		1
19		389 262 2655	SPACER T.0,90 MM		1
19	60531850	389 262 2555	SPACER T.0,70 MM		1
20	60531340	945 267 0218	PISTON		1
21	60531359	006 997 6447	OIL SEAL 38,5X41X11,5 MM		1
22	60531792	945 267 0819	CYLINDER		1
23	60531399	022 997 4248	O-RING 55,6X3		1
24	60532292	387 262 9373	SEEGER RING T.3,50 MM		1
24		387 262 9273	SEEGER RING T.3,45 MM		1
24		387 262 9173	SEEGER RING T.3,40 MM		1
24	60532291	387 262 9073	SEEGER RING T.3,35 MM		1
24		387 262 8973	SEEGER RING T.3,30 MM		1
24		387 262 8873	SEEGER RING T.3,25 MM		1
24	60532290	387 262 8773	SEEGER RING T.3,20 MM		1
24	60531438	387 262 8673	SEEGER RING T.3,15 MM		1
25	98530179	011 981 1305	BEARING 75X140X34,3 MM		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
26	98530439	022 981 2110	NEEDLE BEARING 84X90X48		1
27		947 262 3510	CONSTANT GEAR		1
28	60531895	945 262 3634	SYNCHRONIZER CONE		1
29	60532242	947 260 0545	SYNCHRONIZER RING		1
30	60530991	387 262 1093	ELASTIC RING		1
31		947 262 3502	INPUT SHAFT		1
32	60531682	976 269 0034	TUBE		1
33	60531683	000 994 9841	SEEGER RING		1
34	60531343	000 262 8662	OIL SEAL 73,5X101X7 MM		1
35	60531472	945 990 0250	NUT M30X1,5		1
36	98530280	017 981 1305	NEEDLE BEAR.39,69X40,39MM		1
37	60531897	945 262 6823	SLIDING SLEEVE		1
38	60530991	387 262 1093	ELASTIC RING		1
39	60532242	947 260 0545	SYNCHRONIZER RING		1
40	60530203	389 262 5434	SYNCHRONIZER CONE		1
41	60531446	389 262 3352	SPACER T.2,50 MM		1
41	60531693	389 262 3252	SPACER T.2,00 MM		1
41	60531993	389 262 3152	SPACER T.1,95 MM		1
41	60531694	389 262 3052	SPACER T.1,90 MM		1
41	60532107	389 262 2952	SPACER T.1,85 MM		1
41	60532105	389 262 2455	SPACER T.1,82 MM		1
41	60531500	389 262 2355	SPACER T.1,80 MM		1
41	60532103	389 262 2255	SPACER T.1,76 MM		1
41	60532026	389 262 2155	SPACER T.1,73 MM		1
41	60532102	389 262 2055	SPACER T.1,67 MM		1
41	60532101	389 262 1955	SPACER T.1,64 MM		1
41		389 262 1855	SPACER T.1,61 MM		1
41		389 262 1755	SPACER T.1,58 MM		1
41	60531997	389 262 2352	SPACER T.1,55 MM		1
41	60531695	389 262 1555	SPACER T.1,49 MM		1
41		389 262 1455	SPACER T.1,46 MM		1
41		389 262 1355	SPACER T.1,43 MM		1
41	60531848	389 262 2052	SPACER T.1,40 MM		1
41	60531696	389 262 1952	SPACER T.1,35 MM		1
41	60532028	389 262 3654	SPACER T.1,25 MM		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
41	60531849	389 262 3554	SPACER T.1,20 MM		1
41	60531697	389 262 3454	SPACER T.1,15 MM		1
41	60531698	389 262 3354	SPACER T.1,10 MM		1
41	60531479	389 262 3254	SPACER T.1,05 MM		1
41	60531478	389 262 2854	SPACER T.0,50 MM		1
42	98530250	015 981 7605	BEARING 50X41 MM		1
43	60532159	947 262 0117	CONSTANT GEAR 34 T.		1
44	98530217	014 981 1605	NEEDLE BEARING 55X23 MM	(1,3)	1	NSS
44	98530098	011 981 7705	BEARING 55X90X23 MM		1
44	98530438	017 981 8305	NEEDLE BEARING 52X24 MM	(2)	1
45		387 262 7873	SEEGER RING T.2,80 MM		1
45		387 262 7773	SEEGER RING T.2,75 MM		1
45	60532092	387 262 7673	SEEGER RING T.2,70 MM		1
45	60531436	387 262 0973	SEEGER RING T.2,65 MM		1
45	60531503	387 262 0873	SEEGER RING T.2,60 MM		1
46	60532158	947 262 1435	SYNCHRONIZER HUB		1
47	60532087	947 262 1123	SLIDING SLEEVE		1
48	60532162	947 262 2012	GEAR 2ND SPEED 38 T.		1
49	98530110	019 981 4410	NEEDLE BEARING 75X83X55 W		1
50	60532305	947 262 1705	MAIN SHAFT		1
50	60532184	947 262 1505	MAIN SHAFT	(4)	1
50	60532163	947 262 1605	MAIN SHAFT	(2)	1
51	98530323	013 981 1210	NEEDLE BEARING 75X83X33 W		1
52		947 262 5310	GEAR 1ST		1
53	60532158	947 262 1435	SYNCHRONIZER HUB		1
54	60532087	947 262 1123	SLIDING SLEEVE		1
55		387 262 7873	SEEGER RING T.2,80 MM		1
55		387 262 7773	SEEGER RING T.2,75 MM		1
55	60532092	387 262 7673	SEEGER RING T.2,70 MM		1
55	60531436	387 262 0973	SEEGER RING T.2,65 MM		1
55	60531503	387 262 0873	SEEGER RING T.2,60 MM		1
56		022 981 2310	NEEDLE BEARING		1
57		947 262 1933	REVERSE GEAR		1
58	60532009	947 262 1209	SUN GEAR 25 T.	OLD TYPE	1
58	60532155	947 262 1609	SUN GEAR 25 T.	NEW TYPE	1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
59		000000 003241	SEEGER RING		1
60	60532005	947 260 6361	PLANET CARRIER EMPTY		1
61	60532007	947 260 0197	REPAIR KIT		1
63	60530982	000914 006109	LOCKPIN 6X14 MM		5
65	60530984	389 262 0162	SPACER		10
66	60531103	389 262 1162	WASHER		10
67	60531511	000472 130000	SEEGER RING		1
68	98530108	008 981 1325	BEARING 90X130X14 MM		1
69	60532006	947 262 2508	CROWN 85 T		1
70	60531932	947 260 0736	FOLLOWER RING		1
71	60531059	389 262 0293	ELASTIC RING		2
72	60532241	947 260 3045	SYNCHRONIZER RING	(5)	2
72	60531765	MO 947 260 3045	SYNCHRONIZER RING	(6)	2
73	60530730	389 262 4935	SYNCHRONIZER HUB		1
74	60531820	945 262 6923	SLIDING SLEEVE		1
75	60531819	947 265 1901	SPLITTER SHIFT FORK		1
76	60530890	947 265 0349	SLIDING BLOCK		2
77	60531671	945 265 2774	PIN		2
78	60531512	000471 120000	SEEGER RING		1
79		947 262 4052	SPACER		1
80	60532008	947 262 0634	SYNCHRONIZER CONE		1
81	98530440	009 981 3325	BEARING 72X130X25 MM		1
82		947 262 0528	PULSE DISK		1
83		016 997 2045	OIL SEAL		1
84		947 262 1645	FLANGE		1
85		947 260 0117	FLANGE		1
86		013 997 2145	SEAL RING		1
87	60532175	945 262 0762	WASHER 20X93		1	NSS
88	60532143	000000 005728	SCREW M20X1,5X80		1	NSS
89	98530107	015 981 9005	BEARING 50,8X100X35 MM		1
90	60532315	900055 060300	SEEGER RING		1	NSS
91		947 263 2110	DOUBLE GEAR		1
92	60532160	947 263 0312	GEAR 2ND SPEED 23 T.		1
93	60532266	947 263 2402	COUNTERSHAFT		1	NSS
94	98530442	002 981 7781	NEEDLE BEARING 60X34 MM		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
95		947 263 1231	REVERSE GEAR		1
96	98531267	021 981 5610	NEEDLE BEARING 42X50X40		1
97		947 263 0050	BUSH		1
98	60531074	976 263 0030	REVERSE PIN		1
99	60531075	945 263 0041	KEY		1
100		389 262 5154	SPACER T.1,30 MM		1
100		389 262 5254	SPACER T.1,25 MM		1
100		389 262 5354	SPACER T.1,20 MM		1
100		389 262 5454	SPACER T.1,15 MM		1
100		389 262 5554	SPACER T.1,10 MM		1
100		389 262 5654	SPACER T.1,05 MM		1
100		389 262 5754	SPACER T.1,00 MM		1
100	60531525	389 262 5854	SPACER T.0,95 MM		1
100	60531524	389 262 5954	SPACER T.0,90 MM		1
100	60531523	389 262 6354	SPACER T.0,85 MM		1
100	60531522	389 262 6254	SPACER T.0,80 MM		1
101	60531062	945 269 0201	PUMP COVER		1
102	60531064	389 269 1406	ROTOR PUMP		1
103	60531063	389 269 0706	ROTOR EST.		1
104	60531061	947 269 1001	BODY PUMP		1
105	60532120	947 269 1110	OIL PUMP SHAFT		1
106	98530401	008 981 5425	BEARING 17X35X10 MM		1
107	60531550	912009 045100	LOCK RING		1
108		389 997 1572	JOINT		1
109		389 261 0050	BUSH		1
110		389 269 0321	OIL NET		1
111		389 993 2101	SPRING		1
112		007603 042101	SEAL RING 42X49		1
112		007603 042100	SEAL RING 42X49		1
113		000908 042001	PLUG M42X1,5		1
114	60532056	389 993 5301	SPRING		1	NSS
115	60532057	389 269 0926	VALVE		1	NSS
116	60531376	013 997 0148	O-RING 13,3X2,4		1	NSS
117	60532059	389 269 0744	ELEMENT VALVE		1	NSS
118		001 990 4414	SCREW		2

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
119	60531976	945 261 1033	ALUMINIUM COVER		1
120		910105 010011	SCREW M10X40		4
120		910105 010002	SCREW M10X50		8
121	60531821	*****	REPAIR KIT		1
122	60532166	000 992 7603	BUSH		1
123	60532170	930 267 0618	PISTON		1
124	60532168	008 993 0801	SPRING		1
125	60532169	000 543 5785	MAGNETIC PISTON		1
126	98530497	002 981 5280	CONE 110 MM		1

(1) UP TO GEARBOX 573911
(2) FROM GEARBOX 573912
(3) NOT SUPPLIED SEPARATELY, WE SUPPLY THE COMPLETE BEARING: 98530098 - 011 981 7705 (FIG.44)
(4) 947 262 1505 REPLACED BY 1 PC 60532163 - 947 262 1605 (FIG.50) + 60532159 - 947 262 0117 (FIG.43) + 98530438 - 017 981 8305 (FIG.44)
(5) CARBON VERSION
(6) MOLYBDENUM VERSION
