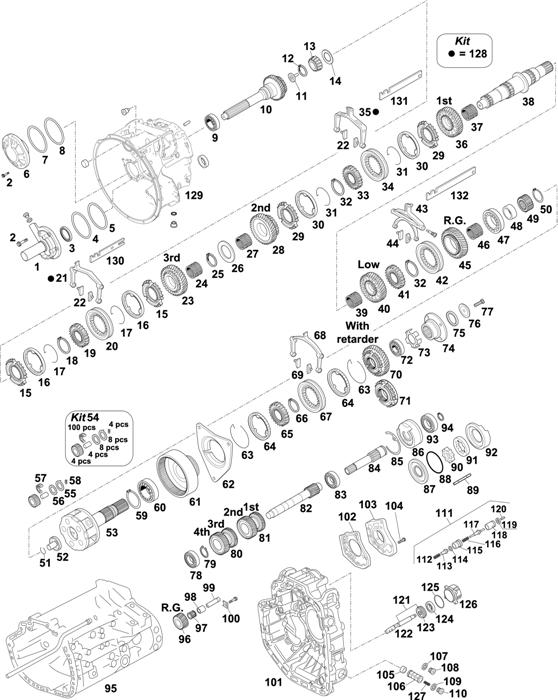

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1		947 261 0518	COVER		1
2		000000 000631	SCREW M8X35		12
3	60531388	019 997 0547	OIL SEAL 56X72X8 MM		1
4		029 997 0448	OIL SEAL 129X135 MM		1
5		947 262 2252	WASHER T.1,17 MM		1
5		947 262 2152	WASHER T.1,14 MM		1
5		947 262 2052	WASHER T.1,11 MM		1
5		947 262 1952	WASHER T.1,08 MM		1
5		947 262 1852	WASHER T.1,05 MM		1
5		947 262 1752	WASHER T.1,02 MM		1
5		947 262 1652	WASHER T.0,99 MM		1
5		947 262 1552	WASHER T.0,96 MM		1
5		947 262 1452	WASHER T.0,93 MM		1
5		947 262 1352	WASHER T.0,90 MM		1
5		947 262 1252	WASHER T.0,87 MM		1
5		947 262 1152	WASHER T.0,84 MM		1
5		947 262 1052	WASHER T.0,81 MM		1
5		947 262 0952	WASHER T.0,78 MM		1
5		947 262 0852	WASHER T.0,75 MM		1
5		947 262 0752	WASHER T.0,72 MM		1
5		947 262 0652	WASHER T.0,69 MM		1
5		947 262 0552	WASHER T.0,66 MM		1
5		947 262 0452	WASHER T.0,63 MM		1
5		947 262 0352	WASHER T.0,60 MM		1
6	60532316	976 261 1833	COVER		1
7	60531647	028 997 2348	O-RING 100X3		1
8		389 263 7652	SPACER T.1,09 MM		1
8		389 263 7552	SPACER T.1,06 MM		1
8		389 263 7452	SPACER T.1,03 MM		1
8		389 263 7352	SPACER T.1,00 MM		1
8		389 263 7252	SPACER T.0,97 MM		1
8		389 263 7152	SPACER T.0,94 MM		1
8		389 263 7052	SPACER T.0,91 MM		1
8		389 263 6952	SPACER T.0,88 MM		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
8		389 263 6852	SPACER T.0,85 MM		1
8		389 263 6752	SPACER T.0,82 MM		1
8		389 263 6652	SPACER T.0,79 MM		1
8		389 263 6552	SPACER T.0,76 MM		1
8		389 263 6452	SPACER T.0,73 MM		1
8	60532051	389 263 6352	SPACER T.0,70 MM		1
8		389 263 6252	SPACER T.0,67 MM		1
8	60532259	389 263 6152	SPACER T.0,64 MM		1
8		389 263 6052	SPACER T.0,61 MM		1
8	60532260	389 263 5952	SPACER T.0,58 MM		1
8		389 263 5852	SPACER T.0,55 MM		1
8	60532261	389 263 5752	SPACER T.0,52 MM		1
8		389 263 5652	SPACER T.0,49 MM		1
8	60532262	389 263 5552	SPACER T.0,46 MM		1
9		016 981 1405	BEARING		1
10	60531921	947 262 0902	INPUT SHAFT 28 T.		1
10	60531870	947 262 1302	INPUT SHAFT 28 T.		1
11	60531682	976 269 0034	TUBE		1
12	60531683	000 994 9841	SEEGER RING		1
13		016 981 0505	NEEDLE BEARING		1
14		000 262 9462	WASHER		1
15	60530767	945 262 4034	SYNCHRONIZER CONE	(1)	2
15	60532034	945 262 5734	SYNCHRONIZER CONE	(2)	2
16	60530518	389 262 0637	SYNCHRONIZER RING	(1)	2
16	60532136	945 260 2245	SYNCHRONIZER RING	(2,3)	2
17	60530991	387 262 1093	ELASTIC RING		2
18		976 262 3673	LOCK RING T.2,50 MM		1
18		976 262 3573	LOCK RING T.2,45 MM		1
18		976 262 3473	LOCK RING T.2,40 MM		1
18		976 262 0873	LOCK RING T.2,35 MM		1
18		976 262 0773	LOCK RING T.2,30 MM		1
18		976 262 0673	LOCK RING T.2,25 MM		1
18		976 262 0573	LOCK RING T.2,20 MM		1
18		976 262 0473	LOCK RING T.2,15 MM		1
18		976 262 0373	LOCK RING T.2,10 MM		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
18		976 262 0273	LOCK RING T.2,05 MM		1
18		976 262 0173	LOCK RING T.2,00 MM		1
19	60531869	947 262 0435	SYNCHRONIZER HUB		1
20	60530693	945 262 2823	SLIDING SLEEVE		1
21	60532152	947 260 2730	FORK		1	NSS
22	60530890	947 265 0349	SLIDING BLOCK		4
23	60531866	947 262 0613	GEAR 3RD SPEED 31 T.		1
24	98530390	019 981 6010	NEEDLE BEARING 60X68X54		1
25		389 262 3973	SEEGER RING T.2,75 MM		1
25		389 262 3873	SEEGER RING T.2,70 MM		1
25		389 262 3773	SEEGER RING T.2,65 MM		1
25		389 262 3673	SEEGER RING T.2,60 MM		1
25		389 262 3573	SEEGER RING T.2,55 MM		1
25		389 262 3473	SEEGER RING T.2,50 MM		1
25		389 262 3373	SEEGER RING T.2,45 MM		1
25		389 262 3273	SEEGER RING T.2,40 MM		1
26	60531926	389 262 1862	SPACER		1
27		021 981 5210	NEEDLE BEARING		1
28	60531879	947 262 0612	GEAR 2ND SPEED 36 T.		1
29	60530203	389 262 5434	SYNCHRONIZER CONE	(1)	2
29	60531895	945 262 3634	SYNCHRONIZER CONE	(2)	2
30	60530518	389 262 0637	SYNCHRONIZER RING	(1)	2
30	60532136	945 260 2245	SYNCHRONIZER RING	(2,3)	2
31	60530991	387 262 1093	ELASTIC RING		2
32		387 262 7873	SEEGER RING T.2,80 MM		2
32		387 262 7773	SEEGER RING T.2,75 MM		2
32	60532092	387 262 7673	SEEGER RING T.2,70 MM		2
32	60531436	387 262 0973	SEEGER RING T.2,65 MM		2
32	60531503	387 262 0873	SEEGER RING T.2,60 MM		2
32	60531474	387 262 0773	SEEGER RING T.2,55 MM		2
32	60531335	387 262 0673	SEEGER RING T.2,50 MM		2
32	60531473	387 262 0573	SEEGER RING T.2,45 MM		2
32	60531334	387 262 0473	SEEGER RING T.2,40 MM		2
33	60531867	947 262 0135	SYNCHRONIZER HUB		1
34	60530693	945 262 2823	SLIDING SLEEVE	(1)	1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
34	60531897	945 262 6823	SLIDING SLEEVE	(2)	1
35	60532153	947 260 2230	FORK		1	NSS
36	60531871	947 262 1911	GEAR 1ST SPEED 40 T.		1
37	98530110	019 981 4410	NEEDLE BEARING 75X83X55 W		1
38	60531865	947 262 0305	MAIN SHAFT		1
39	98530323	013 981 1210	NEEDLE BEARING 75X83X33 W		1
40	60531925	947 262 1811	GEAR LOW 41 T.		1
41		947 262 0735	SYNCHRONIZER HUB		1
42	60531862	945 262 2023	SLIDING SLEEVE		1
43		947 260 2030	REVERSE FORK		1
44		947 265 0649	SLIDING BLOCK		2
45	60532063	947 262 0633	REVERSE GEAR 39 T.		1
46		012 981 5410	NEEDLE BEARING		1
47		016 981 0105	BEARING		1
48		947 262 0152	SPACER		1
49	60531922	947 262 0709	SUN GEAR 30 T.		1
50		000471 050000	LOCK RING		1
51	60531092	000472 060000	SEEGER RING T.2,00 MM		1
52	60531093	945 269 0834	OIL TUBE		1	NSS
53	60532064	947 260 1961	PLANET CARRIER EMPTY		1
54	60531864	947 260 0097	REPAIR KIT		1
55	60531881	947 262 0262	WASHER		8	NSS
56	60530984	389 262 0162	SPACER		8
57	60531880	000 981 6186	ROLLER D.5X32,7		100	NSS
58	60530982	000914 006109	LOCKPIN 6X14 MM		4
59		000472 110000	LOCK RING		1
60		008 981 9525	BEARING		1
61	60532052	947 262 1208	TOOTHED CROWN 80 T.		1
62	60531932	947 260 0736	FOLLOWER RING	(5)	1
63	60531059	389 262 0293	ELASTIC RING		2
64	60531711	945 260 0850	SYNCHRONIZER RING	(4,6)	2
64	60530907	389 262 0537	SYNCHRONIZER RING	(4)	2
64	60532241	947 260 3045	SYNCHRONIZER RING	(5,11)	2
64	60531765	MO 947 260 3045	SYNCHRONIZER RING	(12)	2
65	60530730	389 262 4935	SYNCHRONIZER HUB		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
66	60531512	000471 120000	SEEGER RING		1
67	60531820	945 262 6923	SLIDING SLEEVE		1
68		947 265 2701	SHIFT FORK		1
69	60530890	947 265 0349	SLIDING BLOCK		2
70		947 264 0020	RETARDER GEAR		1
71	60531868	947 262 0334	SYNCHRONIZER CONE		1
72		009 981 0325	BEARING		1
73		387 262 0928	PULSE DISK		1
74		947 262 0345	OUTPUT FLANGE Ø 150 MM		1
74		947 262 0445	OUTPUT FLANGE Ø 180 MM		1
75		027 997 3048	SEAL RING		1
76		976 262 0362	WASHER		1
77		000000 000963	SCREW M20X80		1
78	98530107	015 981 9005	BEARING 50,8X100X35 MM		1
79		000471 058000	LOCK RING		1
80	60531878	947 263 0413	DOUBLE GEAR 32/38 T.	3RD/4TH	1
81	60531883	947 263 0111	DOUBLE GEAR 21/27 T.	1ST/2ND	1
82	60531872	947 263 0702	COUNTERSHAFT 14 T.		1
83		015 981 9705	BEARING		1
84	60532120	947 269 1110	OIL PUMP SHAFT		1
85		389 262 5154	SPACER T.1,30 MM		1
85		389 262 5254	SPACER T.1,25 MM		1
85		389 262 5354	SPACER T.1,20 MM		1
85		389 262 5454	SPACER T.1,15 MM		1
85		389 262 5554	SPACER T.1,10 MM		1
85		389 262 5654	SPACER T.1,05 MM		1
85		389 262 5754	SPACER T.1,00 MM		1
85	60531525	389 262 5854	SPACER T.0,95 MM		1
85	60531524	389 262 5954	SPACER T.0,90 MM		1
85	60531523	389 262 6354	SPACER T.0,85 MM		1
85	60531522	389 262 6254	SPACER T.0,80 MM		1
86		389 260 0790	OIL PUMP	OLD TYPE(7)	1
87	60531062	945 269 0201	PUMP COVER	NEW TYPE	1
88	60531653	029 997 5748	O-RING 113X2,5	NEW TYPE	1
89		001 991 7860	PIN	NEW TYPE	1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
90	60531064	389 269 1406	ROTOR PUMP	NEW TYPE	1
91	60531063	389 269 0706	ROTOR EST.	NEW TYPE	1
92	60531061	947 269 1001	BODY PUMP	NEW TYPE	1
93	98530401	008 981 5425	BEARING 17X35X10 MM		1
94	60531550	912009 045100	LOCK RING		1
95		947 261 2003	GEARBOX HOUSING		1
96	60531873	947 263 0731	REVERSE GEAR 18 T.		1
97	98531267	021 981 5610	NEEDLE BEARING 42X50X40		1
98		947 263 0050	BUSH		1
99	60531074	976 263 0030	REVERSE PIN		1
100	60531075	945 263 0041	KEY		1
101		947 260 3811	GEARBOX HOUSING		1
102	60531857	945 261 0280	SHEET GASKET		1
103	60531976	945 261 1033	ALUMINIUM COVER		1
104		910105 010011	SCREW M10X40		4
104		910105 010002	SCREW M10X50		8
105		389 261 0050	BUSH		1
106		389 269 0321	OIL NET		1
107	95531568	007603 018103	SEAL RING18X24X1,4DIN7603		1
108		000908 018011	PLUG		1
109		007603 038105	SEAL RING 38X46		1
109		007603 042100	SEAL RING 42X49		1
110		389 997 0132	PLUG M38X1,5		1
110		000908 042001	PLUG M42X1,5		1
111	60531806	655 260 0157	REPAIR KIT		1
112	60532056	389 993 5301	SPRING		1	NSS
113	60532057	389 269 0926	VALVE		1	NSS
114	60531376	013 997 0148	O-RING 13,3X2,4		1	NSS
115	60532059	389 269 0744	ELEMENT VALVE		1	NSS
116	60532055	389 993 4401	SPRING		1	NSS
117	60532058	389 269 0826	VALVE		1	NSS
118	60532060	389 269 0844	BUSH		1	NSS
119	60531374	013 997 0048	O-RING 19,2X3		1
120	60532061	001481 004049	PIN		1	NSS
121	60531877	930 260 2589	SELECTOR ROD	(8)	1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
122	60531860	389 267 3517	SELECTOR ROD		1
123	60531317	389 267 1018	PISTON		1
124	60531654	024 997 8347	RING 77X90X17 MM		1
125	60531190	013 997 7548	O-RING 89,5X3		1
126	60532112	945 267 1319	CYLINDER		1
127		389 993 2101	SPRING		1
128	60532151	*****	SHIFT YOKE KIT		1
129		947 260 2011	GEARBOX HOUSING	(9)	1
129		947 260 4811	GEARBOX HOUSING	(10)	1
130		947 265 2904	TIE ROD 3RD/4TH		1
130	60532085	947 265 3004	TIE ROD 3RD/4TH		1
131		947 265 1204	TIE ROD 1ST/2ND		1
131		947 265 1504	TIE ROD 1ST/2ND		1
132		947 265 1904	REV. TIE ROD		1
132		947 265 2004	REV. TIE ROD		1

(1) UP TO GEARBOX 018250
(2) FROM GEARBOX 018251
(3) SUPPLIED WITH THE ELASTIC RING 60530991 - 387 262 1093 (FIG.17/31)
(4) UP TO GEARBOX 001076
(5) FROM GEARBOX 001077
(6) ALTERNATIVE VERSION OF 60530907 - 389 262 0537 (FIG.64), PRODUCED USING A DIFFERENT ANTIFRICTION MATERIAL, BUT PERFECTLY INTERCHANGEABLE
(7) 389 260 0790 (FIG.86) REPLACED BY 1 PC 60531064 - 389 269 1406 (FIG.90) + 1 PC 60531061 - 947 269 1001 (FIG.92) + 1 PC 60531063 - 389 269 0706 (FIG.91) + 1 PC 001 991 7860 (FIG.89)
(8) MULTIPLE REPLACEMENT: 1 PC 60531860 - 389 267 3517 (FIG.122) + 1 PC 60531317 - 389 267 1018 (FIG.123) + 1 PC 60531654 - 024 997 8347 (FIG.124)
(9) ONLY FOR SERIE: 715.570
(10) ONLY FOR SERIES: 715.570 - 576
(11) CARBON VERSION
(12) MOLYBDENUM VERSION
