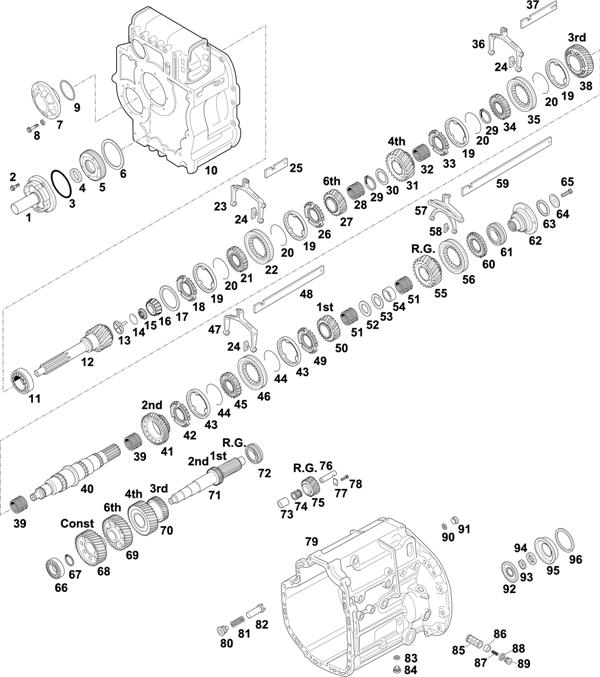

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1		389 261 6618	COVER		1
2		000000 000631	SCREW M8X35		6
3	60531435	028 997 2248	O-RING 140X3		1
3	60532211	020 997 7848	O-RING 138X3		1
4	60531388	019 997 0547	OIL SEAL 56X72X8 MM		1
5	60531122	389 261 0665	OIL COLLECTOR 75X16		1
6		389 262 5955	WASHER T.1,12 MM		1
6		389 262 5855	WASHER T.1,09 MM		1
6		389 262 5755	WASHER T.1,06 MM		1
6		389 262 5655	WASHER T.1,03 MM		1
6		389 262 5555	WASHER T.1,00 MM		1
6		389 262 5455	WASHER T.0,97 MM		1
6		389 262 5355	WASHER T.0,94 MM		1
6		389 262 5255	WASHER T.0,91 MM		1
6		389 262 5155	WASHER T.0,88 MM		1
6		389 262 5055	WASHER T.0,85 MM		1
6		389 262 4955	WASHER T.0,82 MM		1
6		389 262 4855	WASHER T.0,79 MM		1
6		389 262 4755	WASHER T.0,76 MM		1
6		389 262 4655	WASHER T.0,73 MM		1
6		389 262 4555	WASHER T.0,70 MM		1
6		389 262 4455	WASHER T.0,67 MM		1
6		389 262 4355	WASHER T.0,64 MM		1
6		389 262 4255	WASHER T.0,61 MM		1
6		389 262 4155	WASHER T.0,58 MM		1
6	60531954	389 262 4055	WASHER T.0,55 MM		1
6	60532018	389 262 3955	WASHER T.0,52 MM		1
6	60532017	389 262 3855	WASHER T.0,49 MM		1
6	60532016	389 262 3755	WASHER T.0,46 MM		1
6	60532015	389 262 3655	WASHER T.0,43 MM		1
6	60531434	389 262 3555	WASHER T.0,40 MM		1
6	60532014	389 262 3455	WASHER T.0,37 MM		1
6	60532013	389 262 3355	WASHER T.0,34 MM		1
6	60532012	389 262 3255	WASHER T.0,31 MM		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
6	60532011	389 262 3155	WASHER T.0,28 MM		1
6	60531433	389 262 3055	WASHER T.0,25 MM		1
7	60531181	389 261 1933	ALUMINIUM COVER	(1)	1
7	60532316	976 261 1833	COVER	(2)	1
8		000000 000428	SCREW M10X35		6
8		910107 010015	SCREW M10X35		6
9		389 263 7652	SPACER T.1,09 MM		1
9		389 263 7552	SPACER T.1,06 MM		1
9		389 263 7452	SPACER T.1,03 MM		1
9		389 263 7352	SPACER T.1,00 MM		1
9		389 263 7252	SPACER T.0,97 MM		1
9		389 263 7152	SPACER T.0,94 MM		1
9		389 263 7052	SPACER T.0,91 MM		1
9		389 263 6952	SPACER T.0,88 MM		1
9		389 263 6852	SPACER T.0,85 MM		1
9		389 263 6752	SPACER T.0,82 MM		1
9		389 263 6652	SPACER T.0,79 MM		1
9		389 263 6552	SPACER T.0,76 MM		1
9		389 263 6452	SPACER T.0,73 MM		1
9	60532051	389 263 6352	SPACER T.0,70 MM		1
9		389 263 6252	SPACER T.0,67 MM		1
9	60532259	389 263 6152	SPACER T.0,64 MM		1
9		389 263 6052	SPACER T.0,61 MM		1
9	60532260	389 263 5952	SPACER T.0,58 MM		1
9		389 263 5852	SPACER T.0,55 MM		1
9	60532261	389 263 5752	SPACER T.0,52 MM		1
9		389 263 5652	SPACER T.0,49 MM		1
9	60532262	389 263 5552	SPACER T.0,46 MM		1
10		389 261 3201	GEARBOX HOUSING		1
11	98530179	011 981 1305	BEARING 75X140X34,3 MM		1
12	60531677	389 262 6602	INPUT SHAFT 30 T.	OLD	1
12	60532186	656 262 3282	INPUT SHAFT 30 T.	NEW(3)	1
13	60531682	976 269 0034	TUBE		1
14	60531683	000 994 9841	SEEGER RING		1
15	60531472	945 990 0250	NUT M30X1,5		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
16	98530204	015 981 1605	BEARING 39,7X40,4 MM		1
17	60531394	017 997 9947	OIL SEAL 75X94X11,50 MM		1
18	60530203	389 262 5434	SYNCHRONIZER CONE	(A)	1
18	60531895	945 262 3634	SYNCHRONIZER CONE	(B)	1
19	60530518	389 262 0637	SYNCHRONIZER RING	(A)	4
19	60532242	947 260 0545	SYNCHRONIZER RING	(B)	4
20	60530991	387 262 1093	ELASTIC RING		4
21	60531672	389 262 5335	SYNCHRONIZER HUB 60 T.		1
22	60530693	945 262 2823	SLIDING SLEEVE	(A)	1
22	60531897	945 262 6823	SLIDING SLEEVE	(B)	1
23		947 260 0030	SHIFT FORK 5TH/6TH		1
24	60530890	947 265 0349	SLIDING BLOCK		6
25		655 265 0004	TIE ROD 5TH/6TH		1
26	60531937	389 262 9834	SYNCHRONIZER CONE	(A)	1
26	60532139	945 262 7134	SYNCHRONIZER CONE	(B)	1
27	60531673	389 262 0716	GEAR 6TH SPEED 26 T.		1
28	98530390	019 981 6010	NEEDLE BEARING 60X68X54		1
29		389 262 3973	SEEGER RING T.2,75 MM		2
29		389 262 3873	SEEGER RING T.2,70 MM		2
29		389 262 3773	SEEGER RING T.2,65 MM		2
29		389 262 3673	SEEGER RING T.2,60 MM		2
29		389 262 3573	SEEGER RING T.2,55 MM		2
29		389 262 3473	SEEGER RING T.2,50 MM		2
29		389 262 3373	SEEGER RING T.2,45 MM		2
29		389 262 3273	SEEGER RING T.2,40 MM		2
29		389 262 1473	SEEGER RING T.3,30 MM		2
29		389 262 1373	SEEGER RING T.3,25 MM		2
29		387 262 9773	SEEGER RING T.3,20 MM		2
29		389 262 1273	SEEGER RING T.3,20 MM		2
29	60531794	389 262 0573	SEEGER RING T.3,10 MM		2
29		387 262 4573	SEEGER RING T.3,10 MM		2
29		389 262 0373	SEEGER RING T.3,00 MM		2
29	60531795	387 262 4373	SEEGER RING T.3,00 MM		2
29		387 262 4273	SEEGER RING T.2,95 MM		2
29		389 262 0173	SEEGER RING T.2,90 MM		2

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
29		387 262 4173	SEEGER RING T.2,90 MM		2
30	60531926	389 262 1862	SPACER		1
31	60531893	389 262 0814	GEAR 4TH SPEED 35 T.		1
32	98530121	009 981 1510	NEEDLE BEARING 78X86X35 W		1
33	60531927	945 262 5034	SYNCHRONIZER CONE	(A)	1
33	60532031	945 262 6134	SYNCHRONIZER CONE	(B)	1
34	60531168	389 262 4435	SYNCHRONIZER HUB		1
35	60531165	389 262 2023	SLIDING SLEEVE	(A)	1
35	60532048	945 262 5723	SLIDING SLEEVE	(B)	1
36		389 260 3930	SHIFT FORK 3RD/4TH		1
37		389 265 9704	TIE ROD 3RD/4TH		1
38	60531674	656 262 4413	GEAR 3RD SPEED 40 T.	(A)	1
38	60532047	945 262 6417	GEAR 3RD SPEED 40 T.	(B)	1
39	98530207	008 981 8610	NEEDLE BEAR. 92X100X49,5		2
40	60531914	389 262 4605	MAIN SHAFT		1
41	60531572	976 262 1612	GEAR 2ND SPEED 45 T.		1
42	60531669	945 262 4934	SYNCHRONIZER CONE	(A)	1
42	60532032	945 262 6034	SYNCHRONIZER CONE	(B)	1
43	60530684	389 262 0737	SYNCHRONIZER RING	(A)	2
43	60531902	947 260 1945	SYNCHRONIZER RING	(B)	2
44	60531030	387 262 0893	ELASTIC RING		2
45	60531167	389 262 5635	SYNCHRONIZER HUB		1
46	60531166	389 262 2123	SLIDING SLEEVE	(A)	1
46	60532002	945 262 5623	SLIDING SLEEVE	(B)	1
47		387 260 4730	SHIFT FORK 1ST/2ND		1
48		389 265 9804	TIE ROD 1ST/2ND		1
49	60531668	945 262 4834	SYNCHRONIZER CONE	(A)	1
49	60532033	945 262 5934	SYNCHRONIZER CONE	(B)	1
50	60531679	389 262 3311	GEAR 1ST SPEED 50 T.		1
51	98530214	021 981 9410	NEEDLE BEARING 85X93X45 W		2
52	60532106	389 262 2855	SPACER T.5,50 MM		1
53		389 262 8852	WASHER		1
54		389 262 2250	BUSH		1
55	60532003	389 262 2233	REV.IDLER GEAR 47 T		1
56	60530777	389 262 1723	SLIDING SLEEVE	(C)	1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
56	60530776	389 262 1823	SLIDING SLEEVE	(D)	1
57		656 260 0230	REVERSE FORK		1
58	60531852	947 265 0249	SLIDE		2
59		389 260 2831	REVERSE TIE ROD		1
60	60532004	389 262 4135	SYNCHRONIZER HUB	(C)	1
60	60532181	389 262 4235	SYNCHRONIZER HUB	(D)	1
61	98530329	012 981 3705	BEARING 65X140X13,5 MM		1
62		629 262 0045	OUTPUT FLANGE Ø 150 MM		1
63		027 997 3048	SEAL RING		1
64		976 262 0362	WASHER		1
65		000000 000963	SCREW M20X80		1
66	98530107	015 981 9005	BEARING 50,8X100X35 MM		1
67	60532315	900055 060300	SEEGER RING		1	NSS
68	60531676	389 263 1910	CONSTANT GEAR 47 T.		1
69	60531675	389 263 0116	GEAR 6TH SPEED 51 T.		1
70	60531678	656 263 0013	DBL GEAR 3RD/4TH 38/28 T.		1
71	60531651	389 263 2702	COUNTERSHAFT 12/19 T.		1
72	98530294	012 981 3605	BEARING 45X110X12 MM		1
73	60531985	389 263 0650	BUSH		1
74		015 981 4110	NEEDLE BEARING		1
75	60531984	389 263 1931	REVERSE GEAR 21 T.		1
76	60532182	976 263 0330	REVERSE PIN		1
77		976 263 0041	KEY		1
78		000 990 3204	SCREW M10X25		1
79		389 261 2429	GEARBOX HOUSING		1
80		629 997 0032	PLUG		1
81		629 993 0001	SPRING		1
82		387 264 0089	VALVE		1
83	60532248	007603 024105	WASHER		2	NSS
84	60531366	210 997 0032	PLUG		2
85		389 269 0321	OIL NET		1
86		389 261 0050	BUSH		1
87		389 993 2101	SPRING		1
88		007603 038105	SEAL RING 38X46		1
89		389 997 0132	PLUG M38X1,5		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
90		007603 012113	SEAL RING		1
91		000908 012009	PLUG		1
92	60531759	389 269 2001	PUMP COVER		1
93	60531118	389 269 1606	ROTOR INNER 9 T.		1
94	60531063	389 269 0706	ROTOR EST.		1
95		629 269 0001	OIL PUMP		1
96		389 263 1752	SPACER T.0,50 MM		1
96		389 263 1652	SPACER T.0,30 MM		1
96		389 263 1552	SPACER T.0,25 MM		1
96		389 263 1452	SPACER T.0,15 MM		1
96		389 263 1352	SPACER T.0,10 MM		1

(ABCD) TO BE COUPLED TOGETHER
(1) UP TO GEARBOX 078499
(2) FROM GEARBOX 078500
(3) WE SUPPLY THE PREVIOUS VERSION 60531677 - 389 262 6602 (FIG.12) COMPLETE BY TUBE 60531682 - 976 269 0034 (FIG.13) AND SEEGER RING 60531683 - 000 994 9841 (FIG.14)
