(ABC) TO BE COUPLED TOGETHER
(DE) TO BE COUPLED TOGETHER
(1) COLUMN 2: ONLY FOR SERIES 715.260-261
(2) UP TO GEARBOX 375914
(3) FROM GEARBOX 375915
(4) COLUMN 2: ONLY FOR SERIES 715.400-410-411
(5) COLUMN 1: ONLY FOR SERIE 715.241-242-253
(6) COLUMN 1: ONLY FOR SERIES 715.240-252
(7) COLUMN 2: ONLY FOR SERIE 715.260
(8) COLUMN 2: ONLY FOR SERIE 715.261
(9) COLUMN 1: ONLY FOR SERIES 715.241-242-253
(10) FROM GEARBOX 490749
(11) UP TO GEARBOX 438701
(12) FROM GEARBOX 438702
(13) UP TO GEARBOX 433517
(14) FROM GEARBOX 433518
(15) 60531096 - 389 262 3810 DOES NOT USE FIG.61 AND FIG.64
(16) 60531097 - 389 262 7910 DOES NOT USE FIG.61.IT USE ONLY FIG.64 NOTE 14
(17) NOT SUPPLIED SEPARATELY, WE SUPPLY THE COMPLETE BEARING: 98530098 - 011 981 7705 (FIG.63)
(18) FROM GEARBOX 514620
(19) 60531544 - 945 262 3605 REPLACED BY 1 PC 60531762 - 945 262 4505 (FIG.78) + 1 PC 98531230 - 018 981 7610 (FIG.89)
(20) 60531782 - 945 262 3112 PERFECTLY INTERCHANGEABLE TO 60531048 - 389 262 2812 (FIG.80)
(21) UP TO GEARBOX 313860
(22) FROM GEARBOX 313861
(23) 60531876 - 389 262 0509 REPLACED BY 1 PC 60531928 - 945 262 0909 (FIG.102) + 1 PC 60531090 - 655 260 0197 (FIG.107) + 1 PC 60531091 - 945 262 0108 (FIG.116)
(24) 60532145 - 655 260 0097 REPLACED BY 1 PC 60531090 - 655 260 0197 (FIG.107) + 1 PC 60531091 - 945 262 0108 (FIG.116) + 1 PC 60531928 - 945 262 0909 (FIG.102)
(25) UP TO GEARBOX 380570
(26) FROM GEARBOX 380571
(27) UP TO GEARBOX 505541
(28) FROM GEARBOX 505542
(29) ONLY FOR SERIES 715.410-411
(30) ONLY FOR SERIES 715.400-410
(31) ONLY FOR SERIE 715.411
(34) 60530949 - 389 263 0430 REPLACED BY 1 PC 60531074 - 976 263 0030 (FIG.179) + 1 PC 60531075 - 945 263 0041 (FIG.180)
(35) 60531119 - 389 260 4919 REPLACED BY 1 PC 60531048 - 389 262 2812 (FIG.80) + 1 PC 60530521 - 945 262 0434 (FIG.81)
(36) MULTIPLE REPLACEMENT: 60531106 - 945 260 4461 TO BE COMPLETED WITH BEARING 98530188 - 008 981 3025 (FIG.139) THAT WE DO NOT SUPPLY
(37) 60531106 - 945 260 4461 REPLACED BY 1 PC 60531539 - 945 260 3661 (FIG.106) + 1 PC 945 262 0762 (FIG.145) + 1 PC 000000 005728 (FIG.146)
(38) 60532146 - 389 262 0608 REPLACED BY 1 PC 60531091 - 945 262 0108 (FIG.116) + 1 PC 60531090 - 655 260 0197 (FIG.107) + 1 PC 60531928 - 945 262 0909 (FIG.102)
(39) ALTERNATIVE VERSION OF 60530907 - 389 262 0537 (FIG.122), PRODUCED USING A DIFFERENT ANTIFRICTION MATERIAL, BUT PERFECTLY INTERCHANGEABLE
(40) 60531091 - 945 262 0108 REPLACED BY 1 PC 60531748 - 945 262 0208 (FIG.117) + 1 PC 60531198 - 389 262 0773 (FIG.118) + 1 PC 60531199 - 389 262 1425 (FIG.119)
(41) 60531060 - 389 260 0690 REPLACED BY 1 PC 60531061 - 389 269 3801 REPLACED BY 1 PC 60531061 - 947 269 1001 (FIG.168) + 1 PC 60531063 - 389 269 0706 (FIG.169) + 1 PC 60531064 - 389 269 1406 (FIG.170) + 1 PC 60531653 - 029 997 5748 (FIG.171) + 1 PC 60531062 - 945 269 0201 (FIG.172) + 1 PC 001 991 7860 (FIG.173)
(42) 60531911 - 945 262 6623 REPLACED BY 1 PC 60531820 - 945 262 6923 (FIG.124) + 1 PC 947 265 2701 (FIG.125) + 2 PCS 60530890 - 947 265 0349 (FIG.126)
(45) NOT SUPPLED SEPARATELY, WE SUPPLY: 60531202 - ***** (FIG.113)
(46) 60531312 - ***** COMPOSED BY: 1 PC 60530686 - 389 260 2036 (FIG.120) + 2 PCS 60531059 - 389 262 0293 (FIG.121) + 2 PCS 60530907 - 389 262 0537 (FIG.122) + 1 PC 60530730 - 389 262 4935 (FIG.123) + 1 PC 60530687 - . 945 262 0823 (FIG.124) + 1 PC 60531053 - 389 262 4434 (FIG.136)
(47) 60531310 - ***** COMPOSED BY: 1 PC 60531038 - 945 262 4110 (FIG.38) + 1 PC 60531096 - 389 262 3810 (FIG.62) + 2 PCS 60530518 - 389 262 0637 (FIG.65) + 2 PCS 60530991 - 387 262 1093 (FIG.66) + 1 PC 60530693 - 945 262 2823 (FIG.69)
(49) TO GEAR 60531045 - 389 262 8610 (FIG.62)
(51) TO GEAR 60531046 - 945 262 0510 (FIG.62)
(52) MULTIPLE REPLACEMENT: 1 PC 60531045 - 389 262 8610 (FIG.62) + 1 PC 60530767 - 945 262 4034 (FIG.61)
(53) 98530098 - 011 981 7705 COMPOSED BY: 1 PC 98530217 - 014 981 1605 (FIG. 63) + 1 PC 60531538 - 002 981 1580 (EXTERNAL RING)
(54) G210-16/14,2-0,83 FOR SERIES 715.500-501-504
(55) G240-16/11,7-0,69 FOR SERIES 715.520-521
(56) UP TO GEARBOX 041830
(57) FROM GEARBOX 041831
(58) G210-16/14,2-0,83 EXCLUDED SERIES 715.500-501-504
(59) G240-16/11,7-0,69 EXCLUDED SERIES 715.520-521
(60) UP TO GEARBOX 502734
(61) FROM GEARBOX 502735
(62) ONLY FOR SERIE 715.400
(63) UP TO GEARBOX 339359
(64) G210-16 EXCLUDED SERIE 715.504
(67) FROM GEARBOX 339360
(68) G210-16 FOR SERIES 715.500-501
(69) UP TO GEARBOX 344483
(70) FROM GEARBOX 344484
(72) G210-16 FOR SERIES 715.500-501-504, G240-16 FOR SERIES 715.520-521 UP TO GEARBOX 344483
(73) G210-16 FOR SERIES 715.500-501-504, G240-16 FOR SERIES 715.520-521 FROM GEARBOX 344484
(74) G210-16 FOR SERIES 715.500-501, G240-16 FOR SERIES 715.520-521 UP TO GEARBOX 467535
(75) G210-16 FOR SERIES 715.500-501, G240-16 FOR SERIES 715.520-521 FROM GEARBOX 467536
(77) G210-16 FOR SERIES 715.500-501-504, G240-16 FOR SERIES 715.520-521 UP TO GEARBOX 366886
(78) G210-16 FOR SERIES 715.500-501-504, G240-16 FOR SERIES 715.520-521 FROM GEARBOX 366887
(79) G210-16 FOR SERIES 715.500-501-504, G240-16 FOR SERIES 715.520-521 UP TO GEARBOX 344692
(80) G210-16 FOR SERIES 715.500-501-504, G240-16 FOR SERIES 715.520-521 FROM GEARBOX 344693
(81) FROM GEARBOX 366887
(82) G210-16 FOR SERIE 715.500, G240-16 FOR SERIE 715.520
(85) UP TO GEARBOX 366886
(86) FROM GEARBOX 366887
(87) G240-16 FOR SERIE 715.520
(88) G210-16 FOR SERIE 715.500
(89) 60531834 - 945 260 4661 (FIG.106) COMPOSED BY: 1 PC 60531539 - 945 260 3661 (FIG.106, PLANET CARRIER EMPTY) + 1 PC 60531092 - 000472 060000 (FIG.104) + 1 PC 60531093 - 945 269 0834 (FIG.105) + 1 PC 60531090 - 655 260 0197 (FIG.107) + 1 PC 60532175 - 945 262 0762 (FIG.145) + 1 PC 60532143 - 000000 005728 (FIG.146)
(90) G210-16 FOR SERIES 715.500-501-504, G240-16 FOR SERIES 715.520-521 UP TO GEARBOX 502924
(91) G210-16 FOR SERIES 715.500-501-504, G240-16 FOR SERIES 715.520-521 FROM GEARBOX 502925
(92) WITH WSK400
(93) 60531772 - 389 262 3935 REPLACED BY 1 PC 60531846 - 945 262 3835 (FIG.91) + 1 PC 60531847 - 945 262 4433 (FIG.96)
(94) 60531773 - 945 262 3333 REPLACED BY 1 PC 60531847 - 945 262 4433 (FIG.96) + 1 PC 60531846 - 945 262 3835 (FIG.91)
(95) 60530687 - . 945 262 0823 (FIG.124) REPLACED BY 1 PC 60531911 - 945 262 6623 (FIG.124)
(96) UP TO GEARBOX 080586
(97) FROM GEARBOX 080587
(99) CARBON VERSION
(100) MOLYBDENUM VERSION

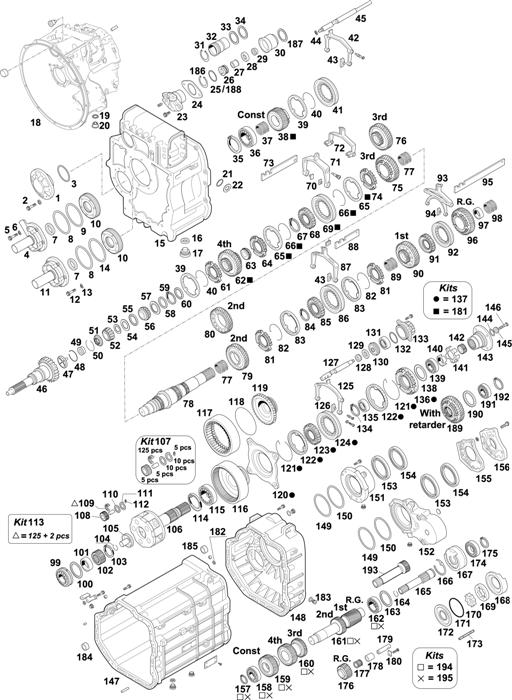

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	60531181	389 261 1933	ALUMINIUM COVER		1
1		976 261 1133	COVER	(55,56,68)	1
1	60532316	976 261 1833	COVER	(54,55,57)	1
2		000000 000428	SCREW M10X35		6
2		000000 000631	SCREW M8X35	(54,55,57)	6
3		389 263 8552	SPACER T.1,36 MM		1
3		389 263 8352	SPACER T.1,30 MM		1
3		389 263 8152	SPACER T.1,24 MM		1
3		389 263 7952	SPACER T.1,18 MM		1
3		389 263 7752	SPACER T.1,12 MM		1
3		389 263 7552	SPACER T.1,06 MM		1
3		389 263 7352	SPACER T.1,00 MM		1
3		389 263 7152	SPACER T.0,94 MM		1
3		389 263 6952	SPACER T.0,88 MM		1
3		389 263 6752	SPACER T.0,82 MM		1
3		389 263 6552	SPACER T.0,76 MM		1
3	60532051	389 263 6352	SPACER T.0,70 MM		1
3	60532259	389 263 6152	SPACER T.0,64 MM		1
3	60532260	389 263 5952	SPACER T.0,58 MM		1
3	60532261	389 263 5752	SPACER T.0,52 MM		1
3	60532262	389 263 5552	SPACER T.0,46 MM		1
3	60532263	389 263 5352	SPACER T.0,40 MM		1
3	60532173	406 337 0352	SHIM 0,20 MM		1
3	60532171	406 337 0252	SHIM 0,10 MM		1
4	60531281	389 261 4518	FRONT BEARING COVER	(1)	1
4	60531804	945 261 1118	COVER	(54,55)	1
5		914141 008312	SCREW M8X35	(1)	6
6	60531239	000137 008212	SPACER	(1)	6
7	60531388	019 997 0547	OIL SEAL 56X72X8 MM		2
8	60531435	028 997 2248	O-RING 140X3		2
8	60532211	020 997 7848	O-RING 138X3		1
9		389 262 0555	WASHER T.0,80 MM	(1,2)	1
9	60531954	389 262 4055	WASHER T.0,55 MM	(1,3)	1
9	60532018	389 262 3955	WASHER T.0,52 MM	(1,3)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
9	60531884	389 262 0255	WASHER T.0,50 MM	(1,2)	1
9	60532017	389 262 3855	WASHER T.0,49 MM	(1,3)	1
9	60532016	389 262 3755	WASHER T.0,46 MM	(1,3)	1
9	60532015	389 262 3655	WASHER T.0,43 MM	(1,3)	1
9	60531434	389 262 3555	WASHER T.0,40 MM	(1,3)	1
9	60532014	389 262 3455	WASHER T.0,37 MM	(1,3)	1
9	60532013	389 262 3355	WASHER T.0,34 MM	(1,3)	1
9	60532012	389 262 3255	WASHER T.0,31 MM	(1,3)	1
9	60532011	389 262 3155	WASHER T.0,28 MM	(1,3)	1
9	60531433	389 262 3055	WASHER T.0,25 MM	(1,3)	1
9		389 262 0855	WASHER T.0,15 MM	(1,2)	1
9	60532050	389 262 0955	WASHER T.0,10 MM	(1,2)	1
10	60531122	389 261 0665	OIL COLLECTOR 75X16		2
11	60531906	945 261 1218	COVER	(4,55)	1
12		914141 008312	SCREW M8X35	(4,55)	5
12		000912 008130	SCREW M8X50	(4,55)	1
13	60531239	000137 008212	SPACER	(4,55)	6
14		389 262 0555	WASHER T.0,80 MM	(59)	1
14	60531884	389 262 0255	WASHER T.0,50 MM	(59)	1
14		389 262 0855	WASHER T.0,15 MM	(59)	1
14	60532050	389 262 0955	WASHER T.0,10 MM	(59)	1
15		389 261 0408	FRONT HOUSING	(1,5,6)	1
16	60532248	007603 024105	WASHER	(1,4,5,6)	1	NSS
17	60531366	210 997 0032	PLUG	(1,4,5,6)	1
18		655 260 2823	FRONT HOUSING	(4)	1
18	60531858	945 260 0111	GEARBOX HOUSING	(54,55)	1
18		945 260 5411	GEARBOX HOUSING	(55,68)	1
19	60532248	007603 024105	WASHER		1	NSS
20	60531366	210 997 0032	PLUG		1
21	60531642	017 997 7148	SEAL RING	(4,5)	1
22	60531644	017 997 1847	SEAL RING 38X28MM	(4,5)	1
23	60531498	389 267 2819	CYLINDER	(1,5,6)	1
24	60531445	387 263 3752	GASKET T.1,00 MM	(1,5,6)	1
24		387 263 3552	GASKET T.0,60 MM	(1,5,6)	1
24	60531499	387 263 3452	GASKET T.0,40 MM	(1,5,6)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
24	60531444	387 263 3352	GASKET T.0,20 MM	(1,5,6)	1
25	60531360	007 997 4248	O-RING 63X3	(1,5,6)	1
26	60531340	945 267 0218	PISTON		1
27	60531359	006 997 6447	OIL SEAL 38,5X41X11,5 MM		1
28	60531179	387 267 0650	BUSH 34X22X8 MM		1
29	60531180	000 267 0197	OIL SEAL 22X32X8 MM		1
30	60530968	389 267 3319	CYLINDER	(1,5,6)	1
30	60531792	945 267 0819	CYLINDER	(54,55)	1
30		945 267 0619	CYLINDER	(55,68)	1
31		006 994 4241	LOCK RING	(4)	1
32		945 267 0019	CYLINDER	(4)	1
33		014 997 1248	SEAL RING 55,2X3 MM	(4)	1
34	60531446	389 262 3352	SPACER T.2,50 MM	(4)	1
34	60531693	389 262 3252	SPACER T.2,00 MM	(4)	1
34	60531500	389 262 2355	SPACER T.1,80 MM	(4)	1
34	60531848	389 262 2052	SPACER T.1,40 MM	(4)	1
34	60531849	389 262 3554	SPACER T.1,20 MM	(4)	1
34		389 262 2655	SPACER T.0,90 MM	(4)	1
34	60531850	389 262 2555	SPACER T.0,70 MM	(4)	1
35	60532292	387 262 9373	SEEGER RING T.3,50 MM		1
35		387 262 9273	SEEGER RING T.3,45 MM		1
35		387 262 9173	SEEGER RING T.3,40 MM		1
35	60532291	387 262 9073	SEEGER RING T.3,35 MM		1
35		387 262 8973	SEEGER RING T.3,30 MM		1
35		387 262 8873	SEEGER RING T.3,25 MM		1
35	60532290	387 262 8773	SEEGER RING T.3,20 MM		1
35	60531438	387 262 8673	SEEGER RING T.3,15 MM		1
36	98530179	011 981 1305	BEARING 75X140X34,3 MM		1
37	98530212	016 981 0010	NEEDLE BEARING 89X97X40 W		1
38	60531038	945 262 4110	CONSTANT GEAR 32 T.	(1,4,5,6)	1
38	60531038	945 262 4110	CONSTANT GEAR 32 T.	(54,55,60)	1
38	60531460	945 262 4710	CONSTANT GEAR 39 T.	(55,61,68)	1
39	60530518	389 262 0637	SYNCHRONIZER RING		2
39	60530518	389 262 0637	SYNCHRONIZER RING	(90)	2
39	60532242	947 260 0545	SYNCHRONIZER RING	(91)	2

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
40	60530991	387 262 1093	ELASTIC RING		2
41	60530693	945 262 2823	SLIDING SLEEVE		1
41	60530693	945 262 2823	SLIDING SLEEVE	(54,55,60)	1
41	60531897	945 262 6823	SLIDING SLEEVE	(54,55,61)	1
42	60532081	389 265 1201	SPLITTER SHIFT FORK	(58,59)	1
42	60531898	945 265 0001	SPLITTER SHIFT FORK	(54,55)	1
43	60530890	947 265 0349	SLIDING BLOCK		2
44		387 263 3052	WASHER T.1,00 MM		1
44		387 263 2852	WASHER T.0,60 MM		1
44		387 263 2752	WASHER T.0,40 MM		1
44	60531443	387 263 2652	WASHER T.0,20 MM		1
45	60531282	389 267 2217	TIE ROD	(6,7)	1
45	60531283	389 267 2017	TIE ROD	(8)	1
45	60531497	389 267 3017	TIE ROD	(9)	1
45		945 267 0117	TIE ROD	(4,54)	1
45		945 267 0017	TIE ROD	(54,55)	1
45		945 267 0617	TIE ROD	(55,68)	1
46	60531041	389 262 6501	INPUT SHAFT 60 T.	(5,6)	1
46	60531203	389 262 6601	INPUT SHAFT 60 T.	(1)	1
46	60531691	945 262 4403	INPUT SHAFT 60 T.	OLD(4,92)	1
46	60531691	945 262 4403	INPUT SHAFT 60 T.	NEW(4,55,68,92)	1
46	60531042	389 262 6201	INPUT SHAFT 60 T.	(88)	1
46	60531755	389 262 8201	INPUT SHAFT 60 T.	(54)	1
46		945 262 6303	INPUT SHAFT	(68)	1
46		945 260 7592	INPUT SHAFT	(54)	1
46	60531206	389 262 8301	INPUT SHAFT 60 T.	(55)	1
46		945 262 6203	INPUT SHAFT	(55)	1
47	60532116	389 269 8534	TUBE		1
48	60532090	007993 050200	ELASTIC RING		1
49	60531392	000 262 8762	OIL SEAL 78,5X105X7 MM		1
50	60531368	389 262 0973	ELASTIC RING		1
51	60531472	945 990 0250	NUT M30X1,5		1
52	98530204	015 981 1605	BEARING 39,7X40,4 MM		1
53	60531701	389 262 5552	SPACER T.1,20 MM		1
53	60531702	389 262 5652	SPACER T.0,80 MM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
53	60531477	389 262 5752	SPACER T.0,50 MM		1
53	60531330	389 262 5952	SPACER T.0,10 MM		1
53	60531485	389 262 7954	SPACER T.0,30 MM		1
54	60531446	389 262 3352	SPACER T.2,50 MM		1
54	60531693	389 262 3252	SPACER T.2,00 MM		1
54	60531993	389 262 3152	SPACER T.1,95 MM		1
54	60531694	389 262 3052	SPACER T.1,90 MM		1
54	60532107	389 262 2952	SPACER T.1,85 MM		1
54	60532105	389 262 2455	SPACER T.1,82 MM		1
54	60531500	389 262 2355	SPACER T.1,80 MM		1
54	60532103	389 262 2255	SPACER T.1,76 MM		1
54	60532026	389 262 2155	SPACER T.1,73 MM		1
54	60532102	389 262 2055	SPACER T.1,67 MM		1
54	60532101	389 262 1955	SPACER T.1,64 MM		1
54		389 262 1855	SPACER T.1,61 MM		1
54		389 262 1755	SPACER T.1,58 MM		1
54	60531997	389 262 2352	SPACER T.1,55 MM		1
54		389 262 1655	SPACER T.1,52 MM		1
54	60531695	389 262 1555	SPACER T.1,49 MM		1
54		389 262 1455	SPACER T.1,46 MM		1
54		389 262 1355	SPACER T.1,43 MM		1
54	60531848	389 262 2052	SPACER T.1,40 MM		1
54	60531696	389 262 1952	SPACER T.1,35 MM		1
54	60532027	389 262 2754	SPACER T.1,30 MM		1
54	60532028	389 262 3654	SPACER T.1,25 MM		1
54	60531849	389 262 3554	SPACER T.1,20 MM		1
54	60531697	389 262 3454	SPACER T.1,15 MM		1
54	60531698	389 262 3354	SPACER T.1,10 MM		1
54	60531479	389 262 3254	SPACER T.1,05 MM		1
54	60531478	389 262 2854	SPACER T.0,50 MM		1
55	60532035	389 262 2351	SPACER T.6,90 MM	(5,6,10,54,55)	1
56	98530115	002 981 7905	BEARING 50X90X32 MM	OLD TYPE(54)	1
56	98530247	011 981 6005	NEEDLE BEARING 50X32 MM	(5,6,49)	1
56	98530250	015 981 7605	BEARING 50X41 MM	(51)	1
56	98530246	012 981 9905	NEEDLE BEARING 50X36 MM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
106	60531106	945 260 4461	PLANET CARRIER EMPTY	(37)	1
106	60531539	946 260 3661	PLANET CARRIER EMPTY		1
107	60532145	655 260 0097	REPAIR KIT	(5,6,21,24)	1
107	60531090	655 260 0197	REPAIR KIT	(5,6,22,54)	1
107	60531090	655 260 0197	REPAIR KIT	(1,4,55)	1
108	60531102	945 262 0006	PLANETARY GEAR 28 T.		5	NSS
109	60530983	000 981 4186	ROLLER D.5X39,8	(45)	125	NSS
110	60530984	389 262 0162	SPACER		10
111	60531103	389 262 1162	WASHER		10
112	60530982	000914 006109	LOCKPIN 6X14 MM		5
113	60531202	*****	NEEDLE KIT (125+2 PCS)		1
114	60531511	000472 130000	SEEGER RING		1
115	98530108	008 981 1325	BEARING 90X130X14 MM		1
116	60532146	389 262 0608	CROWN	(5,6,38)	1
116	60531091	945 262 0108	TOOTHED RIM 85 T.	(5,6,40,54)	1
117	60531123	389 262 0708	CROWN 85 T.	64 MM(1,4,5,6)	1
117	60531748	945 262 0208	CROWN 85 T.	70 MM(1,4,5,6)	1
117	60531748	945 262 0208	CROWN 85 T.	70 MM(54,55)	1
117	60531886	945 262 0808	TOOTHED RIM 85 T.	(55,88)	1
118	60531198	389 262 0773	LOCK RING		1
119	60531199	389 262 1425	CARRIER HUB 85 T.		1
120	60530686	389 260 2036	FOLLOWER RING	(A)(1,4,5,6)	1
120	60530686	389 260 2036	FOLLOWER RING	(A)(77)	1
120	60531734	947 260 3036	FOLLOWER RING	(1,4,5,6)	1
120	60531734	947 260 3036	FOLLOWER RING	(78)	1
121	60531059	389 262 0293	ELASTIC RING	(A)	2
122	60530907	389 262 0537	SYNCHRONIZER RING	(A)(1,4,5,6)	2
122	60531711	945 260 0850	SYNCHRONIZER RING	(1,4,5,6,39)	2
122	60530907	389 262 0537	SYNCHRONIZER RING	(A)(79)	2
122	60531711	945 260 0850	SYNCHRONIZER RING	(39,80)	2
122	60532241	947 260 3045	SYNCHRONIZER RING	(81,99)	2
122	60531765	MO 947 260 3045	SYNCHRONIZER RING	(100)	2
123	60530730	389 262 4935	SYNCHRONIZER HUB	(A)	1
124		. 945 262 0823	SLIDING SLEEVE	(95)	1
124	60531911	945 262 6623	SLIDING SLEEVE	(A)OLD(42)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
124	60531820	945 262 6923	SLIDING SLEEVE	NEW	1
125	60531514	389 265 0901	SPLITTER SHIFT FORK	OLD	1
125		947 265 2701	SHIFT FORK	NEW(77)	1
125	60531819	947 265 1901	SPLITTER SHIFT FORK	(78)	1
126	60531039	389 265 2449	SLIDING BLOCK	(77)	2
126	60530890	947 265 0349	SLIDING BLOCK	(78)	2
127	60531285	389 267 7217	TIE ROD	(4,5,8)	1
127	60531286	389 267 3417	TIE ROD	(6,7)	1
128	60531180	000 267 0197	OIL SEAL 22X32X8 MM		1
129	60531179	387 267 0650	BUSH 34X22X8 MM		1
130	60531317	389 267 1018	PISTON		1
131	60531654	024 997 8347	RING 77X90X17 MM		1
132	60531190	013 997 7548	O-RING 89,5X3		1
133	60530967	945 267 1119	CYLINDER	(1,4,5,6)	1
133	60532112	945 267 1319	CYLINDER	(54,55)	1
134	60531512	000471 120000	SEEGER RING		1
135	60531513	389 262 0251	SPACER		1
136	60531053	389 262 4434	SYNCHRONIZER CONE	(A)(1,4,5,6,25)	1
136	60531052	389 262 9234	SYNCHRONIZER CONE	(1,4,5,6,26)	1
136	60531052	389 262 9234	SYNCHRONIZER CONE	(77)	1
136	60531736	945 262 3834	SYNCHRONIZER CONE	(78)	1
137	60531312	*****	REPAIR KIT	(A)(46)	1
138		389 262 7854	SPACER T.3,50 MM		1
139	98530109	004 981 9325	BEARING 85X150X28 MM	(27)	1
139	98530188	008 981 3025	BEARING 80X150X28 MM	(28)	1
140	60531320	945 262 0528	PULSE DISK	(1,5,6,27,62,68)	1
140		945 262 0628	PULSE DISK	(1,5,6,28,62,68)	1
140	60531969	930 262 0028	PULSE DISK	(1,5,6,28,54,55,62)	1
141	60531387	387 262 0828	PULSE DISK	(29,55,68)	1
142	60531316	389 264 0021	GEAR 64 T.	(29,68)	1
143	60530909	389 262 0445	OUTPUT FLANGE D.180 DIN9T	(1,5,6,27)	1
143	60531955	945 262 0045	OUTPUT FLANGE D.180-4 H.	(1,5,6,28)	1
143	60530909	389 262 0445	OUTPUT FLANGE D.180 DIN9T	(54,55,96)	1
143	60531955	945 262 0045	OUTPUT FLANGE D.180-4 H.	(54,55,97)	1
143	60532080	945 262 0445	OUTPUT FLANGE D.200	(68)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
158	98530107	015 981 9005	BEARING 50,8X100X35 MM	(DE)	1
159	60531050	945 263 0810	CONSTANT GEAR 31 T.	(DE)	1
160	60531919	945 263 2913	DBL GEAR 3RD/4TH 34/27 T.	(D)(11,12)	1
160	60531929	945 263 3213	DBL GEAR 3RD/4TH 34/29 T.	(E)(13,14)	1
161	60531763	945 263 2902	COUNTERSHAFT 21/16 T.	(DE)	1
162	98530218	016 981 1205	BEARING 60X130X33,8 MM	(DE)	1
163	60531706	389 263 5052	WASHER T.1,15 MM		1
163	60531705	389 263 4652	WASHER T.0,95 MM		1
163	60531704	389 263 4452	WASHER T.0,85 MM		1
163	60531449	389 263 4252	WASHER T.0,70 MM		1
163	60531703	389 263 4052	WASHER T.0,60 MM		1
164	60531550	912009 045100	LOCK RING	(1,54)	1
165	60531903	947 264 0005	OIL PUMP SHAFT	(64)	1
165	60532113	947 269 1010	OIL PUMP SHAFT	(54,55)	1
166		389 262 5154	SPACER T.1,30 MM		1
166		389 262 5254	SPACER T.1,25 MM		1
166		389 262 5354	SPACER T.1,20 MM		1
166		389 262 5454	SPACER T.1,15 MM		1
166		389 262 5554	SPACER T.1,10 MM		1
166		389 262 5654	SPACER T.1,05 MM		1
166		389 262 5754	SPACER T.1,00 MM		1
166	60531525	389 262 5854	SPACER T.0,95 MM		1
166	60531524	389 262 5954	SPACER T.0,90 MM		1
166	60531523	389 262 6354	SPACER T.0,85 MM		1
166	60531522	389 262 6254	SPACER T.0,80 MM		1
167	60531060	389 260 0690	OIL PUMP	OLD TYPE(41)	1
168	60531061	947 269 1001	BODY PUMP	NEW TYPE	1
169	60531063	389 269 0706	ROTOR EST.	NEW TYPE	1
170	60531064	389 269 1406	ROTOR PUMP	NEW TYPE	1
171	60531653	029 997 5748	O-RING 113X2,5		1
172	60531062	945 269 0201	PUMP COVER	NEW TYPE	1
173		001 991 7860	PIN		1
174	98530103	004 981 9225	BEARING 45X75X16 MM		1
175	95570194	000471 045000	SEEGER RING T.1,75 MM		1
176	60531542	389 263 1031	REVERSE GEAR 21 T.		1
