SchemaEuroricambi

(A) TO BE COUPLED TOGETHER
(B) TO BE COUPLED TOGETHER
(1) UP TO GEARBOX 375914
(2) FROM GEARBOX 375915
(3) FROM GEARBOX 380571
(4) UP TO GEARBOX 056545
(5) COLUMN 1 ONLY FOR SERIES: 714.709-782-786-787
(6) COLUMN 2 ONLY FOR SERIES: 714.708-719-790-791
(7) COLUMN 3 ONLY FOR SERIES: 714.780-781-789-794-796-797-798-799
(8) COLUMN 1 ONLY FOR SERIE: 714.709
(9) COLUMN 2 ONLY FOR SERIES: 714.708-719-790-791
(10) COLUMN 3 ONLY FOR SERIES: 714.703-780
(11) UP TO GEARBOX 435049
(12) FROM GEARBOX 435050
(13) UP TO GEARBOX 182425
(14) FROM GEARBOX 182426
(15) UP TO GEARBOX 058288
(16) FROM GEARBOX 058289
(17) COLUMN 1 ONLY FOR SERIES: 714.704-792
(18) COLUMN 2 ONLY FOR SERIES: 714.701-712-713
(19) COLUMN 3 ONLY FOR SERIES: 714.700-795
(20) COLUMN 4 ONLY FOR SERIE: 714.706
(21) COLUMN 2 ONLY FOR SERIES: 714.702-708-710-714-719-790-791
(22) COLUM 4 ONLY FOR SERIE: 714.707
(23) COLUMN 1 ONLY FOR SERIES: 714.705-709-715-716-717
(24) COLUM 3 ONLY FOR SERIES: 714.703-794-796-797
(25) COLUMN 3 ONLY FOR SERIES: 714.703-780-781-789-798-799
(26) COLUMN 1 ONLY FOR SERIES: 714.782-786-787
(27) COLUMN 3 EXCLUDED SERIES: 714.700-974-795-796-797
(28) CHANGE UNTIL THE GEARBOX 182425: 1 PC 60530678 - 389 262 3701 (FIG.33) + 1 PC 60531001 - 018 997 7147 (FIG.34) + 1 PC 60530932 - 389 262 3710 (FIG.51)
(29) UP TO GEARBOX 129658
(30) FROM GEARBOX 129659
(31) UP TO GEARBOX 088147
(32) 60531313 - ***** COMPOSED BY 1 PC 60530720 - 389 262 7710 (FIG.25) + 1 PC 60530518 - 389 262 0637 (FIG.26) + 1 PC 60530991 - 387 262 1093 (FIG.27) + 1 PC 60530715 - 389 262 3023 (FIG.28) + 1 PC 60530685 - 389 262 2901 (FIG.33) + 1 PC 60530518 - 389 262 0637 (FIG.47) + 1 PC 60530991 - 387 262 1093 (FIG.48) + 1 PC 60530679 - 389 262 5634 (FIG.49)
(33) UP TO GEARBOX 297456
(34) FROM GEARBOX 297457
(35) 60531069 - ***** COMPOSED BY: 1 PC 60530679 - 389 262 5634 (FIG.52) + 2 PCS 60530518 - 389 262 0637 (FIG.53) + 2 PCS 60530991 - 387 262 1093 (FIG.54) + 1 PC 60530689 - 389 262 0635 (FIG.56) + 1 PC 60530715 - 389 262 3023 (FIG.57) + 1 PC 60530716 - 389 262 1413 (FIG.62)
(36) 60531068 - ***** COMPOSED BY: 2 PCS 60530521 - 945 262 0434 (FIG.68) + 2 PCS 60531030 - 387 262 0893 (FIG.69) + 2 PCS 60530684 - 389 262 0737 (FIG.70) + 1 PC 60530820 - 389 262 0035 (FIG.72) + 1 PC 60530683 - 389 262 2923 (FIG.73)
(37) COLUMN 1 ONLY FOR SERIES: 714.705-709-715-716-717-782-786-787
(38) COLUMN 2 ONLY FOR SERIES: 714.702-708-710-711-714-719-790-791
(39) COLUMN 3 ONLY FOR SERIES: 714.703-780-781-789-794-796-797-798-799
(40) COLUMN 4 ONLY FOR SERIE: 714.707
(41) COLUMN 1 ONLY FOR SERIES: 714.704-792
(42) COLUMN 2 ONLY FOR SERIES: 714.701-712-713
(43) COLUMN 3 ONLY FOR SERIES: 714.700-795
(44) COLUMN 4 ONLY FOR SERIE: 714.706
(45) 1ST GENERATION: 60531188 - 389 262 0009 (FIG.90) + 60531189 - 389 260 0097 (FIG.95) USED TOGETHER, ARE REPLACED BY THE NEW GENERATION COMPOSED BY 60530728 - 389 262 0409 (FIG.90) + 60530952 - 389 260 0297 (FIG.95)
(46) 60531100 - 389 260 0661 (FIG.94) REPLACED BY 1 PC 60530950 - 389 260 8961 (FIG.94) + 60530951 - 389 260 0497 (FIG.95) + 1 PC 60530727 - 389 262 0209 (FIG.90) + 1 PC 60531331 - 389 262 3754 (FIG.89) + 1 PC 60532038 - 007 994 1841 (FIG.91)
(47) 1ST GENERATION: 60531189 - 389 260 0097 (FIG.95) + 60531188 - 389 262 0009 (FIG.90) USED TOGETHER, ARE REPLACED BY THE NEW GENERATION COMPOSED BY 60530952 - 389 260 0297 (FIG.95) + 60530728 - 389 262 0409 (FIG.90)
(48) UP TO GEARBOX 201817
(49) FROM GEARBOX 201818
(50) ALTERNATIVE VERSION OF 60530907 - 389 262 0537 (FIG.106), PRODUCED USING A DIFFERENT ANTIFRICTION MATERIAL, BUT PERFECTLY INTERCHANGEABLE
(51) UP TO GEARBOX 380570
(52) COLUMN 1 ONLY FOR SERIES: 714.704-705-709-715-716-782-786-787-792 FROM GEARBOX 206785
(53) COLUMN 2 ONLY FOR SERIES: 714.701-702-708-710-719 FROM GEARBOX 206785
(54) COLUMN 3 ONLY FOR SERIES: 714.700-703-780-781-794-797-798 FROM GEARBOX 206785
(55) COLUMN 4 ONLY FOR SERIES: 714.706-707 FROM GEARBOX 206785
(56) 60531315 - ***** (FIG.121) COMPOSED BY: 1 PC 60530686 - 389 260 2036 (FIG.104) + 2 PCS 60531059 - 389 262 0293 (FIG.105) + 2 PCS 60530907 - 389 262 0537 (FIG.106) + 1 PC 60530730 - 389 262 4935 (FIG.107) + 1 PC 60530687 - . 945 262 0823 (FIG.108) + 1 PC 60530737 - 389 262 9134 (FIG.120)
(57) 60531071 - ***** (FIG.122) COMPOSED BY: 1 PC 60530686 - 389 260 2036 (FIG.104) + 2 PCS 60530907 - 389 262 0537 (FIG.106) + 1 PC 60530730 - 389 262 4935 (FIG.107) + 1 PC 60530687 - . 945 262 0823 (FIG.108) + 1 PC 60530680 - 389 262 4034 (FIG.120)
(58) COLUMN 1 ONLY FOR SERIES: 714.717 UP TO GEARBOX 323551
(59) COLUMN 2 ONLY FOR SERIES: 714.711-712-713-714-790-791 UP TO GEARBOX 323551
(60) COLUMN 3 ONLY FOR SERIES: 714.789-795-796-797 UP TO GEARBOX 323551
(61) COLUMN 1 ONLY FOR SERIES: 714.717 FROM GEARBOX 323552
(62) COLUMN 2 ONLY FOR SERIES: 714.711-712-713-714-790-791 FROM GEARBOX 323552
(63) COLUMN 3 ONLY FOR SERIES: 714.789-795-796-797 FROM GEARBOX 323552
(64) UP TO GEARBOX 206784
(65) FROM GEARBOX 206785
(66) COLUMN 1 ONLY FOR SERIES: 714.704-705-709-715-782-787-792
(67) COLUMN 2 ONLY FOR SERIES 714.701-702-708-711-712-713-790
(68) COLUMN 3 ONLY FOR SERIES: 714.700-703-780-781-795-796-798
(69) UP TO GEARBOX DATED 06/96
(70) FROM GEARBOX DATED 07/96
(71) NOT SUPPLIED SEPARATELY, WE SUPPLY: 60531202 - ***** (FIG.98)
(72) UP TO GEARBOX 390225
(73) 60531911 - 945 262 6623 REPLACED BY 1 PC 60531820 - 945 262 6923 (FIG.108) + 1 PC 947 265 2701 (FIG.109) + 1 PC 60530890 - 947 265 0349 (FIG.110)
(74) UP TO GEARBOX 084293
(75) FROM GEARBOX 084294
(76) 60530961 - 389 261 1703 REPLACED BY 1 PC 389 261 2603 + 6 PCS 006 542 8817 (NOT ILLUSTRATED) + 1 PC 000 545 9409 (NOT ILLUSTRATED)
(77) 389 261 2603 REPLACED BY 1 PC 389 261 3303
(78) 389 261 3303 REPLACED BY 1 PC 655 260 3623 + 6 PCS 389 265 2774 (NOT ILLUSTRATED)
(81) CARBON VERSION
(82) MOLYBDENUM VERSION

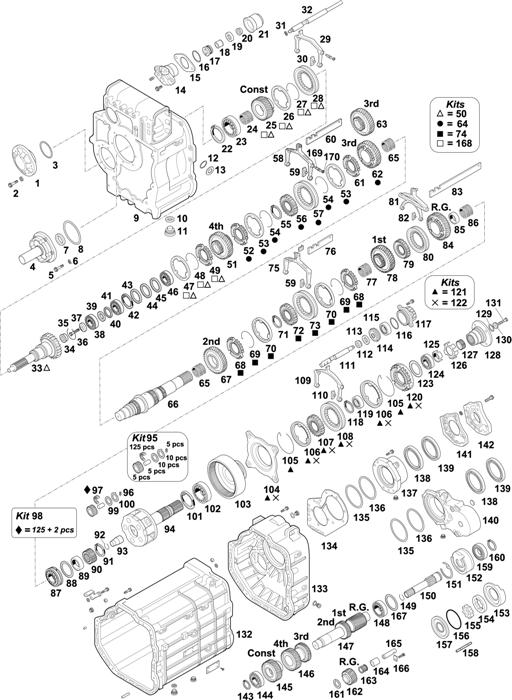

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	60531181	389 261 1933	ALUMINIUM COVER		1
2		000000 000428	SCREW M10X35		6
3	60532173	406 337 0352	SHIM 0,20 MM	(1)	1
3	60532171	406 337 0252	SHIM 0,10 MM	(1)	1
3		389 263 8552	SPACER T.1,36 MM	(2)	1
3		389 263 8352	SPACER T.1,30 MM	(2)	1
3		389 263 8152	SPACER T.1,24 MM	(2)	1
3		389 263 7952	SPACER T.1,18 MM	(2)	1
3		389 263 7752	SPACER T.1,12 MM	(2)	1
3		389 263 7552	SPACER T.1,06 MM	(2)	1
3		389 263 7352	SPACER T.1,00 MM	(2)	1
3		389 263 7152	SPACER T.0,94 MM	(2)	1
3		389 263 6952	SPACER T.0,88 MM	(2)	1
3		389 263 6752	SPACER T.0,82 MM	(2)	1
3		389 263 6552	SPACER T.0,76 MM	(2)	1
3	60532051	389 263 6352	SPACER T.0,70 MM	(2)	1
3	60532259	389 263 6152	SPACER T.0,64 MM	(2)	1
3	60532260	389 263 5952	SPACER T.0,58 MM	(2)	1
3	60532261	389 263 5752	SPACER T.0,52 MM	(2)	1
3	60532262	389 263 5552	SPACER T.0,46 MM	(2)	1
3	60532263	389 263 5352	SPACER T.0,40 MM	(2)	1
4	60531169	389 261 3318	FRONT BEARING COVER		1
5		914141 008312	SCREW M8X35		6
6	60531239	000137 008212	SPACER		6
7	60530993	015 997 1647	OIL SEAL 52X68X8 MM		1
8	60531453	389 262 2454	SPACER T.0,70 MM	(1)	1
8	60532104	389 262 2254	SPACER T.0,60 MM	(1)	1
8	60531454	389 262 2054	SPACER T.0,50 MM	(1)	1
8	60531325	389 262 4452	SPACER T.0,40 MM	(1)	1
8	60531428	389 262 4152	SPACER T.0,10 MM	(1)	1
8	60531954	389 262 4055	WASHER T.0,55 MM	(2)	1
8	60532018	389 262 3955	WASHER T.0,52 MM	(2)	1
8	60532017	389 262 3855	WASHER T.0,49 MM	(2)	1
8	60532016	389 262 3755	WASHER T.0,46 MM	(2)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
8	60532015	389 262 3655	WASHER T.0,43 MM	(2)	1
8	60531434	389 262 3555	WASHER T.0,40 MM	(2)	1
8	60532014	389 262 3455	WASHER T.0,37 MM	(2)	1
8	60532013	389 262 3355	WASHER T.0,34 MM	(2)	1
8	60532012	389 262 3255	WASHER T.0,31 MM	(2)	1
8	60532011	389 262 3155	WASHER T.0,28 MM	(2)	1
8	60531433	389 262 3055	WASHER T.0,25 MM	(2)	1
9		389 261 0308	FRONT HOUSING	(3)	1
10	60532248	007603 024105	WASHER	(4)	1	NSS
11	60531366	210 997 0032	PLUG		1
12	60531642	017 997 7148	SEAL RING	(5,6,7)	1
13	60531644	017 997 1847	SEAL RING 38X28MM	(8,9,10)	1
14	60531498	389 267 2819	CYLINDER		1
15	60531445	387 263 3752	GASKET T.1,00 MM		1
15		387 263 3552	GASKET T.0,60 MM		1
15	60531499	387 263 3452	GASKET T.0,40 MM		1
15	60531444	387 263 3352	GASKET T.0,20 MM		1
16	60531360	007 997 4248	O-RING 63X3		1
17	60531340	945 267 0218	PISTON		1
18	60531359	006 997 6447	OIL SEAL 38,5X41X11,5 MM		1
19	60531179	387 267 0650	BUSH 34X22X8 MM		1
20	60531180	000 267 0197	OIL SEAL 22X32X8 MM		1
21	60530968	389 267 3319	CYLINDER		1
22	60532294	387 262 7573	SEEGER RING T.4,00 MM	(11)	1
22		387 262 7473	SEEGER RING T.3,95 MM	(11)	1
22		387 262 7373	SEEGER RING T.3,90 MM	(11)	1
22	60532293	387 262 7273	SEEGER RING T.3,85 MM	(11)	1
22		387 262 7173	SEEGER RING T.3,80 MM	(11)	1
22		387 262 6973	SEEGER RING T.3,70 MM	(11)	1
22	60531437	387 262 6873	SEEGER RING T.3,65 MM	(11)	1
22	60532292	387 262 9373	SEEGER RING T.3,50 MM	(12)	1
22		387 262 9273	SEEGER RING T.3,45 MM	(12)	1
22		387 262 9173	SEEGER RING T.3,40 MM	(12)	1
22	60532291	387 262 9073	SEEGER RING T.3,35 MM	(12)	1
22		387 262 8973	SEEGER RING T.3,30 MM	(12)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
22		387 262 8873	SEEGER RING T.3,25 MM	(12)	1
22	60531438	387 262 8673	SEEGER RING T.3,15 MM	(12)	1
23	98530179	011 981 1305	BEARING 75X140X34,3 MM		1
24	98530180	009 981 1610	NEEDLE BEARING 85X93X37 W		1
25	60530929	389 262 2910	CONSTANT GEAR 26 T.	(11)	1
25	60530720	389 262 7710	CONSTANT GEAR 26 T.	(12)	1
25	60530930	389 262 2810	CONSTANT GEAR 22 T.	(13)	1
25	60530719	389 262 2210	CONSTANT GEAR 22 T.	(14)	1
26	60530518	389 262 0637	SYNCHRONIZER RING		1
27	60530991	387 262 1093	ELASTIC RING		1
28	60530517	387 262 0523	SLIDING SLEEVE	(15)	1
28	60530811	387 262 1523	SLIDING SLEEVE	(15)	1
28	60530715	389 262 3023	SLIDING SLEEVE 3RD/4TH SP	(16)	1
29	60531496	389 265 0601	SPLITTER SHIFT FORK		1
30	60531039	389 265 2449	SLIDING BLOCK		2
31		387 263 3052	WASHER T.1,00 MM		1
31		387 263 2852	WASHER T.0,60 MM		1
31		387 263 2752	WASHER T.0,40 MM		1
31	60531443	387 263 2652	WASHER T.0,20 MM		1
32	60531284	389 267 2117	ROD	(13,17,18,19,20)	1
32	60531282	389 267 2217	TIE ROD	(14,17,18,19,20)	1
32	60531287	389 267 1917	TIE ROD	(13,21,22)	1
32	60531283	389 267 2017	TIE ROD	(14,21,22)	1
32	60531288	389 267 2917	TIE ROD	(13,23,24)	1
32	60531497	389 267 3017	TIE ROD	(14,23,25)	1
32	60531497	389 267 3017	TIE ROD	(26,27)	1
33	60530936	389 262 1201	INPUT SHAFT	(13)	1
33	60530678	389 262 3701	INPUT SHAFT 60 T.	(28)	1
33	60530685	389 262 2901	INPUT SHAFT 60 T.	(14)	1
34	60531001	018 997 7147	SEAL BAFFLE		1
35	60531368	389 262 0973	ELASTIC RING		1
36	60531476	389 990 0119	SCREW	(29)	1
36	60531170	389 990 1819	SCREW	(30)	1
37	60531171	389 262 0062	WASHER		1
38	98530111	008 981 2805	BEARING 40X91X32 MM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
39	60531333	389 262 6454	SPACER T.2,50 MM		1
39	60531701	389 262 5552	SPACER T.1,20 MM		1
39	60531702	389 262 5652	SPACER T.0,80 MM		1
39	60531477	389 262 5752	SPACER T.0,50 MM		1
39	60531485	389 262 7954	SPACER T.0,30 MM		1
39	60531330	389 262 5952	SPACER T.0,10 MM		1
40	60531446	389 262 3352	SPACER T.2,50 MM		1
40	60531693	389 262 3252	SPACER T.2,00 MM		1
40	60531993	389 262 3152	SPACER T.1,95 MM		1
40	60531694	389 262 3052	SPACER T.1,90 MM		1
40	60532107	389 262 2952	SPACER T.1,85 MM		1
40	60532105	389 262 2455	SPACER T.1,82 MM		1
40	60531500	389 262 2355	SPACER T.1,80 MM		1
40	60532103	389 262 2255	SPACER T.1,76 MM		1
40	60532026	389 262 2155	SPACER T.1,73 MM		1
40	60532102	389 262 2055	SPACER T.1,67 MM		1
40	60532101	389 262 1955	SPACER T.1,64 MM		1
40		389 262 1855	SPACER T.1,61 MM		1
40		389 262 1755	SPACER T.1,58 MM		1
40	60531997	389 262 2352	SPACER T.1,55 MM		1
40		389 262 1655	SPACER T.1,52 MM		1
40	60531695	389 262 1555	SPACER T.1,49 MM		1
40		389 262 1455	SPACER T.1,46 MM		1
40		389 262 1355	SPACER T.1,43 MM		1
40	60531848	389 262 2052	SPACER T.1,40 MM		1
40	60531696	389 262 1952	SPACER T.1,35 MM		1
40	60532027	389 262 2754	SPACER T.1,30 MM		1
40	60532028	389 262 3654	SPACER T.1,25 MM		1
40	60531849	389 262 3554	SPACER T.1,20 MM		1
40	60531697	389 262 3454	SPACER T.1,15 MM		1
40	60531698	389 262 3354	SPACER T.1,10 MM		1
40	60531479	389 262 3254	SPACER T.1,05 MM		1
40	60531478	389 262 2854	SPACER T.0,50 MM		1
41	98530115	002 981 7905	BEARING 50X90X32 MM		1
42	60531482	387 268 1073	SEEGER RING T.3,14 MM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
42	60531481	387 268 0973	SEEGER RING T.3,11 MM		1
42	60531480	387 268 0873	SEEGER RING T.3,08 MM		1
42	60531369	387 268 0773	SEEGER RING T.3,05 MM		1
43		000988 070001	SPACER	(31)	1
43	60531322	389 262 0551	SPACER T.3,20 MM	(31)	1
44		389 262 4951	SPACER T.6,50 MM		1
44		389 262 4751	SPACER T.6,40 MM		1
44		389 262 4551	SPACER T.6,30 MM		1
44		389 262 4351	SPACER T.6,20 MM		1
44		389 262 4151	SPACER T.6,10 MM		1
44	60531952	389 262 3951	SPACER T.6,00 MM		1
44	60532000	389 262 3751	SPACER T.5,90 MM		1
44	60531951	389 262 3551	SPACER T.5,80 MM		1
44		389 262 3351	SPACER T.5,70 MM		1
44	60531953	389 262 3151	SPACER T.5,60 MM		1
44	60531999	389 262 2951	SPACER T.5,50 MM		1
44	60531950	389 262 2751	SPACER T.5,40 MM		1
44	60531442	389 262 1251	SPACER T.2,20 MM		1
44	60531491	389 262 2151	SPACER T.2,15 MM		1
44	60531490	389 262 1151	SPACER T.2,10 MM		1
44	60531489	389 262 2051	SPACER T.2,05 MM		1
44	60531488	389 262 1051	SPACER T.2,00 MM		1
44	60531487	389 262 1951	SPACER T.1,95 MM		1
44	60531486	389 262 0951	SPACER T.1,90 MM		1
44	60531484	389 262 1851	SPACER T.1,85 MM		1
44	60531483	389 262 0851	SPACER T.1,80 MM		1
45	60531184	389 262 1854	SPACER		1
46	98530098	011 981 7705	BEARING 55X90X23 MM		1
47	60530518	389 262 0637	SYNCHRONIZER RING		1
48	60530991	387 262 1093	ELASTIC RING		1
49	60530679	389 262 5634	SYNCHRONIZER CONE		1
50	60531313	*****	REPAIR KIT	(32)	1
51	60530931	389 262 1110	GEAR 4TH SPEED 24 T.	(15)	1
51	60530932	389 262 3710	GEAR 4TH SPEED 24 T.	(13,16)	1
51	60530717	389 262 5510	GEAR 4TH SPEED 24 T.	(14,33)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
145	60530722	389 263 1110	CONSTANT GEAR 23 T.	(14)	1
145	60530943	389 263 0910	CONSTANT GEAR 27 T.	(13)	1
145	60530723	389 263 1210	CONSTANT GEAR 27 T.	(14)	1
146	60530944	389 263 0313	DOUBLE GEAR 21/25 T.	(15)	1
146	60530945	389 263 1013	DOUBLE GEAR 21/25 T.	(13,16)	1
146	60530721	389 263 1413	DBL GEAR 3RD/4TH 25/21 T.	(14)	1
147		389 263 0302	COUNTERSHAFT	(15)	1
147	60530947	389 263 0802	COUNTERSHAFT 17/14 T.	(16)	1
148	98530218	016 981 1205	BEARING 60X130X33,8 MM		1
149	60531550	912009 045100	LOCK RING		1
150	60531903	947 264 0005	OIL PUMP SHAFT	(66,67,68)	1
151		389 262 5154	SPACER T.1,30 MM		1
151		389 262 5254	SPACER T.1,25 MM		1
151		389 262 5354	SPACER T.1,20 MM		1
151		389 262 5454	SPACER T.1,15 MM		1
151		389 262 5554	SPACER T.1,10 MM		1
151		389 262 5654	SPACER T.1,05 MM		1
151		389 262 5754	SPACER T.1,00 MM		1
151	60531525	389 262 5854	SPACER T.0,95 MM		1
151	60531524	389 262 5954	SPACER T.0,90 MM		1
151	60531523	389 262 6354	SPACER T.0,85 MM		1
151	60531522	389 262 6254	SPACER T.0,80 MM		1
152	60531060	389 260 0690	OIL PUMP	OLD TYPE	1
153	60531061	947 269 1001	BODY PUMP	NEW TYPE	1
154	60531063	389 269 0706	ROTOR EST.	NEW TYPE	1
155	60531064	389 269 1406	ROTOR PUMP	NEW TYPE	1
156	60531653	029 997 5748	O-RING 113X2,5		1
157	60531062	945 269 0201	PUMP COVER	NEW TYPE	1
158		001 991 7860	PIN		1
159	98530103	004 981 9225	BEARING 45X75X16 MM		1
160	95570194	000471 045000	SEEGER RING T.1,75 MM		1
161	60530691	389 263 0062	THRUST WASHER	(69)	1
162	60531029	389 263 0331	REVERSE GEAR	OLD(69)	1
162	60530948	389 263 1531	REVERSE GEAR 18 T.	NEW(70)	1
163	98530101	012 981 8910	NEEDLE BEARING 42X50X51 W		1
