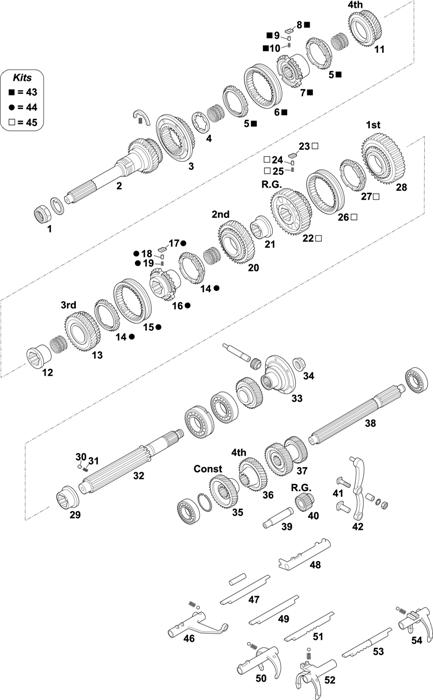

Fig.

Our No.

Part No.

Description

Notes

Q.ty

60530750

385 990 0351

NUT

60530044

337 262 0902

INPUT SHAFT 18 T.

(5)

60530108

302 262 1502

INPUT SHAFT 18 T.

(1,6)

60530047

337 262 1234

SYNCHRONIZER CONE

60530165

317 262 4262

THRUST WASHER T.7,00 MM

60530058

322 262 0237

SYNCHRONIZER RING

60530060

337 262 0223

SLIDING SLEEVE

60530062

337 262 0735

SYNCHRONIZER HUB

60530232

337 262 0140

SLIDE

60530233

337 262 0174

60530234

337 993 5001

SPRING

60530048

337 260 3044

GEAR 4TH SPEED 23 T.

60530162

337 262 2750

BUSH T.43,00 MM

60530049

337 262 2850

BUSH T.43,10 MM

60530050

337 262 0713

GEAR 3RD SPEED 28 T.

60530059

322 262 0137

SYNCHRONIZER RING

60530481

321 262 1537

SYNCHRONIZER RING 3 HOLES

60530061

321 262 1223

SLIDING SLEEVE

60530063

337 262 0635

SYNCHRONIZER HUB

60530235

321 262 1040

SLIDE

60530236

321 262 0774

60530237

321 993 0701

SPRING

60530051

337 262 0512

GEAR 2ND SPEED 32 T.

60530052

383 262 1450

BUSH T.50,60 MM

60530163

383 262 1350

BUSH T.50,50 MM

60530053

337 263 0633

REVERSE GEAR 36 T.

60530238

321 262 0940

SLIDE

60530239

321 262 0674

60530237

321 993 0701

SPRING

60530134

321 262 1123

SLIDING SLEEVE

60530059

322 262 0137

SYNCHRONIZER RING

60530481

321 262 1537

SYNCHRONIZER RING 3 HOLES

60530054

337 262 0711

GEAR 1ST SPEED 39 T.

327 262 2450

BUSH T.49,40 MM

Last update 01/2014

Fig.

Our No.

Part No.

Description

Notes

Q.ty

60530055

327 262 2550

BUSH T.49,50 MM

60530210

327 262 2650

BUSH T.49,60 MM

60530330

385 262 1074

60530665

312 993 1701

SPRING

60530045

337 262 0505

MAIN SHAFT

(2)

60530393

344 262 0145

OUTPUT FLANGE D.150

(5)

60530090

322 262 0045

OUTPUT FLANGE D.120

(3,6)

60530071

352 262 0045

OUTPUT FLANGE D.130

(4,6)

60530046

322 262 0072

NUT

(2)

60530064

337 263 0810

CONSTANT GEAR 31 T.

(1)

60530065

337 263 0814

GEAR 4TH SPEED 27 T.

60530066

337 263 0713

DOUBLE GEAR 22/17 T.

60530067

337 263 0702

COUNTERSHAFT 11 T.

60530172

337 263 0430

REVERSE SHAFT

60530068

337 260 1625

REVERSE GEAR 20 T.

60530466

302 265 0074

BOLT

60530320

321 265 0208

REV.SELECTOR LEVER

60530230

337 260 1445

SYNCHRONIZER ASSY 4TH/5TH

60530191

337 260 1345

SYNCHRONIZER ASSY 2ND/3RD

60530231

337 260 1525

SYNCHRONIZER ASSY 1ST

60530198

337 265 0103

REVERSE FORK

60530318

337 265 0305

REV. TIE ROD

60530662

322 265 0123

SELECTOR SHAFT

60530430

321 265 0805

TIE ROD 1ST SPEED

60530131

322 265 0401

FORK 2ND/3RD SPEED

60530257

337 265 0505

TIE ROD 2ND/3RD SPEED

60530192

337 265 0902

FORK 3RD/4TH SPEED

60530209

337 260 0131

CONTROL ROD 4TH/5TH SPEED

60530141

322 265 0501

FORK 1ST SPEED

(1) FROM GEARBOX 021811
(2) FROM GEARBOX 031876
(3) UP TO GEARBOX 001782
(4) FROM GEARBOX 001783
(5) ONLY FOR SERIE 713.301
(6) ONLY FOR SERIE 713.200
