(ABCDEFG) TO BE COUPLED TOGETHER
(HLMN) TO BE COUPLED TOGETHER
(*) TO BE COUPLED TOGETHER
(**) TO BE COUPLED TOGETHER
(***) TO BE COUPLED TOGETHER
(1) WITH EK330/340
(2) WE SUPPLY THE ALTERNATIVE VERSION EURORICAMBI P/n. 98531243 (NOT ILLUSTRATED IN THIS CATALOGUE) PERFECTLY INTERCHANGEABLE
(3) WITH PROMINENT CLUTCH
(4) W/OUT PROMINENT CLUTCH
(5) MULTIPLE REPLACEMENT WE SUPPLY DIRECTLY THE SYNCHRO KIT 74530513 ***** (FIG.43) COMPOSED BY: 1 PC 1533 848 (FIG.40) + 1 PC 1529 950 (FIG.42)
(6) WE SUPPLY ALSO THE KIT 74530513 ***** COMPOSED BY 1 PC 1533 848 (FIG.40) + 1 PC 1529 950 (FIG.42)
(7) MULTIPLE REPLACEMENT, WE SUPPLY: 1 PC 1387 296 (FIG.49) + 1 PC 1376 499 (FIG.38) + 1 PC 1387 297 (FIG.66)
(8) 1ST GENERATION WITH 8,5° TAPER
(9) 2ND GENERATION WITH 8,5° TAPER
(10) 3RD GENERATION WITH 7,5° TAPER. NEW ITEMS WITH 7,5° TAPER ARE NOT INTERCHANGEABLE WITH OLD ONES WITH 8,5° TAPER
(11) REPLACED BY 1 PC 1334 035 (FIG.89) + 1 PC 1334 195 (FIG.88) + 2 PCS 814 822 (NOT ILLUSTRATED)
(12) WE SUPPLY THE RING WHEEL KIT 74530531 - 1790 598 (FIG.107) COMPOSED BY 6 PCS 1395 039 (FIG.103) + 6 PCS 1332 508 (FIG.104) + 12 PCS 871 702 (FIG.105) + 1 PC 1118 030 (FIG.106)
(13) MULTIPLE REPLACEMENT WE SUPPLY THE NEW REPAIR KIT 74530480 ***** COMPOSED BY 1 PC 1323 147 (FIG.117) + 1 PC 1323 145 (FIG.118) + 1 PC 1302 665 (FIG.119) + 2 PCS 1305 111 (FIG.137) + 2 PCS 1305 109 (FIG.138)
(14) REPLACED BY 1 PC 1426 759 (FIG.122) + 1 PC 1426 758 (FIG.121)
(15) WITH VOITH RETARDER
(16) WE ALTERNATIVELY SUPPLY THE OLD VERSION 1320 436 PERFECTLY INTERCHANGEABLE
(17) WE ALTERNATIVELY SUPPLY THE OLD VERSION 1319 645 PERFECTLY INTERCHANGEABLE
(18) 74530480 *****COMPOSED BY 1 PC 1323 147 (FIG.117) + 1 PC 1323 145 (FIG.118) + 1 PC 1302 665 (FIG.119) + 2 PCS 1305 111 (FIG.137) + 2 PCS 1305 109 (FIG.138)
(19) 1318 221 COMPOSED BY: 1 PC 1525 988 (FIG.146) + 5 PCS 1318 714 (FIG.110) + 1 PC 1316 875 (FIG.123) + 5 PCS 1318 713 (FIG.111) + 10 PCS 389 419 (FIG.112) + 5 PCS 389 434 (FIG.113) + 5 PCS 1373 174 (FIG.114)
(20) 1318 225 COMPOSED BY: 1 PC 1525 988 (FIG.146) + 5 PCS 1318 714 (FIG.110) + 5 PCS 1318 713 (FIG.111) + 10 PCS 389 419 (FIG.112) + 5 PCS 389 434 (FIG.113) + 5 PCS 1373 174 (FIG.114)
(21) WE SUPPLY ONLY THE VERSION 1305 676 (FIG.136), WITH PLASTIC COAT AS ORIGINAL PRODUCTION
(22) PREPARED FOR TELMA RETARDER
(23) OLD STYLE
(24) NEW STYLE
(25) IF NOT AVAILABLE PLEASE ASK FOR EURORICAMBI P/n. 98531243 (NOT ILLUSTRATED IN THIS CATALOGUE) PERFECTLY INTERCHANGEABLE
(26) NOT SUPPLIED SEPARATELY, WE SUPPLY THE COMPLETE BEARING EURORICAMBI P/n. 98531243 (NOT ILLUSTRATED IN THIS CATALOGUE)
(27) 16 PCS ROLLER
(28) 17 PCS ROLLER
(29) WE ALTERNATIVELY SUPPLY THE OLD VERSION 1903 570 (FIG.68), PERFECTLY INTERCHANGEABLE
(30) WE SUPPLY THE ALTERNATIVE VERSION: 98531243 (NOT ILLUSTRATED IN THIS VERSION) PERFECTLY INTERCHANGEABLE
(31) 4TH GENERATION WITH 7,5° TAPER
(32) 74530793 *****COMPOSED BY 1 PC 1788 170 (FIG.117) + 1 PC 1323 145 (FIG.118) + 1 PC 1302 665 (FIG.119) + 2 PCS 1305 111 (FIG.137) + 2 PCS 1305 109 (FIG.138)
(33) 74530794 *****COMPOSED BY 1 PC 1883 350 (FIG.117) + 1 PC 1323 145 (FIG.118) + 1 PC 1302 665 (FIG.119) + 2 PCS 1305 111 (FIG.137) + 2 PCS 1305 109 (FIG.138)
(34) 74530795 *****COMPOSED BY 1 PC 1926 256 (FIG.117) + 1 PC 1323 145 (FIG.118) + 1 PC 1302 665 (FIG.119) + 2 PCS 1305 111 (FIG.137) + 2 PCS 1305 109 (FIG.138)

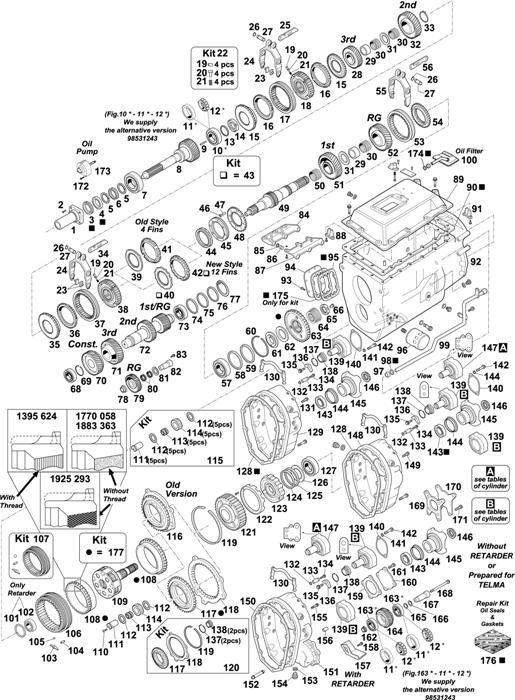

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
78		378 614	WASHER		1
79	74530507	1302 789	REVERSE GEAR 23 T.		1
80	98531258	378 615	NEEDLE BEARING 50X62X22		2
81	74530674	380 109	SPACER		1
82	74530375	1510 337	REVERSE PIN		1
83		812 534	SCREW M10X20		1
84		1323 191	SUPPORT		1
85	74530677	1105 290	ELASTIC RING		3
86	74530671	1105 279	PIN		3
87		1323 192	SUPPORT		1
88		1334 195	SUPPORT		1
88		1122 671	SUPPORT	BUS ONLY	1
89		1123 693	COVER	OLD(11)	1
89		1334 035	COVER	NEW	1
90	74530332	1549 495	GASKET		1
91		1334 194	SUPPORT		1
92		1338 671	GEARBOX HOUSING		1
92		1778 893	GEARBOX HOUSING		1
93		812 534	SCREW M10X20		8
94		1321 629	COVER		1
95	74530330	1302 556	GASKET		1
96	74530506	1768 402	OIL FILTER		1
97		1110 341	BUSH		1
98	74530328	810 958	O-RING 11,3X2,4 MM		1
99		1394 627	OIL TUBE		1
100		1307 097	OIL FILTER		1
101		1316 456	RETAINER RING		1
102	98530333	1300 596	BEARING 72X110X22 MM		1
103	74530316	1395 039	SPRING		6
104	74530317	1332 508	PIN		6
105	74530318	871 702	BALL		12
106	74530459	1118 030	CROWN GEAR 66 T.	(12)	1
107	74530531	1790 598	RING WHEEL KIT		1
108	74530399	1395 624	SYNCHRONIZER RING	(H)(8)	2
108	74530527	1770 058	SYNCHRONIZER RING	(L)(9)	2

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
108	74530646	1883 363	SYNCHRONIZER RING	(M)(10)	2
108	74530713	1925 293	SYNCHRONIZER RING	(N)(31)	2
109	74530460	1318 221	COMPLETE PLANET CARRIER	(19)	1
109	74530465	1318 225	COMPLETE PLANET CARRIER	(20)	1
110	74530286	1318 714	SCREW M6X11		5
111	74530461	1318 713	PLANET SHAFT		5
112	74530712	1422 910	THRUST WASHER T.2,00 MM		1
113	74530463	389 434	NEEDLE BEARING		5
114	74530464	1373 174	PLANETARY GEAR 20 T.		5
115	74530280	*****	REPAIR KIT		1
116	74530400	1308 176	SYNCHRONIZER CONE	(13)	1
117	74530466	1323 147	SYNCHRONIZER CONE	(H)(8)	1
117	74530526	1788 170	SYNCHRONIZER CONE	(L)(9)	1
117	74530645	1883 350	SYNCHRONIZER CONE	(M)(10)	1
117	74530705	1926 256	SYNCHRONIZER CONE	(N)(31)	1
118	74530467	1323 145	COUPLING DISK		1
119	74530479	1302 665	RETAINER RING D.240 MM		1
120	74530480	*****	REPAIR KIT	(18)	1
120	74530793	*****	REPAIR KIT	(32)	1
120	74530794	*****	REPAIR KIT	(33)	1
120	74530795	*****	REPAIR KIT	(34)	1
121	74530299	1426 758	RETARDER GEAR 70 T.		1
122		1304 745	CROWN GEAR	(14)	1
122	74530499	1426 759	CROWN GEAR		1
123	74530287	1316 875	PROTECTION		1
124	74530673	1333 430	LOCK RING D.130 MM		1
125		1109 027	RING		1
126	74530339	1104 034	SPACER T.0,25 MM		1
126	74530338	1104 035	SPACER T.0,30 MM		1
126	74530372	1104 036	SPACER T.0,40 MM		1
127	98530017	1783 324	BEARING 60X130X31 MM		1
128	74530327	1305 139	GASKET		1
129		1328 043	COVER		1
129		1404 505	COVER	(22)	1
130		1491 403	LEVER		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
131		812 539	SCREW M10X40		12
131		815 794	SCREW M10X100		1
132	74530682	804 658	O-RING 15,30X2,4 MM
133		1740 439	CYLINDRICAL PIN
134		812 515	SCREW M8X16
135		1320 671	SCREW
136		L 1305 676	SLIDING BL.(MOLYBD.COAT.)	(21)
136	74530323	1305 676	SLIDING BL.(PLASTIC COAT)
137	74530477	1305 111	RETAINER RING		2
138	74530478	1305 109	BUSH		2
139	74530402	1484 809	CYLINDER		1
140		1331 329	COVER		1
141		807 324	WASHER		4
142		812 527	SCREW M8X70		4
143	74530630	1502 384	OIL SEAL 85X105X12/18 MM		1
144	74170073	1300 977	SEAL RING 119X133,5X14,5		1
145		1358 431	OUTPUT FLANGE	(15)	1
145	74170554	1340 753	OUTPUT FLANGE	P30/300	1
145	74170555	1320 436	OUTPUT FLANGE	OLD	1
145	74170835	1422 427	OUTPUT FLANGE	P40/400(16)	1
145	74170508	1319 645	OUTPUT FLANGE	OLD	1
145	74170836	1422 430	OUTPUT FLANGE	P50/500(17)	1
145	74170509	1319 646	OUTPUT FLANGE	P60/600	1
146	74170278	1525 988	GROOVED NUT M44X1,5		1
147	74530401	1484 808	CYLINDER		1
148		1404 505	COVER		1
148		1404 506	COVER	(22)	1
149		812 539	SCREW M10X40		13
150	74530327	1305 139	GASKET		1
151		1332 546	COVER	(F)(23)	1
151		1376 914	COVER	(G)(24)	1
152		1338 647	TUBE		1
153	74530519	1304 914	O-RING 21,3X2,4 MM		2	NSS
154	74530363	1778 167	PLUG		2
155		812 539	SCREW M10X40		12

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
155		812 549	SCREW M10X100		1
156		1304 911	PIN
157		1334 214	PLATE	(F)(23)	1
157		1377 990	PLATE	(G)(24)	1
158		812 515	SCREW M8X16	(F)(23)
158		805 619	SCREW M8X20	(G)(24)
159		1329 577	GASKET		1
160		1752 453	COVER		1
161		812 534	SCREW M10X20		4
162		1308 167	SLEEVE		1
163	98530008	361 043	BEARING 40X85X33,04 MM	OLD TYPE(2)	2
163	98530459	1548 817	BEARING 40X85X33,04 MM	LATEST(30)	1
164	74530523	1373 704	GEAR 34 T.		1
165		1308 170	SHIM 0,40 MM		1
166		1308 168	WASHER		1
167		1304 747	SHAFT		1
168		814 886	SCREW M10X130		1
169		1320 443	GASKET		1
170		1321 630	COVER		1
171		815 047	SCREW M12X25		4
172		812 509	SCREW M6X45		3
173	74530296	1426 449	OIL PUMP W/GASKET		1
174	74530329	804 660	O-RING 19,2X3 MM		1	NSS
175	74530629	1305 673	GASKET		1	NSS
176	74530617	550 578	GASKET KIT		1
177	74530881	*****	REPAIR KIT	(N)	1
