SchemaEuroricambi

(AB) TO BE COUPLED TOGETHER
(CD) TO BE COUPLED TOGETHER
(EFG) TO BE COUPLED TOGETHER
(1) UP TO GEARBOX 6104102
(2) FROM GEARBOX 6104103
(3) REPLACE THE OLD VERSION 338 044.THE NEW VERSION 1321 891 MUST BE USED ONLY WITH RIVET 807 946 (FIG.103)
(6) WE ALTERNATIVELY SUPPLY THE OLD VERSION 332 904 (FIG.127)
(7) 194 755 (FIG.151) CONTAINING 4 PCS OF 234 324 (FIG.155)
(8) 328 118 (FIG.151) CONTAINING 4 PCS OF 234 324 (FIG.155)
(9) 351 227 (FIG.160) CONTAINING 4 PCS OF 234 324 (FIG.164)
(10) REPLACED BY 1 PC 1312 886 (FIG.8) + 1 PC 1309 563 (FIG.5)
(12) REPLACED BY 1 PC 1313 632 (FIG.73) + 10 PCS 394 576 (FIG.75)

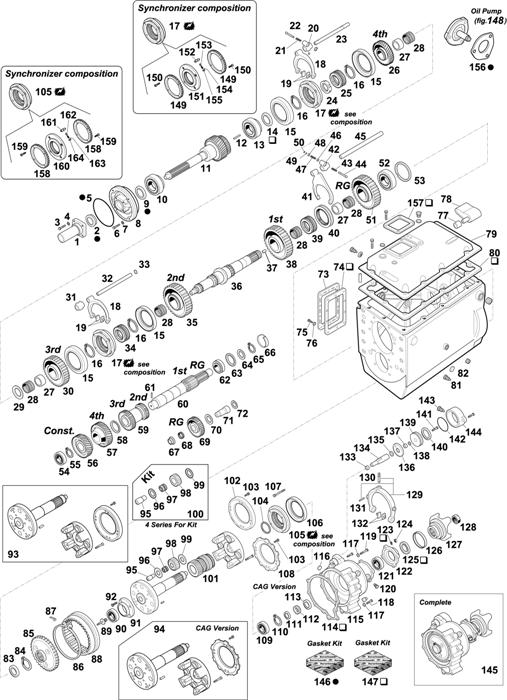

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	74520018	1103 619	FRONT BEARING COVER		1
2	74530256	315 270	RING	(EF)	1
3		808 295	SCREW M8X22		4
4		802 998	WASHER 8,4X16X1,6		4
5	74530254	194 414	RING 203X3 MM	(E)	1
5	74530268	1309 563	RING 200X5 MM	(F)	1
6		814 876	SCREW M10X50		4
7		127 394	WASHER		4
8		334 389	FRONT BEARING COVER	(1,10)	1
8	74530350	1312 886	FRONT BEARING COVER	(2)	1
9	74530124	388 528	SEAL RING 45X65X10 MM	(EF)	1
10	98530011	1121 538	BEAR. 76,2X139,7X36,5 MM		1
11	74530141	294 899	INPUT SHAFT 23 T.		1
11	74530155	294 896	INPUT SHAFT 23 T.		1
12	74530064	315 060	OIL TUBE		1
13	98531247	284 843	BEARING 40X80X32 MM		1
14	74530241	315 022	SEAL RING 68X80X8 MM	(G)	1
15	74530102	325 113	SYNCHRONIZER	(A)	4
15	74530094	332 118	SYNCHRONIZER	(B)	4
16		53 113	RETAINER RING		4
17	74530002	244 990	SYNCHRONIZER ASSY	(A)(C)	2
17	74530061	328 117	SYNCHRO.2ND/3RD/4TH/5TH	(B)(D)	2
18	74530282	369 570	FORK		2
19	74530389	244 090	SLIDE		4
20		194 439	SHIFTING BLOCK		1
21		392 993	SPRING		1
22		194 441	SLIDE		1
23		337 537	TIE ROD 4TH/5TH		1
24	74530048	194 484	NUT		1
25	74530050	224 086	HUB		1
26	74530157	322 808	GEAR 4TH SPEED 25 T.		1
26	74530140	234 914	GEAR 4TH SPEED 26 T.		1
27	74530063	194 376	BUSH		3
28	98530038	194 413	NEEDLE BEARING 70X78X46 W		5

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
29	74530415	264 225	SPACER T.8,00 MM		1
30	74530138	325 252	GEAR 3RD SPEED 29 T.		1
31		294 436	SHIFTING BLOCK 2ND/3RD		1
32		338 721	TIE ROD 2ND/3RD		1
33		812 319	PLUG Ø 22,00 MM		4
34	74530088	224 087	HUB		1
35	74530205	328 382	GEAR 2ND SPEED 35 T.		1
36	74530207	324 288	MAIN SHAFT		1
37		164 056	PLUG		1
38	74530153	264 883	GEAR 1ST SPEED 39 T.		1
39	74530190	224 125	HUB		1
40	74530413	194 578	SLIDING SLEEVE		1
41		254 515	FORK		1
42		315 623	SHIFTING BLOCK		1
43		392 994	SPRING		1
44		315 624	SLIDE		1
45		338 786	TIE ROD		1
46		315 626	WASHER		1
47		392 995	SPRING		1
48		315 628	WASHER		1
49		315 629	RETAINER RING		1
50		812 348	RETAINER RING		1
51	74530192	254 527	REVERSE GEAR 39 T.		1
52	98530021	284 997	BEARING 57X119,9X32,75 MM		1
53	74530624	284 813	SHIM 0,25 MM
53	74530625	284 814	SHIM 0,30 MM
53	74530626	284 815	SHIM 0,40 MM
54	98530023	317 350	BEARING 50X90X28 MM		1
55		284 693	LOCK RING		1
56	74530139	304 622	CONSTANT GEAR 43 T.		1
57	74530208	322 809	GEAR 4TH SPEED 40 T.		1
57	74530204	194 564	GEAR 4TH SPEED 37 T.		1
58		194 601	SPACER		1
59	74530142	325 255	DOUBLE GEAR 2ND/3RD 17/25		1
60	74530156	284 807	COUNTERSHAFT 10/10 T.		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
61		340 430	PIN		1
62		294 023	BEARING		1
63		284 820	SHIM 0,20 MM
63		284 818	SHIM 0,25 MM
63		284 819	SHIM 0,30 MM
64		324 245	WASHER		1
65		324 235	LOCK RING		1
66		324 237	WASHER		1
67		194 798	WASHER		1
68	74530407	174 371	NEEDLE BEAR.50X38X32,8 MM		1
69	74530037	264 688	REVERSE GEAR 23 T.		1
70		194 400	WASHER		1
71		358 046	REVERSE PIN		1
72		810 974	O-RING		1
73		164 060	COVER	OLD(12)	1
73		1313 632	COVER	NEW	1
74	74530264	164 061	GASKET	(G)	1
75		394 574	SCREW M10X14		10
75		394 576	SCREW M10X18		10
76		127 394	WASHER		10
77		234 136	RUBBER HOSE		1
78		224 367	OIL FILTER		1
79		389 006	COVER		1
80	74530258	387 314	GASKET	(G)	1
81		235 434	MAGNETIC OIL PLUG		1
82		163 257	OIL PLUG		3
83		324 244	WASHER		1
84		294 998	LOCK RING		1
85	74530411	324 285	HUB		1
86	74530522	164 939	RETAINER RING		1
87		164 940	LOCK PLATE		1
88	74530412	164 016	CROWN GEAR 59 T.		1
89		324 278	SCREW		1
90		324 273	BEARING		1
91		342 831	BEARING CAGE		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
92		808 292	SCREW M8X14		4
93	74530158	358 173	OUTPUT SHAFT ASSY		1
94		358 174	OUTPUT SHAFT ASSY	CAG	1
95	74530404	324 260	PIN		4	NSS
96	74530406	324 240	WASHER		4	NSS
97	74530407	174 371	NEEDLE BEAR.50X38X32,8 MM		4
98	74530405	164 030	PLANETARY GEAR 19 T.		4
99	74530403	324 241	WASHER		4	NSS
100	74530408	*****	REPAIR KIT		1
101	74530409	1302 774	SUN GEAR		1
102	74530266	1321 891	SYNCHRONIZER CONE	(3)	1
103	74530270	807 946	RIVET M5X12		8	NSS
104		324 258	RING		1
105	74530206	333 906	SYNCHRONIZER		1
106	74530160	324 267	SYNCHRONIZER CONE		1
107		324 279	SCREW		4
108		1327 984	SYNCHRONIZER CONE	CAG	1
109		1302 858	BEARING		1
110		349 594	RETAINER RING		1
111		324 246	SPACER		1
112	74530390	174 806	SPEEDOMETER GEAR		1
113		151 099	SPACER		1
114	74530263	387 311	GASKET	(G)	1
115		357 806	PLANETARY GEAR CASE EMPTY		1
115		391 562	PLANETARY GEAR CASE EMPTY	CAG	1
116		324 242	PLUG		1
117	74170224	147 537	THRUST WASHER		10
118		814 847	SCREW M12X15		2
119		814 898	SCREW M12X100		8
120	74530081	294 427	PIN		2
121		32 302	BEARING		1
122		324 253	COVER		1
123	74170224	147 537	THRUST WASHER	(G)	4
124		815 125	NUT		4
125	74530262	1335 243	SEAL RING 80X100X15 MM	(G)OLD	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
125	74530035	338 643	SEAL RING 80X100X12 MM	NEW	1
126	74170072	1307 760	SEAL RING		1
127		338 233	OUTPUT FLANGE	P/PF30	1
127		1360 485	OUTPUT FLANGE	P/PF30	1
127	74170172	332 904	OUTPUT FLANGE	OLD P/PF40	1
127	74170277	1360 235	OUTPUT FLANGE	NEW P/PF40(6)	1
128	74170144	315 085	GROOVED NUT M50X1,5		1
129	74530410	332 565	COMPLETE FORK		1
130	74530134	343 132	PIN		1	NSS
131	74530278	804 955	LOCK PIN D.5X24		1
132	74530389	244 090	SLIDE		2
133		148 722	BUSH		1
134		360 578	YOKE BAR		1
135		804 664	O-RING 29,2X3 MM		1
136		324 281	WASHER		1
137		324 247	SHIM
138		804 884	O-RING 17,1X1,6 MM		1
139		357 804	PISTON		1
140	74530492	1474 732	O-RING 58,2X5,70		1
141		324 270	SCREW		1
142		368 030	O-RING 79,5X3 MM		1
143		1324 462	CONNECTOR		2
143		1324 463	CONNECTOR		2
144		1333 189	CYLINDER		1
145		570 598	REDUCTION UNIT		1
145		570 599	REDUCTION UNIT	CAG	1
146	74530234	550 520	GASKET KIT	(E)	1
146	74530267	550 537	GASKET KIT	(F)	1
147	74530261	550 533	GASKET KIT	(G)	1
148	74530040	194 838	OIL PUMP		1
149	74530003	264 895	SYNCHRONIZER CONE	(C)	2
149	74530097	325 215	SYNCHRONIZER CONE	(D)	2
150	74530009	244 967	SCREW M6X48	(CD)	4
151	74530004	194 755	SLIDING SLEEVE	(C)(7)	1
151	74530098	328 118	SLIDING SLEEVE	(D)(8)	1
