(ABCD) TO BE COUPLED TOGETHER
(1) ONLY FOR BUS VERSION FROM AXLE 8894427
(2) 1368 206 (FIG.50) REPLACED BY 1 PC 1528 478 (FIG.50) + 12 PCS 1525 451 (FIG.32) + 12 PCS 1525 452 (FIG.33)
(3) 1368 208 (FIG.50) REPLACED BY 1 PC 1528 479 (FIG.50) + 12 PCS 1525 451 (FIG.32) + 12 PCS 1525 452 (FIG.33)
(4) FOR EUROPE VEHICLES
(5) 550 814 COMPOSED BY 1 PC : 174 716 (FIG.8) + 1489 006 (FIG.16) + 1911 811 (FIG.27) + 1105 776 (FIG.51) + 1746 781 (FIG. 49)
(6) WITH OR WITHOUT DIFF.BLOCK
(7) FOR NEW STYLE HALF HOUSING 1528 478 (FIG.50) AND 1528 479 (FIG.50)
(8) WE SUPPLY THE NEW REFERENCE 1420 749 (FIG.31) COMPOSED BY SCREW (FIG.29) + WASHER (FIG.30)
(9) WITHOUT DIFF.BLOCK
(10) FOR AUTOBUS
(11) MARKET FOR LATIN AMERICA
(12) FOR BUSES FROM CHASSIS: CH 1870461 - SSS / CH 3670600 SLA
(13) FOR BUSES FROM CHASSIS: CH 1868394 - SSS / CH 3661892 SLA
(14) FOR BUSES FROM CHASSIS: CH 1853915 - SSS
(15) WE ALTERNATIVELY SUPPLY THE OLD VERSION 1320 436 PERFECTLY INTERCHANGEABLE
(16) WE ALTERNATIVELY SUPPLY THE OLD VERSION 1319 645 PERFECTLY INTERCHANGEABLE
(17) 74171010 ***** COMPOSED BY: 2 PCS 1368 087 (FIG.35) + 1 PC 1369 558 (FIG.37) + 1 PC 1369 559 (FIG.38) + 4 PCS 1779 528 (FIG.40) + 4 PCS 1331 044 (FIG.41) + 1 PC 1785 126 (FIG.39)
(18) COMPOSED BY 1 PC 1300 977 (FIG.3)

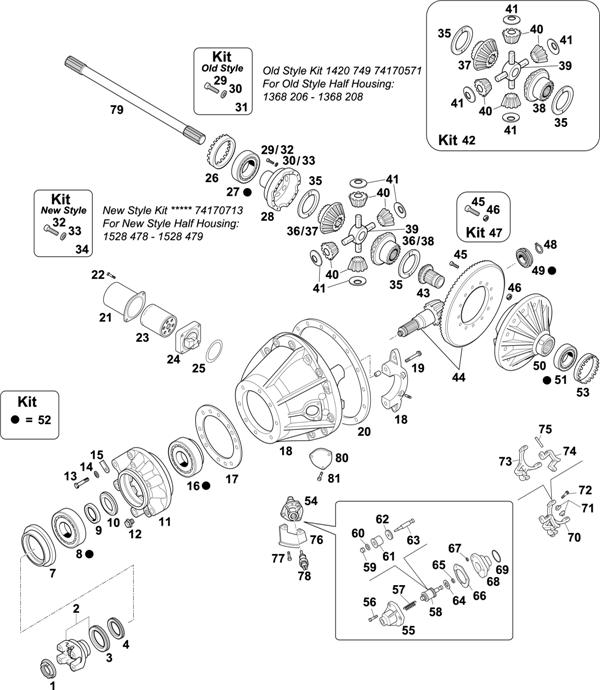

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	74170278	1525 988	GROOVED NUT M44X1,5		1
2	74170554	1340 753	OUTPUT FLANGE	P300-24SPL	1
2	74170835	1422 427	OUTPUT FLANGE	P400-24SPL(15)	1
2	74170555	1320 436	OUTPUT FLANGE	P400(18)	1
2	74170836	1422 430	OUTPUT FLANGE	P500-24SPL(16)	1
2	74170508	1319 645	OUTPUT FLANGE	P500(18)	1
2		1340 992	OUTPUT FLANGE	P540-24SPL	1
3	74170073	1300 977	SEAL RING 119X133,5X14,5		1
4	74170362	1502 385	SEAL RING 85X105X12/18 MM		1
7	74170241	1779 939	PROTECTION		1
8	98170004	174 716	BEARING 60X130X33,5 MM		1
9	74170820	1305 098	SHIM 3,00 MM
9		1305 099	SHIM 3,01 MM
9		1305 100	SHIM 3,02 MM
9		1305 101	SHIM 3,03 MM
9		1305 102	SHIM 3,04 MM
9		1305 103	SHIM 3,05 MM
9	74171165	1305 104	SHIM 3,06 MM
9		1305 105	SHIM 3,07 MM
9		1305 106	SHIM 3,08 MM
9		1305 107	SHIM 3,09 MM
10		1367 522	SPACER T.10,80 MM
10		1367 523	SPACER T.10,90 MM
10		1367 524	SPACER T.11,00 MM
10		1367 525	SPACER T.11,10 MM
10		1367 526	SPACER T.11,20 MM
10		1367 528	SPACER T.11,40 MM
11		1322 842	BEARING HOUSING EMPTY		1
12		1861 370	PLUG		1
12		813 140	PLUG		1
13		2025 595	SCREW		6
13		814 909	SCREW M14X60		6
14		803 005	WASHER 15X26 MM		6
15		1351 961	PLATE		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
16	98170039	1489 006	BEARING 62X147X50 MM		1
17		1325 643	SHIM 0,10 MM
17		1325 642	SHIM 0,25 MM
17		1325 641	SHIM 0,40 MM
17		1325 640	SHIM 0,50 MM
18		1322 056	GEAR HOUSING	(4,6)	1
18		1516 597	GEAR HOUSING	(9,11)	1
18		1401 515	GEAR HOUSING	(1)	1
18		1322 056	GEAR HOUSING		1
19		358 277	SCREW		4
20		1745 935	GASKET		1
21		1541 341	COVER		1
22		1528 270	SCREW		2
23	74530506	1768 402	OIL FILTER		1
24		1878 844	OIL COLLECTOR	(A)	1
24		1878 845	OIL COLLECTOR	(B)	1
24		1878 846	OIL COLLECTOR	(B)	1
25	74170435	368 033	RING 109,5X3 MM		1
26		1323 858	GROOVED NUT		1
27	98170036	1911 811	BEARING 85X130X36 MM		1
28	74170633	1368 527	HALF HOUSING		1
29	74170573	364 665	SCREW M16X85	(C)(8)		NSS
30	74170572	364 666	WASHER	(C)(8)		NSS
31	74170571	1420 749	SCREW M16X2X85 W/WASHER	(C)	12
32	74170719	1525 451	SCREW 16X1,5X90	(D)OLD	12
32		2026 443	SCREW	(D)NEW	12
33	74170720	1525 452	WASHER T.4,00 MM	(D)	12
34	74170713	*****	KIT (12 WASHER +12 SCREW)	(D)(7)	1
35	74170563	1368 087	THRUST WASHER		2
36		1371 583	SIDE GEAR	OLD	2
36		1779 525	SIDE GEAR	NEW	2
36	74170564	1369 558	SIDE GEAR W/OUT LOCK 18T.	OLD	2
36	74171173	1779 524	SIDE GEAR W/OUT LOCK 18T.	NEW	2
36	74171163	1545 508	SIDE GEAR W/OUT LOCK	(11)	2
37	74170564	1369 558	SIDE GEAR W/OUT LOCK 18T.	OLD	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
37	74171173	1779 524	SIDE GEAR W/OUT LOCK 18T.	NEW	1
37	74171163	1545 508	SIDE GEAR W/OUT LOCK	(11)	1
38	74170569	1369 559	SIDE GEAR WITH LOCK 18 T.	OLD	1
38	74171174	1779 526	SIDE GEAR WITH LOCK 18 T.	NEW	1
38	74171164	1545 510	SIDE GEAR WITH LOCK	(11)	1
39	74170784	1785 126	SPIDER		1
40	74170565	1779 528	DIFF. PINION 11 T.		4
40	74171172	1545 514	DIFF. PINION 11 T.	(11)	4
41	74170566	1331 044	THRUST WASHER		4
42	74171010	*****	DIFFERENTIAL GEAR KIT	(17)	1
43	74170568	1375 404	HUB		1
44	74170632	1347 485	CROWN WHEEL/PINION 38:13	(A) R.2,92	1
44		1504 083	MILLED CWP R.2,92	(A)OLD(14)	1
44		2025 581	CROWN WHEEL/PINION R.2,92	(A)NEW	1
44	74170561	1331 059	CROWN WHEEL/PINION 43:14	(A) R.3,07	1
44		1503 411	CROWN WHEEL/PINION R.3,07	(A)OLD	1
44		2024 172	CROWN WHEEL/PINION R.3,07	(A)NEW(10)	1
44	74170631	1331 064	CROWN WHEEL/PINION 41:12	(A) R.3,42	1
44	74170639	1345 286	CROWN WHEEL/PINION 38:10	(B)R.3,80	1
44	74170643	1331 074	CROWN WHEEL/PINION 38:9	(B)R.4,22	1
44	74170647	1331 079	CROWN WHEEL/PINION 39:8	(B)R.4,88	1
44		1936 071	CROWN WHEEL/PINION R.4,88	(B)NEW(12)	1
44	74170821	1367 089	CROWN WHEEL/PINION 39:7	OLDR.5,57B	1
44		1801 515	CROWN WHEEL/PINION	NEWR.5,57B(13)	1
44		1931 480	CROWN WHEEL/PINION R.5,57	(B)LATEST	1
45	74170537	1527 209	SCREW M18X60X1,5MM		12
46	74170538	394 852	NUT M18X1,5		12
47	74170063	*****	NUTS+SCREWS KIT 18X60X1,5		1
48		804 784	LOCK RING		1
49	98170070	1746 781	BEARING 38X94X33 MM		1
50	74170634	1368 206	HALF HOUSING	(AC)OLD(2)	1
50	74170808	1528 478	HALF HOUSING	(AD)NEW	1
50		1891 239	HALF HOUSING	(AD)LATEST	1
50	74170635	1368 208	HALF HOUSING	(BC)OLD(3)	1
50	74170809	1528 479	HALF HOUSING	(BD)NEW	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
50		1891 240	HALF HOUSING	(BD)LATEST	1
51	98170069	1105 776	BEARING 100X155X36 RH		1
52	98170068	550 814	BEARINGS KIT	(5)	1
53		1323 860	GROOVED NUT		1
54		2030 276	COMPLETE CYLINDER		1
55		1744 388	COVER		1
56		1369 946	SCREW M5X18		2
57		377 008	SPRING		1
58		2030 889	COMPLETE PISTON		1
59		815 124	NUT M10		1
60		803 000	WASHER 10,5X18		1
61		1515 263	SPACER SLEEVE		1
62		1515 262	PISTON		1
63		1869 381	PULL ROD		1
64		315 527	O-RING 47X5,34 MM		1
65	74170943	1925 433	SEAL RING		1
66		1515 265	GASKET		1
67		804 864	O-RING 4,3X2,4 MM		1
68		1872 267	COMPLETE CYLINDER		1
69		1401 460	O-RING 75,3X2,40 MM		1
70	74170729	1122 871	COMPLETE FORK		1
71	74170679	1731 567	SLIDING BLOCK		2
72		809 829	SCREW M10X40		2
73	74170503	1103 385	FORK		1
74	74170852	1115 757	SUPPORT		1
75	74170851	1115 762	PIN		1
76		1528 639	SUPPORT		1
77		812 520	SCREW M8X35		3
78		1472 738	SWITCH		1
79	74171162	1371 672	DRIVE SHAFT		2
79	74170680	1368 178	DRIVE SHAFT L=1084 MM		2
80		1321 136	COVER		1
81		808 294	SCREW		3
