(ABCD) TO BE COUPLED TOGETHER
(EF) TO BE COUPLED TOGETHER
(1) 1ST GENERATION WITH 8,5°TAPER
(2) 2ND GENERATION WITH 8,5°TAPER
(3) 3RD GENERATION WITH 7,5°TAPER.NEW ITEMS WITH 7,5° TAPER ARE NOT INTERCHANGEABLE WITH OLD ONES WITH 8,5°TAPER
(4) WE SUPPLY THE RING WHEEL COMPLETED 74530531 - 1790 528 (FIG.107) COMPOSED BY 6 PCS 1395 039 (FIG.104) + 6 PCS 1332 508 (FIG.105) + 12 PCS 871 702 (FIG.106)
(5) MULTIPLE REPLACEMENT: 1 PC 1828 871 (FIG.64) + 1 PC 1828 869 (FIG.66)
(6) MULTIPLE REPLACEMENT: 1 PC 1828 869 (FIG.66) + 1 PC 1828 871 (FIG.64)
(8) WE SUPPLY THE ALTERNATIVE VERSION: 98531243 (NOT ILLUSTRATED IN THIS VERSION)
(9) WE SUPPLY THE ALTERNATIVE VERSION: 98530340 - 392 996 (FIG.25)
(10) WE SUPPLY THE ALTERNATIVE VERSION: 1903 570 (FIG.84)
(11) 4TH GENERATION WITH 7,5°TAPER

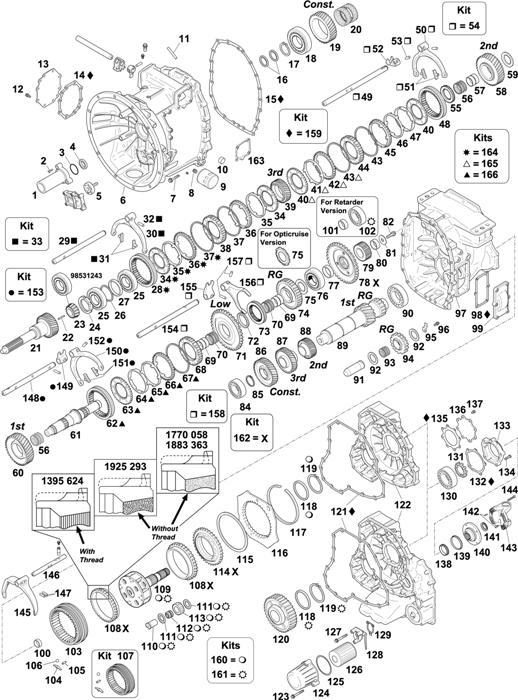

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
26		1104 069	SHIM 0,30 MM
26		1104 070	SHIM 0,40 MM
26		1104 071	SHIM 0,50 MM
27	74530784	1302 731	SHIM 9,50 MM
27	74530785	1302 732	SHIM 9,52 MM
27	74530786	1302 733	SHIM 9,54 MM
27	74530787	1302 734	SHIM 9,56 MM
27	74530788	1302 735	SHIM 9,58 MM
28	74530668	1752 963	SLIDING SLEEVE		1
29		1526 222	TIE ROD		1
30	74530728	1479 104	FORK		1	NSS
31	74530727	1526 229	SLIDING BLOCK		2
32	74530726	811 824	LOCK PIN		1	NSS
33		1790 582	COMPLETE FORK		1
34	74530649	1495 269	RING		2
35	74530650	1849 451	SYNCHRONIZER RING		2
36	74530651	1543 357	SYNCHRONIZER RING		2
37	74530669	1730 173	RING		2
38	74530541	1788 922	SYNCHRONIZER HUB		1
39	74530734	1919 174	GEAR 3RD SPEED 32 T.	OLD	1
39		2028 686	GEAR 3RD SPEED	NEW	1
39		1938 972	GEAR 3RD SPEED		1
40	74530649	1495 269	RING		2
41	74530650	1849 451	SYNCHRONIZER RING		1
42	74530651	1543 357	SYNCHRONIZER RING		1
43	74530669	1730 173	RING		2
44	74530541	1788 922	SYNCHRONIZER HUB		1
45	74530561	1543 359	SYNCHRONIZER RING		1
46	74530661	1849 454	INTERMEDIATE RING		1
47	74530662	1849 457	SYNCHRONIZER CONE		1
48	74530668	1752 963	SLIDING SLEEVE		1
49		1752 838	TIE ROD		1
50	74530728	1479 104	FORK		1	NSS
51	74530727	1526 229	SLIDING BLOCK		2
52	74530725	1479 099	SHIFTING FORK		1	NSS

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
77	74530753	1511 808	SHIM 13,50 MM		1
77		2026 131	SHIM 13,66 MM		1
77	74530754	1511 809	SHIM 14,00 MM
78		1491 227	SYNCHRONIZER CONE	(A)(1)	1
78	74530528	1788 171	SYNCHRONIZER CONE	(B)(2)	1
78	74530647	1883 352	SYNCHRONIZER CONE	(C)(3)	1
78	74530762	1926 257	SYNCHRONIZER CONE	(D)(11)	1
79	74530792	2034 857	SUN GEAR 24 T.		1
80		1408 485	SPACER		1
81	74530657	1902 198	WASHER		1	NSS
82	74530658	1887 739	SCREW M20X55-CL.8.8		1	NSS
84	98530399	1534 829	BEARING 50X100X40 MM	17 ROLLER(10)	1
84	98530005	1903 570	BEARING 50X100X36 MM	16 ROLLER	1
85	74530672	1116 481	LOCK RING		1
86	74530556	2028 674	CONSTANT GEAR 42 T.		1
86	74530732	1750 421	CONSTANT GEAR 34 T.	OLD	1
86		2028 687	GEAR 3RD SPEED	NEW	1
86		1946 107	CONSTANT GEAR		1
87	74530736	1919 170	GEAR 3RD SPEED 34 T.	OLD	1
87		2028 687	GEAR 3RD SPEED	NEW	1
87		1938 973	GEAR 3RD SPEED		1
88	74530563	1750 423	GEAR 2ND SPEED 26 T.		1
88		1943 877	GEAR 2ND SPEED		1
89	74530755	1770 208	COUNTERSHAFT 12/20 T.		1
89		2034 854	COUNTERSHAFT		1
90	98531229	1357 711	BEARING 60X130X33,5 MM		1
91	74530659	1525 575	REVERSE SHAFT		1
92	74530674	380 109	SPACER		2
93	98531258	378 615	NEEDLE BEARING 50X62X22		2
94	74530714	1476 272	REVERSE GEAR 22 T.		1
95	74530575	1796 994	SHOCKABSORB. BRACKET		1	NSS
96	74530576	1404 026	SCREW M10X20-CL.8.8		1	NSS
97	74530565	1864 528	GEARBOX HOUSING	OLD	1	NSS
97		2067 064	GEARBOX HOUSING	NEW	1
98	74530581	1407 551	GASKET		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
127	74530702	1755 678	SCREW M8X50-CL.8.8		3	NSS
128	74530703	1534 757	OIL LEVER		1	NSS
129	74530704	1762 704	GASKET		1	NSS
130	98530017	1783 324	BEARING 60X130X31 MM		1
131	74530698	1494 422	CROWN GEAR		1	NSS
132	74530760	1520 796	GASKET		1
133		1743 484	COVER		1
134	74530587	812 541	SCREW M10X50-CL.8.8		5	NSS
135	74530759	1491 382	GASKET		1
136		1491 381	COVER		1
137	74530593	812 536	SCREW M10X25-CL.8.8		8	NSS
138	74530630	1502 384	OIL SEAL 85X105X12/18 MM		1
139	74170073	1300 977	SEAL RING 119X133,5X14,5		1
140		1868 016	FLANGE	P602	1
141	74170278	1525 988	GROOVED NUT M44X1,5		1
142		803 470	PIN		2
143		1531 005	FLANGE	P602	1
144		1725 236	SCREW		4
145	74530715	1523 647	FORK		1
146	74530660	1853 331	TIE ROD		1	NSS
147	74530716	811 810	LOCK PIN		2	NSS
148		1752 836	TIE ROD		1
149	74530723	1479 100	SHIFTING FORK		1	NSS
150	74530729	1479 106	FORK		1	NSS
151	74530727	1526 229	SLIDING BLOCK		2
152	74530726	811 824	LOCK PIN		2	NSS
153		1790 581	COMPLETE FORK		1
154	74530720	1752 837	REVERSE ROD		1	NSS
155	74530721	1479 102	SHIFTING FORK		1	NSS
156	74530656	1801 113	REVERSE FORK		1	NSS
157	74530726	811 824	LOCK PIN		2	NSS
158		1790 583	COMPLETE FORK		1
159	74530764	*****	GASKET KIT		1
160		1790 596	PLANET CARRIER COMPLETE	(E)	1
161		1790 597	PLANET CARRIER COMPLETE	(F)	1
