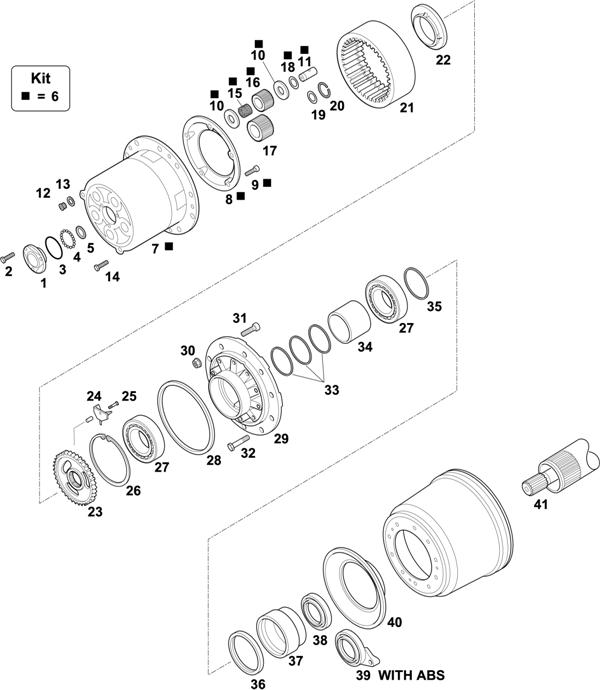

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1		1772 205	COVER		1
2		808 296	SCREW M8X25		3
3	74530597	1503 399	O-RING D.84X3		1
4	74530318	871 702	BALL
5		1414 583	ELASTIC RING		1
6	74170998	1884 682	HUB COMPLETE R.1:3,81	(1)	1
7	74171005	1865 885	WHEEL HUB EMPTY		1
8	74171006	1392 084	OIL COLLECTOR		1	NSS
9	74171007	1748 793	SCREW M6X12		5	NSS
10	74170957	1392 093	WASHER		10
11	74170959	1414 539	PIN		5
12		1414 580	PLUG		1
13		810 964	O-RING 17,3X2,4		1
14		808 296	SCREW M8X25		3
15	74170958	1414 529	NEEDLE KIT (44 PCS)		5
16	74170955	1414 526	PLANETARY GEAR 18 T.		5
17	74170956	1414 588	SUN GEAR 21 T - 22 SPL	OLD	1
17	74171136	1926 832	SUN GEAR 21 T - 32 SPL	NEW	1
18	74171008	804 891	O-RING		5	NSS
19		1120 869	RING	OLD	1
19		1926 852	RING	NEW	1
20		1549 076	RING		1
21	74170960	1414 527	OUTSIDE GEAR 59 T.		1
22		1392 073	NUT	RH	1
22		1392 074	NUT	LH	1
23	74170999	1414 528	CARRIER HUB H=57,00 MM		1
24		1772 712	OIL COLLECTOR		1
25		802 191	SCREW M6X30		1
26	74171001	1776 079	ELASTIC RING		1
27	98170034	1911 810	BEARING 100X165X47 MM		2
28	74170504	392 309	O-RING		1
29		1471 623	WHEEL HUB	OLD	1
29		1814 214	WHEEL HUB	NEW(2)	1
29		1942 755	WHEEL HUB	LATEST	1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
30		1749 034	NUT		1
31		1368 694	SCREW L=96,00 MM	(3)	10
31		1868 668	SCREW L=96,00 MM	(3)	10
31		1420 775	SCREW L=113 MM	(4)	10
31		1847 739	SCREW L=113,00 MM	(4)	10
32		1357 378	SCREW		10
33		1361 836	SHIM 1,00 MM
33		1361 837	SHIM 1,05 MM
33		1361 838	SHIM 1,20 MM
33		1361 839	SHIM 1,30 MM
34		1361 797	BUSH		1
35	74170699	276 587	O-RING		1
36	74170116	1907 845	OIL SEAL 158X188X16 MM		1
37		1305 322	TOOTH WHEEL	WITH ABS	1
38		1530 106	SPACER	W/OUT ABS	1
39		1883 636	SPACER	WITH ABS	1
40		328 609	OIL COLLECTOR	W/OUT ABS	1
40		334 040	OIL COLLECTOR		1
40		1868 357	OIL COLLECTOR		1
41	74170143	1851 412	DRIVE SHAFT 22 T.	OLD	1
41	74171134	1926 815	DRIVE SHAFT 32 T.	NEW	1
41	74171050	1796 006	DRIVE SHAFT 22 T.	OLD	1
41	74171135	1926 816	DRIVE SHAFT 32 T.	NEW	1

(1) INCLUDING (FIG.7) 1865 885 1 PC - (FIG.8) 1392 084 1 PC - (FIG.9) 1748 793 5 PCS - (FIG.10) 1392 093 10 PCS - (FIG.11) 1414 539 5 PCS - (FIG.15) 1414 529 5 PCS - (FIG.16) 1414 526 5 PCS - (FIG.18) 804 891 5 PCS
(2) 1814 214 (FIG.29) REPLACED BY: 1 PC 1942 755 (FIG.29) + 1 PC 1868 357 (FIG.40) + 10 PCS 1868 668 (FIG.31) TOGETHER WITH STEEL RIM AND REPLACED BY 1942 755 (FIG.29) + 1 PC 1868 357 (FIG.40) + 10 PCS 1847 739 (FIG.31) TOGETHER WITH ALUMINIUM RIM
(3) STEEL WHEELS
(4) ALUMINUM WHEELS
