SchemaEuroricambi

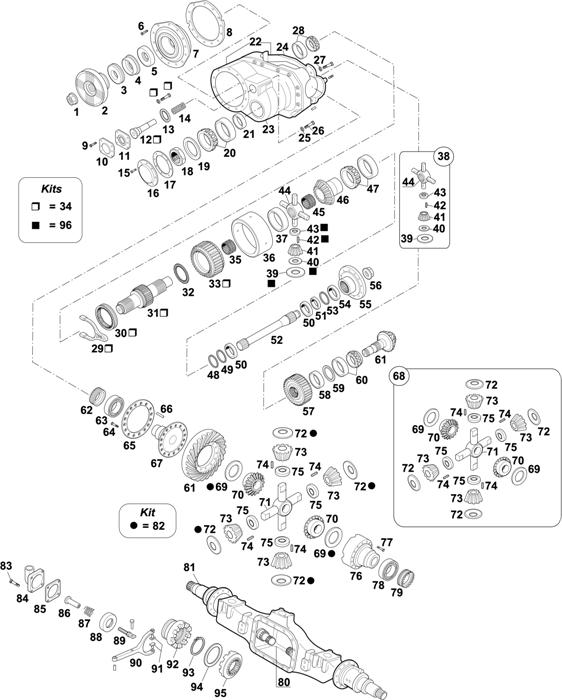

Fig.	Our No.	Part No.		Description	Notes	Q.ty	TP
1	88530608	8171338		GROOVED NUT		1
2		20706810		FLANGE		1
3		1672045		DUST COVER		1
4		3192514		DUST COVER		1
5	88170497	3192615		OIL SEAL 90X151X10 MM		1
6		965192		SCREW M12X40		12
7		1673075		COVER		1
8		1524900		WASHER T.0,55 MM
8		1524898		WASHER T.0,45 MM
8		1524897		WASHER T.0,40 MM
8		1524896		WASHER T.0,35 MM
8		1524895		WASHER T.0,30 MM
8		1069122		WASHER T.0,25 MM
9		945444		SCREW M8X25		4
10		20706809		COVER		1
11		20545485		GASKET		1
12		20508967		PISTON	(B)	1
13		20545487		RING		1
14		1524891		SPRING		1
15		945444		SCREW M8X25		6
16		3192161		COVER		1
17		3192160		GASKET		1
18	88530355	1522293		NUT		1
19	88530543	948650		SPACER		1
20	98170151	184633		BEAR. 60,3X130,2X36,5 MM		1
21		20477904		SPACER T.7,82 MM		1
21		20477903		SPACER T.7,80 MM		1
21		20477902		SPACER T.7,78 MM		1
21		20477901		SPACER T.7,76 MM		1
21		20477900		SPACER T.7,62 MM		1
21		20477899		SPACER T.7,54 MM		1
22		1524862		DIFF.HOUSING	(A)	1
22		20503253		DIFF.HOUSING	(B)	1
23		1524864		HOUSING	(A)	1

Last update 01/2014

Fig.	Our No.	Part No.		Description	Notes	Q.ty	TP
23		20503261		HOUSING	(B)	1
24		1524868		CARTER	(1)	1
25		20487921		NUT	(B)	1
26		20487859		SCREW	(B)	1
27		946304		WASHER 21X36X3 MM		4
28		1524058		BEARING		1
29	88170457	3152715		FORK	(B)	1
30	88170423	3152714		SLIDING CLUTCH	(B)	1
31	88170424	20480075		DIFFERENTIAL SHAFT	(B)	1
32	98170161	1524879		AXIAL NEEDLE B. 80X105X4		1
33	88170425	8172930		GEAR 16/31 T.	(B)	1
34		20509338		DIFF.GEAR KIT		1
35	98170162	1524881		NEEDLE BEARING 75X83X46		1
36	88170363	1524888		RING		1
37	88170496	1524882		SHIM		1
38	88170367	3092577		DIFFERENTIAL GEAR KIT	OLD	1
38		21302536		DIFFERENTIAL GEAR KIT	NEW	1
39	88170368	1524887		THRUST WASHER	OLD	4
39		20565923		THRUST WASHER	NEW	4
40	88170369	1524885		SPACER		4
41	88170370	1524886		DIFF. PINION 9 T.		4
42	88170157	1522345		ROLLER 2,5X27,8		184
43	88170371	1524884		RING		4
44	88170372	1524883		SPIDER		1	NSS
45	98170050	181632		NEEDLE BEARING 50X57X36		1
46	88170426	1524889		SIDE GEAR 16 T. -19 SPL.		1
47	98170180	1524061		BEARING 80X125X29 MM		1
48		949321		RETAINER RING 46,19X50X3		1
49		1523988		RING		1
50		1524988		BEARING		2
51		1524842		SPACER		1
52	88170428	1524837		AXLE HALF SHAFT 19/19 T.		1
53		914542		RING 91,8X85X3		1
54	88170455	1524838		OIL SEAL 65,50X102X9,5 MM		1
55		21713143		OUTPUT FLANGE		1

Last update 01/2014

Fig.	Our No.	Part No.		Description	Notes	Q.ty	TP
56		1673393		NUT		1
57	88170427	1524953		GEAR 31 T.		1
58		1524870		SPACER T.63,30 MM		1
58		1524996		SPACER T.62,80 MM		1
58		1524997		SPACER T.62,30 MM		1
59		941293		SHIM 1,00 MM
59		941292		SHIM 0,35 MM
59		948599		SHIM 0,15 MM
59		941291		SHIM 0,10 MM
60		181396		BEARING 75X160X40 MM
61	88170512	1524957		CROWN WHEEL/PINION R.3,61	(C)	1
61	88170515	1524907		CROWN WHEEL/PINION R.3,76	(D)	1
61	88170442	1524908		CROWN WHEEL/PINION 25:21	(D)	1
61		1524909		CROWN WHEEL/PINION R.4,55	(E)	1
61	88170436	1524910		CROWN WHEEL/PINION 25:16	(E)R.5,41	1
61	88170365	1524911		CROWN WHEEL/PINION 25:12	(E)R.7,21	1
62	88170461	1673664		DIFF. BEARING ADJUSTER		1
63	98170163	1524857		BEARING 85X150X38,50 MM		1
64		963310		SCREW M16X35	(CD)	10
64		963311		SCREW M16X40	(E)	10
65	88170929	1524861		LOCK PLATE		1
66		950677		PIN 16X35 MM	(CD)	10
66		950679		PIN 16X40 MM	(E)	10
67		1524958		DIFF.HOUSING	(C)	1
67		1524855		DIFF.HOUSING	(D)	1
67	88170463	1524856		DIFFERENTIAL HALF HOUSING	(E)	1
68	88170434	20523491		DIFF.GEAR KIT		1
69	88170179	1524716		THRUST WASHER		6
70	88170178	20503270		SIDE GEAR 16 T - 16 SPL.	OLD	2
70	88170178	20503270		SIDE GEAR 16 T - 16 SPL.	NEW
71	88170177	1522343		SPIDER		1
72	88170181	1522347		THRUST WASHER		4
73	88170180	20503268		DIFF. PINION 11 T.	OLD	4
73	88170180	20503268		DIFF. PINION 11 T.	NEW
74	88170157	1522345		ROLLER 2,5X27,8		145

Last update 01/2014

Fig.	Our No.	Part No.		Description	Notes	Q.ty	TP
75	88170182	1522344		SPACER		4
76	88170464	1524854		DIFFERENTIAL HALF HOUSING		1
77		959281		SCREW M16X70		12
78	98170164	184623		BEARING 85X130X29 MM		1
79	88170465	1673663		DIFF. BEARING ADJUSTER		1
80		1524843		DRIVE SHAFT	LEFT	1
80		3191860		DRIVE SHAFT	LEFT	1
80	88170922	3191864		DRIVE SHAFT	LEFT	1
81		1524844		DRIVE SHAFT	RIGHT	1
81	88170924	3191861		DRIVE SHAFT	RIGHT	1
81		1524848		DRIVE SHAFT	RIGHT	1
81	88170927	3191865		DRIVE SHAFT	RIGHT	1
82	88170837	20580182		WASHERS KIT DIFF.		1
83		945444		SCREW M8X25		4
84		20706809		COVER		1
85		3152046		DIAPHRAGM		1
86		3152044		SLEEVE DIAPHRAGM		1
87		3152042		SPRING		1
88		20545488		MENBRANE		1
89		3152163		TIE ROD		1
90		1069372		FORK		1
91		1523087		SLIDE		2
92		1522354		DIFF.LOCK SLEEVE		1
93		914480		SEEGER RING T.2,50 MM		1
94		1522355		WASHER		1
95		1522353		DIFF.LOCK SLEEVE		1
96	88170467	*****		DIFFERENTIAL GEAR KIT		1

Note

(A) CHID A-554147
(B) CHID A-554148
(CDE) TO BE COUPLED TOGETHER
(1) FOR 1524862 (FIG.22)
