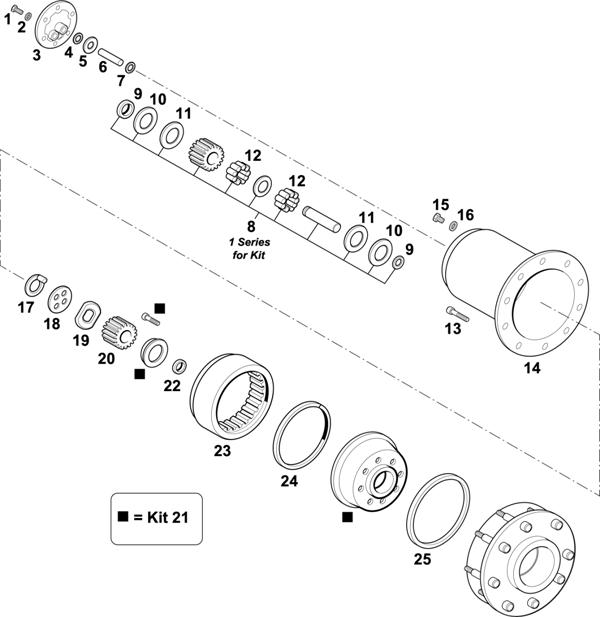

Fig. Our No. Part No. Description Notes Q.ty TP
1 966378
SCREW M8X16 1
*
 *
 *








2 88500050 941907
WASHER T. 8,4X15X0,8 MM 6 NSS
 *
 *
 *








3 88170462 3192819
COVER 1
*
 *
 *








4 955891
WASHER T.0,80 MM
*
 *
 *








5 8171169
MAGNET
*
 *
 *








6 1523115
PIN L=55 MM 1
*
 *
 *








6 1523116
PIN L= 60 MM 1
*
 *
 *








7 967581
RETAINER RING 1
*
 *
 *








8 88170189 273934
REPAIR KIT 3 OR 4
*
 *
 *








9 88170175 949721
SEAL RING 26,2X3 MM 3 OR 4
*
 *
 *








10 88170171 8171165
STEEL WASHER T.1,00 MM 6 OR 8
*
 *
 *








11 88170172 8171167
WASHER T.1,00 MM 6 OR 8
*
 *
 *








12 88170173 1522387
ROLLER 114 OR 152 *
 *
 *








13 959238
SCREW M10X25 2
*
 *
 *








14 88170305 3191853
HUB EMPTY 1
*
*








14 88170306 3191854
WHEEL HUB 1
*









15 981281
SCREW M24X1,5 1
*
 *
 *








16 949329
GASKET 24X29 1
*
 *
 *








17 914532
SEEGER RING T.2,00 MM 1
*
 *
 *








18 88170346 1522393
SHIM 1
*
 *
 *








19 1673500
WASHER 1
*
 *
 *








20 88170211 1522382
SUN GEAR 26 T 1
*
 *
 *








21 88170446 21007487
CARRIER HUB KIT 1
*
 *
 *








22 88170880 1522373
OIL SEAL 50X65X8 MM 1 *
 *
 *








23 88170212 1522380
OUTSIDE GEAR 64 T 1
*
 *
 *








24 88170307 1522392
RETAINER RING 1 *
 *
 *








25 88170881 982108
O-RING 248X3 1 *
 *
 *
