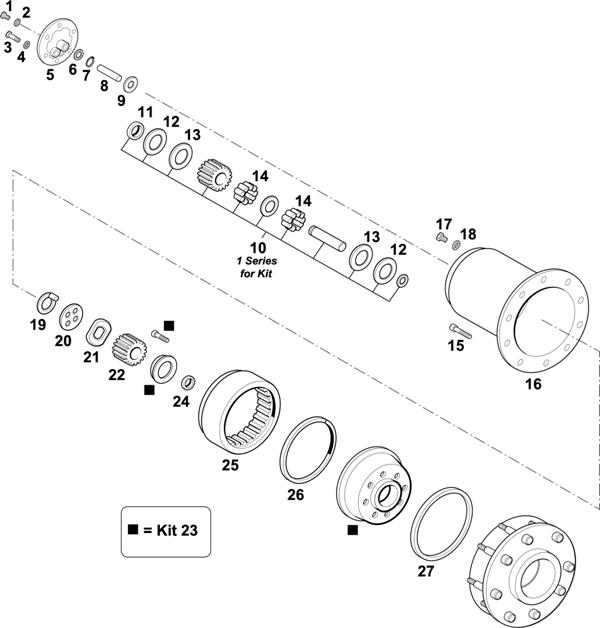

Fig. Our No. Part No. Description Notes Q.ty TP
1 981280
PLUG 1
*
 *









2 957187
WASHER 1
*
 *









3 966378
SCREW M8X16 6
*
 *









4 88500050 941907
WASHER T. 8,4X15X0,8 MM 6 NSS
 *
 *









5 88170462 3192819
COVER 1
*
 *









6 955891
WASHER T.0,80 MM
*
 *









7 967581
RETAINER RING 1
*
 *









8 1523115
PIN L=55 MM 1
*
 *









8 1523116
PIN L=60 MM 1
*
 *









9 8171169
MAGNET 1
*
 *









10 88170189 273934
REPAIR KIT 1
*
 *









11 88170175 949721
SEAL RING 26,2X3 MM 1
*
 *









12 88170171 8171165
STEEL WASHER T.1,00 MM 2
*
 *









13 88170172 8171167
WASHER T.1,00 MM 2
*
 *









14 88170173 1522387
ROLLER 38 *
 *









15 959238
SCREW M10X25 2
*
 *









16 88170305 3191853
HUB EMPTY 1
*










16 88170306 3191854
WHEEL HUB 1
*









16 8172777
HUB EMPTY 1
*










16 8172776
HUB EMPTY 1

*









17 981281
SCREW M24X1,5 1
*
 *









18 949329
GASKET 24X29 1
*
 *









19 914532
SEEGER RING T.2,00 MM 1
*
 *









20 88170346 1522393
SHIM 1
*
 *









21 1673500
WASHER 1
*
 *









22 88170211 1522382
SUN GEAR 26 T 1
*
 *









23 88170446 21007487
CARRIER HUB KIT 1
*
 *









24 88170880 1522373
OIL SEAL 50X65X8 MM 1 *
 *









25 88170212 1522380
OUTSIDE GEAR 64 T 1
*
 *









26 88170307 1522392
RETAINER RING 1 *
 *









27 88170881 982108
O-RING 248X3 1 *
 *
