(ABC) A = 11,46-0,85 / B = 13,68-1,00 / C = 14,29-0,82
(1) WITH INPUT SHAFT 1297 202 004 (FIG.18)
(2) WITH INPUT SHAFT 1297 202 052 (FIG.18)
(3) WITH INPUT SHAFT 1297 202 008 (FIG.18)
(4) WITH INPUT SHAFT 1297 202 045 (FIG.18)
(5) WITH INPUT SHAFT 1297 202 053 (FIG.18)
(6) WITH INPUT SHAFT 1297 202 063 (FIG.18)
(7) WITH INPUT SHAFT 1297 202 014 (FIG.18)
(8) WITH INPUT SHAFT 1297 202 011 (FIG.18)
(9) WITH INPUT SHAFT 1297 202 062 (FIG.18)
(10) WITH INPUT SHAFT 1297 202 046 (FIG.18)
(11) ONLY FOR INPUT SHAFT 1297 202 011-014-045-046-053-062-063
(12) ONLY FOR INPUT SHAFT 1297 202 004-008-052
(13) ONLY FOR INPUT SHAFT 1297 221 006
(14) WITH 0730 062 579 (FIG.6)
(15) WITH 0730 061 816 (FIG.6)
(17) SHAVED VERSION
(21) COMPOSED BY SHIMS (FIG.70)
(22) COMPOSED BY SEEGER RINGS (FIG.71)
(23) NOT SUPPLIED SEPARATELY, WE SUPPLY: 95531642 - 1499 298 003 (FIG.8)
(24) NOT SUPPLIED SEPARATELY, WE SUPPLY: 95531650 - 1499 298 002 (FIG.8)
(25) NOT SUPPLIED SEPARATELY, WE SUPPLY: 95531382 - 1499 298 001 (FIG.8)
(26) PERFECTLY INTERCHANGEABLE TO: 95532421 - 1304 304 686 (FIG.17)
(27) PERFECTLY INTERCHANGEABLE TO: 95530642 - 1295 304 004 (FIG.17)
(28) PERFECTLY INTERCHANGEABLE TO: 95530648 - 1296 333 022 (FIG.100)
(29) PERFECTLY INTERCHANGEABLE TO: 95531084 - 1296 333 045 (FIG.100)

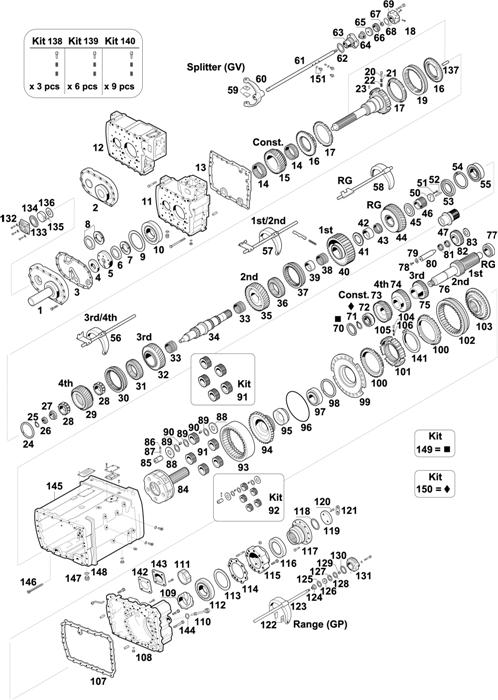

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	95570230	1297 302 013	FRONT BEARING COVER	(1)	1
1		1297 302 017	FRONT BEARING COVER	(2)	1
1		1297 302 018	FRONT BEARING COVER	(1)	1
1	95570215	1297 302 019	FRONT BEARING COVER	(1,3)	1
1	95570325	1297 302 053	FRONT BEARING COVER	(4,5,6)	1
1		1297 302 126	FRONT BEARING COVER	(7)	1
1		1297 302 238	FRONT BEARING COVER	(8)	1
1		1297 302 289	FRONT BEARING COVER	(9)	1
2		1297 302 109	FRONT BEARING COVER	(7)	1
2		1297 302 130	FRONT BEARING COVER	(7)	1
2		1297 302 158	FRONT BEARING COVER	(7)	1
2		1297 302 185	FRONT BEARING COVER	(10)	1
3	95534112	1313 302 014	GASKET		1
4	95531973	0734 310 387	OIL SEAL 55X75X8 MM	(11)	1
4	95532532	0750 111 002	OIL SEAL 48X75X8 MM	(12)	1
4	95531919	0634 100 182	OIL SEAL 90X110X12 MM	(13)	1
5	95530817	1295 202 041	OIL PUMP		1
6	95531368	0730 062 579	LOCK RING		1
6	95570167	0730 061 816	LOCK RING		1
7	95534364	0730 105 156	SPLIT RING T.4,00 MM	OLD(14,23)	1	NSS
7	95534363	0730 105 155	SPLIT RING T.3,90 MM	OLD(14,24)	1	NSS
7	95531643	0730 105 154	SPLIT RING T.3,80 MM	OLD(14,25)	1	NSS
7	95535116	0501 396 744	SPLIT RING T.4,30 MM	OLD(15)	1	NSS
7	95535132	0730 104 338	SPLIT RING T.4,25 MM	OLD(15)	1	NSS
7	95534712	0501 396 741	SPLIT RING T.4,10 MM	OLD(15)	1	NSS
7	95534711	0501 396 739	SPLIT RING T.4,00 MM	OLD(15)	1	NSS
7	95535135	0730 103 938	SPLIT RING T.3,95 MM	OLD(15)	1	NSS
8	95531642	1499 298 003	RING KIT T.4,00 MM	NEW(14)	1
8	95531650	1499 298 002	RING KIT T.3,90 MM	NEW(14)	1
8	95531382	1499 298 001	RING KIT T.3,80 MM	NEW(14)	1
8		1499 298 090	RING KIT T.4,30 MM	NEW(15)	1
8		1499 298 115	RING KIT T.4,25 MM	NEW(15)	1
8		1499 298 100	RING KIT T.4,10 MM	NEW(15)	1
8	95532234	1499 298 098	RING KIT T.4,00 MM	NEW(15)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
8		1499 298 097	RING KIT T.3,95 MM	NEW(15)	1
9	95532227	0730 103 804	SPACER T.0,80 MM		1
9		0730 102 505	SPACER T.0,70 MM		1
9		0730 102 504	SPACER T.0,60 MM		1
9	95531379	0730 102 503	SPACER T.0,50 MM		1
10	98530074	0750 118 131	BEARING 80X150X27,5 MM		1
11		0091 301 110	GEARBOX HOUSING		1
11		1295 301 289	GEARBOX HOUSING		1
12		1296 301 228	GEARBOX HOUSING		1
13	95534107	1313 301 038	GASKET		1
14	98530236	0735 320 896	NEEDLE BEARING 88X96X29		2
15	95570016	1297 302 177	CONSTANT GEAR 30 T.	A	1
15	95531349	S 1297 302 177	CONSTANT GEAR 30 T.	A(17)	1
15	95530837	1297 302 176	CONSTANT GEAR 28 T.	B	1
15	95570056	1297 302 250	CONSTANT GEAR 29 T.	C	1
16	95530644	1295 304 278	SYNCHRONIZER CONE		2
17	95530642	1295 304 004	SYNCHRONIZER RING	OLD TYPE(26)	2
17	95532421	1304 304 686	SYNCHRONIZER RING	NEW TYPE(27)	2
18	95570363	1297 202 004	INPUT SHAFT		1
18	95530974	1297 202 008	INPUT SHAFT		1
18	95530976	1297 202 011	INPUT SHAFT		1
18		1297 202 014	INPUT SHAFT		1
18		1297 202 045	INPUT SHAFT		1
18		1297 202 046	INPUT SHAFT		1
18		1297 202 052	INPUT SHAFT		1
18	95530824	1297 202 053	INPUT SHAFT 57 T.		1
18		1297 202 062	INPUT SHAFT		1
18		1297 202 063	INPUT SHAFT		1
18		1297 221 006	INPUT SHAFT	NMV 130	1
19	95530643	1295 304 002	SLIDING SLEEVE		1
20	95530100	1240 304 278	SLIDING BLOCK		3
21	95530284	0732 040 386	SPRING		3
22	95530270	0732 040 385	SPRING		3
23	95531079	0635 470 012	ROLLER DIN 5402 D.7X7		1
24	95532108	0730 003 518	RING T.6,30 MM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
24	95532107	0730 003 517	RING T.6,00 MM		1
24	95532095	0730 003 161	RING T.5,10 MM		1
24	95532093	0730 003 159	RING T.4,50 MM		1
24		0730 004 239	RING T.4,30 MM		1
24		0730 003 158	RING T.4,20 MM		1
24	95532119	0730 004 237	RING T.4,00 MM		1
24		0730 003 156	RING T.3,60 MM		1
25		0630 501 028	LOCK RING 35X1,5 MM		1
26	98530353	0750 118 038	BEARING 35X68X27,5 MM		1
27	95530755	0737 502 092	GROOVED NUT M60X1,5		1
28	98530049	0750 118 005	NEEDLE BEAR. 63X97,5X34,8		2
29	95570234	1297 304 128	GEAR 4TH SPEED 28 T.	A	1
29	95530850	1297 304 127	GEAR 4TH SPEED 30 T.	B	1
29		1297 304 258	GEAR 4TH SPEED 29 T.	C	1
30	95530854	1297 304 120	SLIDING SLEEVE		1
31	95530857	1297 304 188	SYNCHRONIZER HUB		1
32	95570060	1297 304 116	GEAR 3RD SPEED 32 T.	AC	1
32	95530847	1297 304 115	GEAR 3RD SPEED 34 T.	B	1
33	98530046	0735 320 418	NEEDLE BEARING 82X90X50 W		2
34	95570479	1297 304 179	MAIN SHAFT	AB	1
34		1297 304 264	MAIN SHAFT	C	1
35	95570061	1297 304 113	GEAR 2ND SPEED 37 T.	AC	1
35	95530843	1297 304 112	GEAR 2ND SPEED 38 T.	B	1
36	95530856	1295 304 235	SYNCHRONIZER HUB		1
37	95530853	1297 304 119	SLIDING SLEEVE 1ST/2ND SP		1
38		0735 320 568	NEEDLE BEARING 78X86X44		1
39	95570480	1297 304 055	BUSH		1
40	95570062	1297 304 151	GEAR 1ST SPEED 44 T.	AC	1
40	95530840	1297 304 150	GEAR 1ST SPEED 47 T.	B	1
41	95530772	1297 304 154	FOLLOWER RING 24 T.		1
42	95570330	1297 304 034	BUSH		1
43	98530226	0735 320 486	NEEDLE BEARING 78X86X44		1
44	95570235	1297 304 149	REVERSE GEAR 39 T.	AC	1
44	95530773	1297 304 148	REVERSE GEAR 38 T.	B	1
45		1297 304 177	RING	AB	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
46	95530774	1297 304 187	SUN GEAR 27 T.	AB-OLD	1
46	95535283	0091 304 347	SUN GEAR 27 T.	AB-NEW	1
46	95531346	S 1297 304 187	SUN GEAR 27 T.	AB(17)	1
47		1297 304 265	SUN GEAR 24 T.	C	1
50	95533169	1272 304 021	THRUST WASHER		1
51	95532002	0636 010 240	SCREW M10X30		2
51		0636 010 617	SCREW M10X50		2
52	95531385	0730 061 842	PIPE		1
53	95533423	1295 304 129	SEAL BAFFLE	AB	1
53	95533547	1297 301 004	SEAL BAFFLE	C	1
54		0630 502 143	LOCK RING T.4,00 MM	AB	1
54		0630 502 213	LOCK RING T.3,70 MM	AB	1
54		0630 502 097	LOCK RING T.4,00 MM	C	1
54		0630 502 216	LOCK RING T.3,70 MM	C	1
55	98530075	0750 118 153	BEARING 60X130X31 MM	AB	1
55		0750 118 137	BEARING 80X140X26 MM	C	1
56	95531330	1297 206 083	FORK ASSY 3RD/4TH		1
56	95531328	1297 206 077	FORK ASSY 3RD/4TH		1
57	95531329	1297 206 082	FORK ASSY 1ST/2ND		1
57	95531327	1297 206 076	FORK ASSY 1ST/2ND		1
58		1297 206 172	REVERSE YOKE		1
58		1297 206 184	REVERSE YOKE		1
58		1297 206 173	REVERSE YOKE		1
58	95531372	1297 206 185	SELECTOR ROD		1
59	95534514	1295 306 132	SLIDING BLOCK		2
59	95530514	M 1295 306 132	SLIDING BLOCK (OT58)		2
60		0091 312 025	FORK		1
61	95531272	1297 312 007	SELECTOR ROD		1
62	95531553	0634 313 671	O-RING 80X3		1
63	95531269	1296 312 042	CYLINDER		1
64	95531069	0750 112 034	GASKET 25X38X14,2		1
65	95533494	1296 312 053	PISTON		1
66	95532548	0750 112 089	SEAL RING 53X63X16,2 MM		1
67		0737 300 037	NUT M16X1,5		1
68	95531941	0634 314 018	O-RING 59X2		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
92		1297 298 919	REPAIR KIT	C	1
93	95530780	1297 332 080	CROWN 83 T.	AB	1
93	95570991	1295 332 086	CROWN 86 T.	C	1
94	95530781	1297 332 017	CARRIER HUB 83 T.	AB	1
94	95570308	1297 332 035	CARRIER HUB 86 T.	C	1
95	95533565	1297 332 122	INTERMEDIATE RING		1
96	95570645	0730 505 055	RETAINER RING T.3,20 MM	AB	1
96	95570727	0730 505 056	RETAINER RING T.3,20 MM	C	1
97	98530057	0750 116 165	BEARING 80X110X16 MM		1
98		0730 513 755	ELASTIC RING T.2,50 MM		1
98		0730 513 760	ELASTIC RING T.2,00 MM		1
99	95530682	1296 233 006	SYNCHRONIZER CONE		1
100	95530648	1296 333 022	SYNCHRONIZER RING	OLD TYPE(29)	2
100	95531084	1296 333 045	SYNCHRONIZER RING	NEW TYPE(28)	2
101	95530680	1296 333 002	SYNCHRONIZER HUB		1
102	95530649	1296 333 023	SLIDING SLEEVE		1
103	95530886	1313 233 001	SYNCHRONIZER CONE		1
104	95530100	1240 304 278	SLIDING BLOCK	6 OR 9 PCS
105	95530284	0732 040 386	SPRING	6 OR 9 PCS
106	95530270	0732 040 385	SPRING	6 OR 9 PCS
107	95534106	1313 301 037	GASKET		1
108	95534971	1296 301 130	GP HOUSING		1
109	95570650	1297 338 001	SPEEDOMETER GEAR		1
110	95570647	1296 235 001	SPEEDOMETER SHAFT		1
111		1295 238 005	DISK		1
112	98530050	0750 116 394	BEARING 90X160X30 MM		1
113		4005 302 034	WASHER T.0,50 MM		1
113		0730 100 116	WASHER T.0,20 MM		1
114	95534105	1313 301 036	GASKET		1	NSS
115	95531378	1296 301 067	COVER		1
116	95532542	0750 111 341	OIL SEAL 105X130X12 MM		1
117	95531331	1297 338 041	OUTPUT FLANGE D.180 DIN9T		1
117	95570651	1297 338 010	OUTPUT FLANGE		1
117		1297 338 051	OUTPUT FLANGE		1
118	95531939	0634 314 015	O-RING 68X4		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
119	95533468	1295 332 051	WASHER		1
120	95532022	0636 016 012	SCREW M12X30		2
121	95531609	1295 332 052	SHEET STEEL		1
122	95530797	1296 334 004	SLIDING BLOCK		2
123		1312 234 002	FORK		1
124	95531069	0750 112 034	GASKET 25X38X14,2		1
125	95532408	0734 317 150	RING 80X90X4,8 MM		1
126	95570654	1296 334 039	PISTON		1
127	95531395	0750 112 066	RING 85,10X90X5,40 MM		1
128	95532408	0734 317 150	RING 80X90X4,8 MM		1
129		0737 300 037	NUT M16X1,5		1
130	95531942	0634 314 019	O-RING 94X3		1
131	95570227	1295 334 075	CYLINDER		1
132		1295 303 031	COVER		1
133	95532628	0750 190 012	DIAPHRAGM		1
134	95570495	1268 303 062	PISTON		1
135	95531122	0731 302 032	PIN		1
136	95530786	1268 203 059	CLUTCH DISK		1
137	95570386	0730 062 323	PIPE		1	NSS
138	95570661	1268 298 938	REPAIR KIT		1
139	95530679	1272 298 934	REPAIR KIT		1
140	95531972	1295 298 933	REPAIR KIT		1
141		0630 501 061	SEEGER RING T.4,00 MM		1
141	95531760	0630 501 175	SEEGER RING T.3,70 MM		1
142	95531593	1238 308 201	GASKET		1
143	95531377	1304 301 034	COVER	OLD	1
143		1328 301 170	COVER	NEW	1
144	95531574	0634 801 324	SEAL RING30X36X1,9DIN7603		1	NSS
145		1295 301 309	GEARBOX HOUSING		1
145		1295 301 318	GEARBOX HOUSING		1
145		1295 301 312	GEARBOX HOUSING		1
146		0501 318 802	OIL FILTER		1
147	95532507	0736 305 052	PLUG		1
148	95531966	0634 801 250	RING 38X44		1	NSS
149	95534571	*****	SHIM KIT	(21)	1
