(A) SHORT TRAVEL SYNCHRO - RATIO 13,80 - 0,84
(B) DOUBLE CONE SYNCHRO - RATIO 13,80 - 0,84
(C) SHORT TRAVEL SYNCHRO - RATIO 16,47 - 1,00
(D) DOUBLE CONE SYNCHRO - RATIO 16,47 - 1,00
(* - @ - • - &) TO BE COUPLED TOGETHER
(EG) TO BE COUPLED TOGETHER. NEW SYNCHRONIZER KIT 3RD/4TH - MOLYBDENUM VERSION
(FH) TO BE COUPLED TOGETHER. NEW SYNCHRONIZER KIT 1ST/2ND - MOLYBDENUM VERSION
(1) NOT SUPPLIED SEPARATELY, WE SUPPLY:95571064 - 1499 298 136
(2) NOT SUPPLIED SEPARATELY, WE SUPPLY:95571058 - 1499 298 135
(3) NOT SUPPLIED SEPARATELY, WE SUPPLY:95571057 - 1499 298 133
(4) WITH INPUT SHAFT 1313 202 013 (FIG.20)
(5) WITH INPUT SHAFT 1313 202 014 (FIG.20)
(6) WITH INPUT SHAFT 1313 202 017 (FIG.20)
(7) WITH INPUT SHAFT 1313 202 023 (FIG.20)
(8) WITH INPUT SHAFT 1313 202 018 (FIG.20)
(9) WITH INPUT SHAFT 1313 202 015 (FIG.20)
(10) ONLY FOR INPUT SHAFT 1313 221 004 / 1313 221 006
(13) ONLY FOR PNEUMATIC VERSION
(15) PERFECTLY INTERCHANGEABLE TO: 95531072 - 1297 304 484 (FIG.19/47/66)
(16) PERFECTLY INTERCHANGEABLE TO: 95570202 - 1297 304 402 (FIG.19/47/66)
(17) PERFECTLY INTERCHANGEABLE TO: 95531085 - 1297 304 485 (FIG.76)
(18) PERFECTLY INTERCHANGEABLE TO: 95570217 - 1297 304 401 (FIG.76)
(19) PERFECTLY INTERCHANGEABLE TO: 95531084 - 1296 333 045 (FIG.141)
(20) PERFECTLY INTERCHANGEABLE TO: 95530648 - 1296 333 022 (FIG.141)
(22) NOT SUPPLIED SEPARATELY, WE SUPPLY:95534631 - 1499 298 027 (FIG.60)
(23) NOT SUPPLIED SEPARATELY, WE SUPPLY:95535161 - 1499 298 026 (FIG.60)
(24) NOT SUPPLIED SEPARATELY, WE SUPPLY:95534671 - 1499 298 025 (FIG.60)
(25) NOT SUPPLIED SEPARATELY, WE SUPPLY:95535159 - 1499 298 024 (FIG.60)
(26) NOT SUPPLIED SEPARATELY, WE SUPPLY:95534632 - 1499 298 023 (FIG.60)

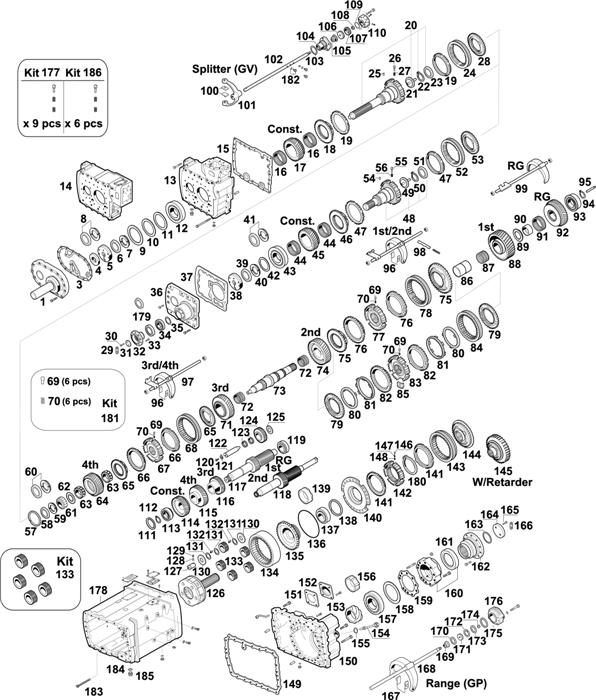

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	95530461	1312 302 036	FRONT BEARING COVER	(4)	1
1		1312 302 047	FRONT BEARING COVER	(5)	1
1		1312 302 052	FRONT BEARING COVER	(4)	1
1	95531621	1312 302 054	FRONT BEARING COVER	(5,6,7)	1
1		1312 302 081	FRONT BEARING COVER	(8)	1
1		1312 302 096	FRONT BEARING COVER	(9)	1
3	95534112	1313 302 014	GASKET		1
4	95531973	0734 310 387	OIL SEAL 55X75X8 MM		1
4	95531919	0634 100 182	OIL SEAL 90X110X12 MM	(10)	1
5	95530817	1295 202 041	OIL PUMP		1
6	95570167	0730 061 816	LOCK RING		1
7	95570717	0730 106 169	SPLIT RING T.4,35 MM	OLD(1)	1	NSS
7	95570716	0730 106 168	SPLIT RING T.4,30 MM	OLD(2)	1	NSS
7	95570715	0730 106 167	SPLIT RING T.4,25 MM	OLD	1	NSS
7	95570714	0730 106 166	SPLIT RING T.4,20 MM	OLD(3)	1	NSS
7	95570713	0730 106 165	SPLIT RING T.4,15 MM	OLD	1	NSS
7	95570712	0730 106 164	SPLIT RING T.4,10 MM	OLD	1
7	95535125	0730 106 163	SPLIT RING T.4,05 MM	OLD	1	NSS
7	95534715	0730 106 162	SPLIT RING T.4,00 MM	OLD	1	NSS
7	95535127	0730 106 161	SPLIT RING T.3,95 MM	OLD	1	NSS
7	95535129	0730 106 160	SPLIT RING T.3,90 MM	OLD	1	NSS
7	95535131	0730 106 159	SPLIT RING T.3,85 MM	OLD	1	NSS
7	95534714	0730 106 158	SPLIT RING T.3,80 MM	OLD	1	NSS
8	95571064	1499 298 136	RING KIT T.4,35 MM	NEW	1
8	95571058	1499 298 135	RING KIT T.4,30 MM	NEW	1
8	95571063	1499 298 134	RING KIT T.4,25 MM	NEW	1
8	95571057	1499 298 133	RING KIT T.4,20 MM	NEW	1
8	95571062	1499 298 132	RING KIT T.4,15 MM	NEW	1
8	95571056	1499 298 131	RING KIT T.4,10 MM	NEW	1
8		1499 298 130	RING KIT T.4,05 MM	NEW	1
8		1499 298 129	RING KIT T.4,00 MM	NEW	1
8		1499 298 128	RING KIT T.3,95 MM	NEW	1
8		1499 298 127	RING KIT T.3,90 MM	NEW	1
8		1499 298 126	RING KIT T.3,85 MM	NEW	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
8		1499 298 125	RING KIT T.3,80 MM	NEW	1
9		2050 309 065	SPACER T.1,00 MM		1
9	95531403	1205 308 038	SPACER T.0,50 MM		1
10		0730 103 806	SPACER T.1,00 MM	(10)	1
10	95531379	0730 102 503	SPACER T.0,50 MM	(10)	1
11		0730 005 581	RING T.4,00 MM	(10)	1
12	98530094	0750 117 431	BEARING 75X150X30,5 MM		1
13		1295 301 289	GEARBOX HOUSING		1
13		1295 301 291	GEARBOX HOUSING		1
14		1296 301 202	GEARBOX HOUSING		1
14		1296 301 206	GEARBOX HOUSING		1
15	95534107	1313 301 038	GASKET		1
16	98530343	0750 115 310	NEEDLE BEARING 93X101X25		2
17	95570222	1313 302 036	CONSTANT GEAR 34 T.	AB	1
17	95570560	1313 302 035	CONSTANT GEAR 30 T.	CD	1
18	95570220	1312 304 027	SYNCHRONIZER CONE		1
19	95570202	1297 304 402	SYNCHRONIZER RING	OLD TYPE(15)	2
19	95531072	1297 304 484	SYNCHRONIZER RING	NEW TYPE(16)	2
20	95570221	1313 202 013	INPUT SHAFT 57 T.		1
20		1313 202 014	INPUT SHAFT		1
20	95570988	1313 202 015	INPUT SHAFT 57 T.		1
20		1313 202 016	INPUT SHAFT		1
20	95531463	1313 202 017	INPUT SHAFT 57 T.		1
20		1313 202 018	INPUT SHAFT		1
20		1313 202 023	INPUT SHAFT		1
20		1313 221 004	INPUT SHAFT	NMV 130	1
20		1313 221 006	INPUT SHAFT	NMV 130	1
21	95570681	1315 302 196	TUBE	OLD	1	NSS
21		1354 302 019	TUBE	NEW	1
22	95570682	0630 502 027	SEEGER RING DIN472 50X2		1
23	95570683	0501 314 060	DIAPHRAGM		1
24	95570219	1310 304 202	SLIDING SLEEVE 3RD/4TH		1
25	95531079	0635 470 012	ROLLER DIN 5402 D.7X7		1
26	95570574	1297 304 436	SLIDE		3
27	95570470	0732 040 409	PRESSURE SPRING		3

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
98		1313 206 001	FORK 1ST/2ND		1
98		1313 206 004	FORK 1ST/2ND		1
98		1313 206 031	FORK 1ST/2ND	(13)	1
99		1313 206 015	REVERSE YOKE		1
99		1313 206 016	REVERSE YOKE		1
99		1313 206 026	REVERSE YOKE	(13)	1
100	95570365	1297 306 120	SLIDE		2
101		0091 312 025	FORK		1
102		1312 312 002	TIE ROD		1
103	95531553	0634 313 671	O-RING 80X3		1
104	95531269	1296 312 042	CYLINDER		1
105	95531069	0750 112 034	GASKET 25X38X14,2		1
106		1312 312 003	PISTON		1
107	95532548	0750 112 089	SEAL RING 53X63X16,2 MM		1
108		0737 300 037	NUT M16X1,5		1
109	95531941	0634 314 018	O-RING 59X2		1
110	95532625	0750 132 032	CYLINDER		1
110	95532626	0750 132 033	CYLINDER		1
111	95532201	0730 102 099	SHIM 3,00 MM		1
111	95532196	0730 102 062	SHIM 2,50 MM		1
111	95532198	0730 102 072	SHIM 2,00 MM		1
112	95531755	0630 501 151	SEEGER RING T.3,20 MM		1
112	95530923	0630 531 065	SEEGER RING T.3,00 MM		1
112	95530448	0630 501 114	SEEGER RING T.2,80 MM		1
112	95530627	0630 531 064	SEEGER RING T.2,50 MM		1
112	95530517	0630 501 148	SEEGER RING T.2,40 MM		1
112	95530513	0630 501 147	SEEGER RING T.2,30 MM		1
113	98530054	0750 117 010	BEARING 50,8X100X35 MM		1
114	95570977	1313 303 004	CONSTANT GEAR 37 T.	AB	1
114	95570978	1296 303 037	CONSTANT GEAR 39 T.	CD	1
115	95570979	1313 303 003	GEAR 4TH SPEED 39 T.	AB	1
115	95570980	1296 303 036	GEAR 4TH SPEED 37 T.	CD	1
116	95570981	1313 303 002	GEAR 3RD SPEED 28 T.	AB	1
116		1296 303 035	GEAR 3RD SPEED 26 T.	CD	1
117	95570983	1313 303 010	COUNTERSHAFT 19/23 T.	AB	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
117		1313 303 011	COUNTERSHAFT 17/20 T.	CD	1
118		1313 303 035	COUNTERSHAFT 19/23 T.	A	1
119	98530088	0750 117 011	BEAR. 50,8X104,7X39,6 MM		1
120		0501 398 785	SCREW M12X35		1
121		1295 305 057	WASHER		1
122	95570441	1295 305 056	REVERSE PIN		1
123	98530035	0750 115 011	NEEDLE BEARING 45X53X21		2
124		1313 305 002	REVERSE GEAR 21 T.	AB	1
124		1313 305 001	REVERSE GEAR 24 T.	CD	1
125	95530025	0730 150 064	WASHER T.0,60 MM		1
126	95570897	1296 232 002	PLANET CARRIER		1
127	95570205	1296 332 005	PIN		5
128	95570209	0631 329 051	LOCK PIN 5X26		5
129	95570208	0631 329 167	LOCK PIN 3X26		5
130	95570207	0501 308 981	WASHER T.1,50 MM		10
131	95570210	0730 107 168	SHIM 1,00 MM		15
132	95570211	0735 470 164	NEEDLE D.10		140
133	95570989	1313 232 003	GEAR SET (5 PCS)		1
134	95570991	1295 332 086	CROWN 86 T.		1
135	95570992	1313 332 020	CARRIER HUB 86 T.		1
136	95570727	0730 505 056	RETAINER RING T.3,20 MM		1
137	98530057	0750 116 165	BEARING 80X110X16 MM		1
138		0730 513 755	ELASTIC RING T.2,50 MM		1
138		0730 513 760	ELASTIC RING T.2,00 MM		1
139	95533565	1297 332 122	INTERMEDIATE RING		1
140	95530682	1296 233 006	SYNCHRONIZER CONE		1
141	95530648	1296 333 022	SYNCHRONIZER RING	OLD TYPE(19)	2
141	95531084	1296 333 045	SYNCHRONIZER RING	NEW TYPE(20)	2
142	95570993	1313 333 001	SYNCHRONIZER HUB		1
143	95530649	1296 333 023	SLIDING SLEEVE		1
144	95530886	1313 233 001	SYNCHRONIZER CONE		1
145	95531469	1297 333 118	RETARDER GEAR 77 T.		1
146	95530100	1240 304 278	SLIDING BLOCK		9
147	95530284	0732 040 386	SPRING		9
148	95530270	0732 040 385	SPRING		9

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
149	95534106	1313 301 037	GASKET		1
150	95534971	1296 301 130	GP HOUSING		1
151	95531593	1238 308 201	GASKET		1
152	95531377	1304 301 034	COVER	OLD	1
152		1328 301 170	COVER	NEW	1
153		1313 338 001	SPEEDOMETER GEAR		1
154	95570647	1296 235 001	SPEEDOMETER SHAFT		1
155	95531574	0634 801 324	SEAL RING30X36X1,9DIN7603		1	NSS
156	95534102	1313 238 001	PULSE DISK		1
157	98530050	0750 116 394	BEARING 90X160X30 MM		1
158	95532106	0730 003 515	WASHER T.0,60 MM		1
158		0730 100 116	WASHER T.0,20 MM		1
159	95534105	1313 301 036	GASKET		1	NSS
160		1315 301 220	COVER		1
161	95532542	0750 111 341	OIL SEAL 105X130X12 MM		1
162		1313 338 002	OUTPUT FLANGE		1
162		1313 338 011	OUTPUT FLANGE		1
163	95531939	0634 314 015	O-RING 68X4		1
164	95533468	1295 332 051	WASHER		1
165		0636 011 777	SCREW M12X60		2
166	95531609	1295 332 052	SHEET STEEL		1
167	95530797	1296 334 004	SLIDING BLOCK		2
168		1313 234 011	FORK GP		1
168		1313 234 012	FORK GP		1
169	95531069	0750 112 034	GASKET 25X38X14,2		1
170	95532408	0734 317 150	RING 80X90X4,8 MM		1
171	95570654	1296 334 039	PISTON		1
172	95531395	0750 112 066	RING 85,10X90X5,40 MM		1
173	95532408	0734 317 150	RING 80X90X4,8 MM		1
174		0737 300 037	NUT M16X1,5		1
175	95531942	0634 314 019	O-RING 94X3		1
176	95570227	1295 334 075	CYLINDER		1
177	95531972	1295 298 933	REPAIR KIT		1
178		1313 301 072	GEARBOX HOUSING		1
178		1313 301 073	GEARBOX HOUSING		1
