(42) 1296 232 002 (FIG.105) REPLACED BY 1315 232 026 (FIG.105)
(A) DOUBLE CONE SYNCHRO - RATIO 13,74 - 0,84
(B) SHORT TRAVEL SYNCHRO - RATIO 13,80 - 0,84
(C) DOUBLE CONE SYNCHRO - RATIO 13,80 - 0,84
(D) SHORT TRAVEL SYNCHRO - RATIO 13,80 - 0,84
(E) DOUBLE CONE SYNCHRO - RATIO 13,80 - 0,84
(F) DOUBLE CONE SYNCHRO - RATIO 13,85 - 0,84
(G) SHORT TRAVEL SYNCHRO - RATIO 13,86 - 0,84
(H) DOUBLE CONE SYNCHRO - RATIO 13,86 - 0,84
(N) SHORT TRAVEL SYNCHRO - RATIO 16,41 - 1,00
(P) DOUBLE CONE SYNCHRO - RATIO 16,41 - 1,00
(L) SHORT TRAVEL SYNCHRO - RATIO 16,47 - 1,00
(M) DOUBLE CONE SYNCHRO - RATIO 16,47 - 1,00
(Q) DOUBLE CONE SYNCHRO - RATIO 16,53 - 1,00
(* - @ - • - & ) TO BE COUPLED TOGETHER
(RT) TO BE COUPLED TOGETHER. MOLYBDENUM VERSION
(SU) TO BE COUPLED TOGETHER. MOLYBDENUM VERSION
(VZ) TO BE COUPLED TOGETHER. DO NOT MIX V WITH Z
(1) WITH INPUT SHAFT 1315 202 037 (FIG.33)
(2) WITH INPUT SHAFT 1315 202 040 (FIG.33)
(3) WITH INPUT SHAFT 1315 202 042 (FIG.33)
(4) WITH INPUT SHAFT 1315 202 039 (FIG.33)
(5) WITH INPUT SHAFT 1315 202 047 (FIG.33)
(6) WITH INPUT SHAFT 1315 202 044 (FIG.33)
(7) WITH INPUT SHAFT 1315 202 041 (FIG.33)
(8) WITH INPUT SHAFT 1315 202 046 (FIG.33)
(9) WITH INPUT SHAFT 1315 202 050 (FIG.33)
(10) WITH INPUT SHAFT 1315 202 043 (FIG.33)
(11) WITH INPUT SHAFT 1315 202 045 (FIG.33)
(12) WITH INPUT SHAFT 1315 202 022 (FIG.33)
(13) WITH INPUT SHAFT 1315 202 048 (FIG.33)
(14) WITH INPUT SHAFT 1315 202 038 (FIG.33)
(15) ONLY FOR INPUT SHAFT 1315 221 002 (FIG.33)
(16) OLD TYPE INPUT SHAFT HAVING NEEDLE BEARINGS (FIG.42)
(18) WE SUPPLY THE NEW SHEET VERSION: 95532482 - 1315 331 001
(19) SPECIAL VERSION FOR THE RATIOS 1315 312 030 (COMPL.1315 212 004) AND 1315 312 022 (COMPL.1315 212 003) USE FIG.98/99/100.
(20) WE ONLY SUPPLY THE VERSION 95570582 CONSISTING OF 1 PIECE: SYNCHRO CONE + RING TOGETHER
(22) ONLY FOR FLANGE 1297 333 110 + 1316 232 028
(23) ONLY FOR FLANGE 1313 338 002 - 1313 338 011 - 1315 238 001
(24) ONLY FOR FLANGE 1351 338 002
(25) SPECIAL VERSION TO BE COUPLED TOGETHER
(26) FOR MODELS HAVING FRONT COVER WITH OIL PUMP
(27) FOR MODELS HAVING FRONT COVER WITHOUT OIL PUMP
(28) WE SUPPLY THE NEW SHEET VERSION: 95532481 - 1315 303 060 (FIG.7)
(30) PERFECTLY INTERCHANGEABLE TO: 95531072 - 1297 304 484 (FIG.32/55)
(31) PERFECTLY INTERCHANGEABLE TO: 95570202 - 1297 304 402 (FIG.32/55)
(32) PERFECTLY INTERCHANGEABLE TO: 95531084 - 1296 333 045 (FIG.134)
(33) PERFECTLY INTERCHANGEABLE TO: 95530648 - 1296 333 022 (FIG.134)
(34) PERFECTLY INTERCHANGEABLE TO: 95531085 - 1297 304 485 (FIG.65)
(35) PERFECTLY INTERCHANGEABLE TO: 95570217 - 1297 304 401 (FIG.65)
(36) FOR VEHICLES WITH ELECTRONIC SPEEDOMETER, REPLACED BY 1315 301 223 (FIG.149) + 1 PC 0636 302 021 + 1 PC 0634 801 062 + 1 PC 0636 302 066 + 1 PC 0634 801 097
(37) FOR VEHICLES WITH MECHANICAL SPEEDOMETER, REPLACED BY 1315 301 223 (FIG.149) + 1 PC 0636 302 021 + 1 PC 0634 801 062
(43) 1296 332 005 (FIG.106) REPLACED BY 1315 332 090 (FIG.106)
(44) 0631 329 167 (FIG.110) REPLACED BY 0631 329 261 (FIG.110)
(45) 0631 329 051 (FIG.111) REPLACED BY 0631 329 147 (FIG.111)
(47) NOT SUPPLIED SEPARATELY, WE SUPPLY: 95534631 - 1499 298 027
(48) NOT SUPPLIED SEPARATELY, WE SUPPLY: 95535161 - 1499 298 026
(49) NOT SUPPLIED SEPARATELY, WE SUPPLY: 95534671 - 1499 298 025
(66) NOT SUPPLIED SEPARATELY, WE SUPPLY: 95535159 - 1499 298 024
(67) NOT SUPPLIED SEPARATELY, WE SUPPLY: 95534632 - 1499 298 023

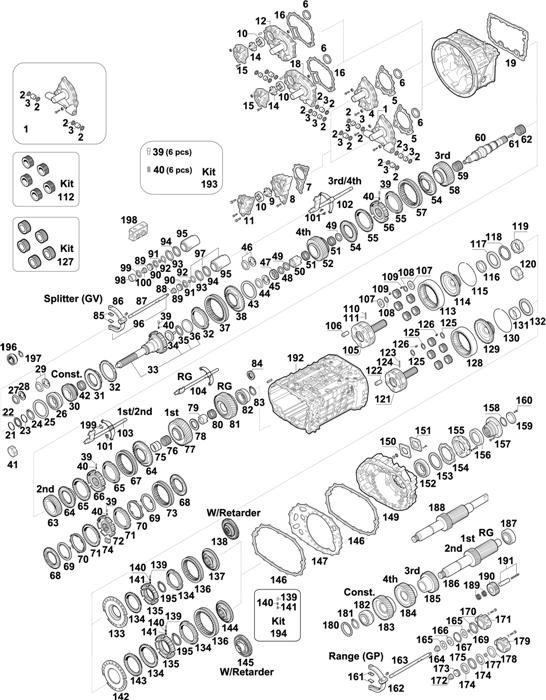

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	95535210	1315 202 055	FRONT BEARING COVER	(1,2)	1
1		1315 202 059	FRONT BEARING COVER	(3)	1
1		1315 202 061	FRONT BEARING COVER	(4)	1
1		1315 202 063	FRONT BEARING COVER	(5)	1
1		1315 202 065	FRONT BEARING COVER	(6)	1
1		1315 202 068	FRONT BEARING COVER	(1)	1
2	95531678	0501 312 738	OIL SEAL 30X37X4 MM	OLD	1
2		0750 111 575	OIL SEAL 30X37X4 MM	NEW	1
3	95532298	0730 260 398	BIMETALLIC BUSH		1
4	95534669	1315 302 075	FRONT BEARING COVER	(1)	1
4	95532586	1315 302 136	FRONT BEARING COVER	(1,7,8,9)	1
4		1315 302 181	COVER	(10,11)	1
5	95531556	0501 314 587	GASKET		1
6	95531973	0734 310 387	OIL SEAL 55X75X8 MM		1
6	95531557	0734 310 104	OIL SEAL 52X68X8 MM	(13)	1
6	95532414	0734 319 514	OIL SEAL 52X72X8 MM	(15)	1
7	95531687	0501 314 747	PAPER GASKET	(28)	1
7	95532481	1315 303 060	SHEET GASKET		1
8	95531625	1315 302 121	BODY PUMP OIL		1
9	95531143	1314 202 039	PUMP SHAFT		1
10	95530070	1315 303 027	ROTOR		1
11	95531624	1315 302 120	PUMP COVER		1
12		1315 302 045	COVER	(12)	1
12		1315 302 047	COVER	(12)	1
12		1315 302 113	COVER	(1,14)	1
12		4130 306 301	COVER	(13)	1
14	95530213	1315 202 014	GEAR OIL PUMP		1
15		1315 302 013	PUMP COVER		1
16	95531685	0501 314 246	GASKET		1	NSS
18		1315 302 057	COVER	(1,2)	1
19	95534149	1315 301 233	SHEET GASKET		1
21	95532279	0730 150 766	WASHER T.3,30 MM		1
22	95534154	1315 302 040	SPACER RING		1
23	95532279	0730 150 766	WASHER T.3,30 MM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
24		0730 501 598	LOCK RING T.4,00 MM		1
25	95532149	0730 007 486	SPACER T.2,00 MM		1
25	95532148	0730 007 134	SPACER T.1,50 MM		1
26	98530232	0750 117 732	BEARING 85X150X30,5 MM		1
26	98530094	0750 117 431	BEARING 75X150X30,5 MM	(12)	1
27	95531369	0730 062 781	LOCK RING T.4,50 MM	(12)	1
28	95531559	0730 107 023	SPLIT RING T.5,00 MM	OLD(47)	1	NSS
28	95535162	0730 107 022	SPLIT RING T.4,90 MM	OLD(48)	1	NSS
28	95534672	0730 107 021	SPLIT RING T.4,80 MM	OLD(49)	1	NSS
28	95535160	0730 107 020	SPLIT RING T.4,70 MM	OLD(66)	1	NSS
28	95531558	0730 107 019	SPLIT RING T.4,60 MM	OLD(67)	1	NSS
29	95534631	1499 298 027	RING KIT T.5,00 MM	NEW	1
29	95535161	1499 298 026	RING KIT T.4,90 MM	NEW	1
29	95534671	1499 298 025	RING KIT T.4,80 MM	NEW	1
29	95535159	1499 298 024	RING KIT T.4,70 MM	NEW	1
29	95534632	1499 298 023	RING KIT T.4,60 MM	NEW	1
30	95531055	1315 302 173	CONSTANT GEAR 34 T.	ABC	1
30	95531404	1315 302 158	CONSTANT GEAR 35 T.	DEGH	1
30	95530296	1315 302 008	CONSTANT GEAR 34 T.	F(12)	1
30	95531470	1315 302 157	CONSTANT GEAR 30 T.	LMNP	1
30	95530868	1315 302 007	CONSTANT GEAR 30 T.	Q(12)	1
31	95570220	1312 304 027	SYNCHRONIZER CONE		1
32	95570202	1297 304 402	SYNCHRONIZER RING	OLD TYPE(30)	2
32	95531072	1297 304 484	SYNCHRONIZER RING	NEW TYPE(31)	2
33	95531054	1315 202 037	INPUT SHAFT		1
33		1315 202 038	INPUT SHAFT		1
33	95531472	1315 202 039	INPUT SHAFT 57 T.		1
33	95531473	1315 202 040	INPUT SHAFT 57 T.		1
33		1315 202 041	INPUT SHAFT		1
33		1315 202 042	INPUT SHAFT		1
33		1315 202 043	INPUT SHAFT		1
33		1315 202 044	INPUT SHAFT		1
33		1315 202 045	INPUT SHAFT		1
33		1315 202 046	INPUT SHAFT		1
33		1315 202 047	INPUT SHAFT		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
87		1315 312 022	TIE ROD	(19)	1
88	95532553	0750 112 131	GASKET 25X40X15		1
89	95534203	1315 312 020	PISTON		1
90	95532555	0750 112 177	RING 55X63X9,4 MM		1
91		0737 300 037	NUT M16X1,5		1
92	95531931	0634 313 320	O-RING 67X3		1
93	95534205	1315 312 034	SPRING		1
94	95531923	0634 313 018	O-RING 82X3		1
95	95534206	1315 312 048	CYLINDER		1
96		1315 212 005	FORK ASSY		1
96		1315 212 004	FORK ASSY	(19)	1
96		1315 212 003	FORK ASSY	(19)	1
97		1315 212 010	CYLINDER ASSY		1
98		0730 260 396	BUSH	(19)	1
99		0630 502 021	RING	(19)	1
100	95531069	0750 112 034	GASKET 25X38X14,2	(19)	1
101	95570365	1297 306 120	SLIDE	OLD TYPE	2
101	95534245	1316 306 015	SLIDE	NEW TYPE	2
102		1315 206 013	FORK 3RD/4TH	OLD TYPE	1
102		1315 206 055	FORK 3RD/4TH	NEW TYPE	1
102		1315 206 024	FORK 3RD/4TH	OLD TYPE	1
102		1315 206 056	FORK 3RD/4TH	NEW TYPE	1
103		1315 206 046	FORK 1ST/2ND	OLD TYPE	1
103		1315 206 052	FORK 1ST/2ND	NEW TYPE	1
103		1315 206 047	FORK 1ST/2ND	OLD TYPE	1
103		1315 206 053	FORK 1ST/2ND	NEW TYPE	1
104		1315 206 003	REVERSE YOKE		1
104	95534136	1315 206 023	REVERSE YOKE		1
105	95570897	1296 232 002	PLANET CARRIER	BCFGHLMQ	1
105	95535254	1315 232 026	PLANET CARRIER	BCFGHLMQ	1
106	95570205	1296 332 005	PIN	BCFGHLMQ(43)	5
106	95535252	1315 332 090	PIN	BCFGHLMQ	5
107	95570207	0501 308 981	WASHER T.1,50 MM	BCFGHLMQ	10
108	95570210	0730 107 168	SHIM 1,00 MM	BCFGHLMQ	15
109	95570211	0735 470 164	NEEDLE D.10	BCFGHLMQ	140

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
134	95531084	1296 333 045	SYNCHRONIZER RING	NEW TYPE(33)	2
135	95570993	1313 333 001	SYNCHRONIZER HUB		1
136	95530649	1296 333 023	SLIDING SLEEVE	V	1
136	95532582	1316 333 034	SLIDING SLEEVE	Z	1
136	95530649	1296 333 023	SLIDING SLEEVE	(25)	1
137	95530886	1313 233 001	SYNCHRONIZER CONE	BCFGHLMQ	1
138	95531488	1315 233 023	RETARDER GEAR 59 T.	BCFGHLMQ	1
139	95530100	1240 304 278	SLIDING BLOCK		9
140	95530284	0732 040 386	SPRING		9
141	95530270	0732 040 385	SPRING		9
142	95531283	1296 333 046	CLUTCH DISK	ADENP(20)	1
142	95570582	1315 233 006	SYNCHRONIZER CONE	ADENP	1
143	95531282	1296 333 050	SYNCHRONIZER CONE	ADENP	1
144	95531284	1316 233 015	SYNCHRONIZER CONE	ADENP	1
145	95531295	1316 233 014	RETARDER GEAR 59 T.	ADENP	1
146	95534242	1316 301 042	GASKET		2
146	95534420	1315 301 095	INTARDER GASKET	OLD	2
146	95534666	1316 301 053	INTARDER GASKET	NEW	2
147	95534151	1315 301 118	SHEET GASKET		1
149		1315 301 224	GP HOUSING	OLD(36,37)	1
149	95534152	1315 301 223	GP HOUSING	NEW	1
150	95531593	1238 308 201	GASKET		1
151	95531377	1304 301 034	COVER	OLD	1
151		1328 301 170	COVER	NEW	1
152	98530050	0750 116 394	BEARING 90X160X30 MM		1
153	95532106	0730 003 515	WASHER T.0,60 MM		1
153		0730 100 116	WASHER T.0,20 MM		1
154	95532554	0750 112 136	PAPER GASKET	(18)	1
154	95532482	1315 331 001	SHEET GASKET		1
155		1315 301 220	COVER		1
156	95532542	0750 111 341	OIL SEAL 105X130X12 MM		1
157	95533567	1297 333 110	OUTPUT FLANGE	ADENP	1
157		1316 232 028	FLANGE D.222 - 4 HOLES	ADENP	1
157		1315 338 002	OUTPUT FLANGE	BCFGHLMQ	1
157		1313 338 002	OUTPUT FLANGE	BCFGHLMQ	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
157		1313 338 011	OUTPUT FLANGE	BCFGHLMQ	1
157		1315 238 001	OUTPUT FLANGE	BCFGHLMQ	1
158	95531938	0634 313 805	O-RING 82X4	ADENP	1
158	95531939	0634 314 015	O-RING 68X4	BCFGHLMQ	1
159		1312 332 028	WASHER	(22)	1
159	95533468	1295 332 051	WASHER	(23)	1
159		1295 332 118	WASHER	(24)	1
160		0636 011 777	SCREW M12X60	(22,23)	2
160		0636 011 516	SCREW M12X70	(24)	2
161	95530797	1296 334 004	SLIDING BLOCK		2
162		1315 334 039	FORK		1
163	95532485	1315 334 058	SELECTOR ROD	V	1
163	95532617	1315 334 073	SELECTOR ROD	Z	1
163	95532581	1315 334 071	SELECTOR ROD	Z	1
163		1315 334 033	SELECTOR ROD	(25)	1
164	95532553	0750 112 131	GASKET 25X40X15		1
165	95532397	0734 307 294	SEAL RING PNEUMATIC		2
166	95534222	1315 334 034	PISTON		1
167	95531395	0750 112 066	RING 85,10X90X5,40 MM		1
169		0737 300 037	NUT M16X1,5		1
170	95531699	0501 317 536	RING 98X105X2,90 MM		1
171	95534225	1315 334 056	CYLINDER	V	1
171	95532583	1315 334 069	CYLINDER	Z	1
171	95534225	1315 334 056	CYLINDER	(25)	1
172	95531069	0750 112 034	GASKET 25X38X14,2	(25)	1
173	95570654	1296 334 039	PISTON	(25)	1
174	95532408	0734 317 150	RING 80X90X4,8 MM	(25)	2
175	95531395	0750 112 066	RING 85,10X90X5,40 MM	(25)	1
177		0737 300 037	NUT M16X1,5	(25)	1
178	95531699	0501 317 536	RING 98X105X2,90 MM	(25)	1
179	95534220	1315 334 021	CYLINDER	(25)	1
180	95532201	0730 102 099	SHIM 3,00 MM	(26)	1
180	95532196	0730 102 062	SHIM 2,50 MM	(26)	1
180	95532198	0730 102 072	SHIM 2,00 MM	(26)	1
180	95532260	0730 106 917	WASHER T.3,00 MM	(27)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
180	95532184	0730 100 799	WASHER T.2,50 MM	(27)	1
180	95532193	0730 101 471	WASHER T.2,00 MM	(27)	1
181	95530923	0630 531 065	SEEGER RING T.3,00 MM		1
181	95530448	0630 501 114	SEEGER RING T.2,80 MM		1
181	95530627	0630 531 064	SEEGER RING T.2,50 MM		1
182	98530054	0750 117 010	BEARING 50,8X100X35 MM	(26)	1
182	98530051	0750 117 009	BEAR. 49,2X103,1X43,6 MM	(27)	1
183	95530751	1315 303 052	CONSTANT GEAR 37 T.	ABCF	1
183	95535112	1315 303 064	CONSTANT GEAR 32 T.	DEGH	1
183	95570367	1315 303 008	CONSTANT GEAR 39 T.	LMNPQ	1
184	95530775	1315 303 046	GEAR 4TH SPEED 39 T	ABCF	1
184	95531240	1315 303 050	GEAR 4TH SPEED 35 T.	DEGHLMNPQ	1
185	95570997	1315 303 010	GEAR 3RD SPEED 28 T.	ABCF	1
185	95570406	1315 303 004	GEAR 3RD SPEED 26 T.	DEGHLMNPQ	1
186	95530776	1315 303 048	COUNTERSHAFT 19/23 T.	BCF(26)	1
186	95570475	1315 303 049	COUNTERSHAFT 17/20 T	MQ(26)	1
186	95531243	1315 303 041	COUNTERSHAFT 19/23 T.	ABC(27)	1
186	95531245	1315 303 042	COUNTERSHAFT 17/20 T.	DEGH(27)	1
186	95531245	1315 303 042	COUNTERSHAFT 17/20 T.	LMNP(27)	1
187	98530088	0750 117 011	BEAR. 50,8X104,7X39,6 MM		1
188		1315 303 030	COUNTERSHAFT	C(26)	1
189	98530191	0750 115 366	NEEDLE BEARING 45X57X21		2
190	95530862	1315 305 005	REVERSE GEAR 20 T.	ABCF	1
190	95570996	1315 305 011	REVERSE GEAR 22 T.	DEGHLMNPQ	1
191		1315 305 009	REVERSE PIN		1
192		1315 201 187	GEARBOX HOUSING		1
192		1315 201 186	GEARBOX HOUSING		1
192		1315 201 178	GEARBOX HOUSING		1
192		1315 201 179	GEARBOX HOUSING		1
192		1315 201 180	GEARBOX HOUSING		1
192		1315 201 182	GEARBOX HOUSING		1
192		1315 201 183	GEARBOX HOUSING		1
193	95531281	1295 298 956	REPAIR KIT		1
194	95531972	1295 298 933	REPAIR KIT		1
195		0630 501 061	SEEGER RING T.4,00 MM		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
195		0630 501 173	SEEGER RING T.3,90 MM		1
195		0630 501 174	SEEGER RING T.3,80 MM		1
195	95531760	0630 501 175	SEEGER RING T.3,70 MM		1
196		0635 450 098	BEARING 52X90X33 MM	(15)	1
197		0630 502 042	SEEGER RING 90X3	(15)	1
198	95531665	0501 215 358	VALVE	OLD	1
198		0501 219 309	VALVE	NEW	1
198	95531666	0501 215 359	VALVE		1
199	95534158	1315 306 079	SLIDING BLOCK (SAE430B)		1
