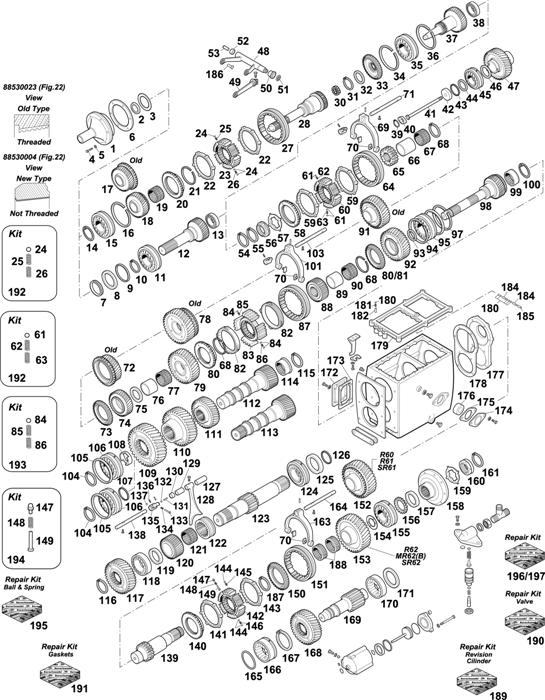

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1	88530561	382162	COVER		1
1	88530311	1655421	FRONT BEARING COVER		1
2	88530283	267268	OIL SEAL B1SL D. 65X90X10		1
3		941293	SHIM 1,00 MM
3		941292	SHIM 0,35 MM
4		940115	SCREW 3/8 UNC-25		5
5		942336	WASHER 10X18X1 MM		5
6		1655779	GASKET		1
7	88531082	1526179	SEAL RING 49X59X9 MM		1
8	88530283	267268	OIL SEAL B1SL D. 65X90X10		1
9		942150	SHIM 3,00 MM
9		942149	SHIM 2,90 MM
9		942148	SHIM 2,80 MM
9		942147	SHIM 2,70 MM
9		942146	SHIM 2,60 MM
10		914478	SEEGER RING T.2,50 MM		1
11		183593	BEARING 65X160X37 MM		1
12	88530114	382184	INPUT SHAFT 29 T.		1
12	88530115	267849	INPUT SHAFT 29 T.		1
13	98530157	183258	BEARING 46,2X80X31 MM		1
14		914478	SEEGER RING T.2,50 MM		1
15		1526601	BEARING		1
16		941558	SNAP RING T.2,80 MM		1
17	88530068	382252	GEAR	(2,3)	1
18	88530057	267944	GEAR 31 T	(4)	1
19	98531260	183990	NEEDLE BEARING 73X79X50		1
20	88530002	1526116	SYNCHRONIZER CONE	(A)	1
20	88530003	382797	SYNCHRONIZER CONE	(B)	1
20	88530003	382797	SYNCHRONIZER CONE		1
21	88530340	944313	SEEGER RING T.1,50 MM		1
22	88530023	382501	SYNCHRONIZER RING	(A)	2
22	88530004	382968	SYNCHRONIZER RING	(B)	2
22	88530009	267283	SYNCHRONIZER RING		2
23	88530213	382096	SYNCHRONIZER HUB	(A)	1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
23	88530010	382801	SYNCHRONIZER HUB	(B)	1
23	88530010	382801	SYNCHRONIZER HUB		1
24	95530117	1521241	BALL D.6		10
25	88530111	1667511	SPRING D.5,85X17,50		6
26	88530112	382102	SPRING		6
27	88530026	382101	SLIDING SLEEVE	(A)	1
27	88530008	382800	SLIDING SLEEVE	(B)	1
27	88530008	382800	SLIDING SLEEVE		1
28	88530060	1527076	INPUT SHAFT		1
28	88530042	1527077	INPUT SHAFT		1
30		183358	NEEDLE BEARING		1
30	98531863	184084	NEEDLE BEAR. 27,5X45,5X19		1
31		942909	SEEGER RING
31		943321	SEEGER RING T.2,50 MM
31		943320	SEEGER RING T.2,40 MM
31		943319	SEEGER RING T.2,30 MM
31		943318	SEEGER RING T.2,20 MM
32		943740	SEEGER RING
33	88530024	266811	SYNCHRONIZER CONE	(A)	1
33	88530016	267284	SYNCHRONIZER CONE	(B)	1
33	88530016	267284	SYNCHRONIZER CONE		1
34		941558	SNAP RING T.2,80 MM		1
35		1526561	BEARING		1
36		941558	SNAP RING T.2,80 MM
36		941552	SNAP RING T.2,70 MM
36		941553	SNAP RING T.2,60 MM
36		971554	SNAP RING T.2,50 MM
36		941555	SNAP RING T.2,40 MM
36		942333	SNAP RING T.2,30 MM
37	88530061	382255	INPUT SHAFT 28 T.		1
37	88530040	267285	INPUT SHAFT 28 T.		1
38	98530157	183258	BEARING 46,2X80X31 MM		1
39		914523	LOCK RING T.1,75 MM		1
40		382695	WASHER		1
41		382987	SCREW		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
42	88530541	382693	SPACER		1
43		914474	SNAP RING 51,26X55X2 MM		1
44		943322	SHIM		1
45		1526063	BEARING 55X120X29 MM		1
46		1526051	O-RING		1
47	88530035	382257	GEAR OVERDRIVE 42 T		1
48	88530477	382258	SHIFT FORK	OVERDRIVE	1
49		382263	LEVER		1
49	88530648	267860	LEVER		1
50	88530547	382262	BUSH		1
51	88530542	943741	OIL SEAL D.36,20		1
52	88530494	958666	BUSH		1
53		943739	PIN		1
54	95570130	914540	RETAINER RING T.2,50 MM		1	NSS
55		914480	SEEGER RING T.2,50 MM		1
56	88530051	382778	NUT M2X16		1
57	88530052	382779	LOCK WASHER		1
58	88530028	382185	SYNCHRONIZER CONE	(C)	1
58	88530003	382797	SYNCHRONIZER CONE	(D)	1
58	88530003	382797	SYNCHRONIZER CONE		1
59	88530023	382501	SYNCHRONIZER RING	(C)	2
59	88530004	382968	SYNCHRONIZER RING	(D)	2
59	88530004	382968	SYNCHRONIZER RING		2
60	88530213	382096	SYNCHRONIZER HUB	(C)	1
60	88530010	382801	SYNCHRONIZER HUB	(D)	1
60	88530010	382801	SYNCHRONIZER HUB		1
61	95530117	1521241	BALL D.6		10
62	88530111	1667511	SPRING D.5,85X17,50		6
63	88530112	382102	SPRING		6
64	88530026	382101	SLIDING SLEEVE	(C)	1
64	88530008	382800	SLIDING SLEEVE	(D)	1
64	88530008	382800	SLIDING SLEEVE		1
65	88530031	382777	HUB		1
66	88530131	181565	BUSH D. 65X55X46		1
67	88530320	183988	NEEDLE BEARING 65X73X46 W		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
68	88530340	944313	SEEGER RING T.1,50 MM		3
69		382175	FORK CONST/3RD		1
70	88530019	382565	SLIDE		6
71		1526140	TIE ROD CONST/3RD		1
72		382211	GEAR 3RD SPEED 34 T.	(C)OLD(2)	1
73	88530002	1526116	SYNCHRONIZER CONE	(C)NEW	1
73	88530003	382797	SYNCHRONIZER CONE	(D)NEW	1
73	88530003	382797	SYNCHRONIZER CONE		1
74	88530069	266984	GEAR 3RD SPEED 34 T.	(4)	1
74	88530069	266984	GEAR 3RD SPEED 34 T.		1
75	88530053	266938	SHIM 93X55X8 MM		1
76	88530131	181565	BUSH D. 65X55X46		1
77	88530320	183988	NEEDLE BEARING 65X73X46 W		1
78		382207	GEAR 2ND SPEED 41 T.	OLD	1
78		382601	GEAR 2ND SPEED 41 T.	(2)	1
79	88530055	266983	GEAR 2ND SPEED 41 T.	(4)	1
79	88530055	266983	GEAR 2ND SPEED 41 T.		1
80	88530002	1526116	SYNCHRONIZER CONE	NEW	2
80	88530012	266505	SYNCHRONIZER CONE	NEW	2
80	88530017	267949	SYNCHRONIZER CONE		2
81		1526117	SYNCHRONIZER CONE	NEW	1
82	88530075	382500	SYNCHRONIZER RING(BRONZE)		2
82	88530022	382606	SYNCHRONIZER RING(STEEL)		2
82	88530018	267955	SYNCHRONIZER RING(STEEL)		2
83		382199	SYNCHRONIZER HUB		1
83	88530220	266921	SYNCHRONIZER HUB		1
84	95530117	1521241	BALL D.6		10
85	88530116	382127	SPRING D.5,85X25		6
86	88530111	1667511	SPRING D.5,85X17,50		6
87		382204	SLIDING SLEEVE		1
87	88530021	267921	SLIDING SLEEVE		1
88	88530081	382197	HUB		1
89	88530132	181569	BUSH		1
90	98531259	183989	NEEDLE BEARING 70X78X50		1
91		382194	GEAR 1ST SPEED 48 T.	OLD(2)	1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
91		382683	GEAR 1ST SPEED 48 T.	OLD(2)	1
92	88530054	266982	GEAR 1ST SPEED 48 T.	(4)	1
92	88530054	266982	GEAR 1ST SPEED 48 T.		1
93	88530324	266939	WASHER 97X60X8 MM		1
94		941558	SNAP RING T.2,80 MM		1
95	98530458	1527510	BEARING 65X160X37 MM		1
97		945434	SNAP RING T.3,00 MM
97		941558	SNAP RING T.2,80 MM
97		941552	SNAP RING T.2,70 MM
97		941553	SNAP RING T.2,60 MM
97		941554	SNAP RING T.2,50 MM
97		941555	SNAP RING T.2,40 MM
97		942333	SNAP RING T.2,30 MM
98		382192	MAIN SHAFT		1
98	88530078	382560	MAIN SHAFT 22 T.		1
99	98530157	183258	BEARING 46,2X80X31 MM		1
100	95570130	914540	RETAINER RING T.2,50 MM		1	NSS
101		382177	FORK 1ST/2ND		1
103		382176	TIE ROD 1ST/2ND		1
104		914474	SNAP RING 51,26X55X2 MM		2
105		1526051	O-RING		2
106		1526063	BEARING 55X120X29 MM		2
106		183855	BEARING 55X120X29 MM		2
107		914478	SEEGER RING T.2,50 MM		1
108		266936	SPACER		1
109	88530196	382189	DRIVER GEAR 44 T		1
109	88530049	382248	DRIVER GEAR 45 T		1
110	88530118	382190	DRIVER GEAR 3RD 39 T.		1
111	88530117	382191	DRIVER GEAR 2ND 33 T.		1
112		382188	COUNTERSHAFT		1
112	88530216	382559	COUNTERSHAFT		1
113	88530086	266987	COUNTERSHAFT 27 T.		1
114	98530157	183258	BEARING 46,2X80X31 MM		1
114	98530164	183596	NEEDLE BEARING 52X80X26		1
115	95570130	914540	RETAINER RING T.2,50 MM		1	NSS

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
116		190747	SNAP RING T.2,05 MM		1
116		190746	SNAP RING T.1,95 MM		1
116		190745	SNAP RING T.1,85 MM		1
116	88170413	914470	SNAP RING T.1,75 MM		1	NSS
117		382235	GEAR		1
117	88530218	382597	GEAR 30 T.		1
118		181563	BEARING		1
119	88530652	382234	WASHER		1
120		382233	REVERSE GEAR		1
120	88530001	382564	REVERSE GEAR 15 T		1
121	88530345	1526190	NEEDLE BEARING 55X62X54		1
122	88530038	266767	SLIDING SLEEVE		1
123	88530059	382232	REVERSE SHAFT 16/19/16 T.		1
124	98530158	183588	BEARING 50X110X27 MM		1
125		267700	SHIM 3,00 MM
125		267699	SHIM 2,90 MM
125		267698	SHIM 2,80 MM
125		267697	SHIM 2,70 MM
126	95531723	914472	SEEGER RING T.2,00 MM		1
127		382360	BUSH		1
128		382180	REVERSE FORK		1
129		382179	BUSH		1
130		382491	SPACER		1
130		382492	SPACER		1
130		382490	SPACER		1
131		382346	SPRING
131		382608	SPRING
132		60309	BALL Ø 9,525 MM
133		382067	PIN		1
134		382460	SPRING		1
134		382607	SPRING		1
135		382066	CYLINDER		1
136	88530540	382069	LOCK PIN		2
137		955964	CIRCLIP 7,46X8X0,80 MM		1
138		382506	TIE ROD REVERSE		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
139	88530119	382216	OUTPUT SHAFT		1
139	88530124	266536	OUTPUT SHAFT 28 T.		1
140	88530005	382220	SYNCHRONIZER CONE		1
140	88530015	267954	SYNCHRONIZER CONE		1
141	88530006	382981	SYNCHRONIZER RING(BRONZE)		1
141	88530013	266530	SYNCHRONIZER RING(STEEL)		1
142	88530219	382984	SYNCHRONIZER HUB		1
142	88530221	266531	SYNCHRONIZER HUB		1
143	88530030	382982	SYNCHRONIZER RING(BRONZE)		1
143	88530013	266530	SYNCHRONIZER RING(STEEL)		1
144	88530120	308452	BALL		10
145	88530121	267324	SPRING OUTER D.7X20		6
146	88530123	382224	SPRING		2
147	88530125	267352	CUP		6
148	88530126	267948	SPRING D.7X34		6
149	88530127	266899	PIN		6
150	88530014	267953	SYNCHRONIZER CONE	(5)	1
151	88530007	382223	SLIDING SLEEVE		1
151	88530020	1526943	SLIDING SLEEVE		1
152	88530080	382218	GEAR 36 T		1
152	88530029	382563	GEAR 36 T		1
153	88530033	267350	GEAR 36 T		1
154	88530262	382221	THRUST WASHER		1
155		183593	BEARING 65X160X37 MM		1
156		382993	FOLLOWER RING		1
157	88530284	267269	OIL SEAL B1BAVISLRSX7		1
158	88530077	382990	OUTPUT FLANGE D.203		1
158	88170260	1523282	OUTPUT FLANGE		1
159	88530052	382779	LOCK WASHER		1
160	88170343	943805	GROOVED NUT 1"3/4-12 UNF		1
161		914480	SEEGER RING T.2,50 MM		1
163		382182	FORK	RANGE	1
164		382181	CONTROL ROD	RANGE	1
164	88530476	267811	CONTROL ROD	RANGE	1
165		1526051	O-RING		1

Last update 01/2014

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
166		1526061	BEARING		1
167		941560	SEEGER RING		1
168		382215	GEAR		1
168	88530076	382562	GEAR 36 T		1
169		382214	LAY SHAFT		1
169	88530130	382561	LAY SHAFT 15 T		1
170		181599	BEARING		1
170		183360	BEARING		1
171		942164	SHIM 2,50 MM
171		942163	SHIM 2,30 MM
171		942161	SHIM 2,00 MM
171		942160	SHIM 1,90 MM
171		942159	SHIM 1,70 MM
171		942158	SHIM 1,50 MM
171		943350	SHIM 1,30 MM
172		382009	COVER		1
173		382010	GASKET		1
174		382354	COVER		1
175		382361	GASKET		1
176		382353	OIL FILTER		1
177		1527805	COVER		1
178		382172	GASKET		1
179	88530027	382173	FRAME		1
180	88530032	205	BALL	Ø 11,112	3
181	88530050	382309	SPRING		3
182	88530048	382072	SPRING		3
184	88530650	382073	PIN		2
185	88530651	382074	PIN		1
186	88530019	382565	SLIDE		2
187		951079	SEEGER RING T.4,00 MM		1
188		183993	NEEDLE BEARING 80X90X78		1
189	88530044	273081	REPAIR KIT CYLINDER		1
189	88530263	276146	REPAIR KIT CYLINDER		1
190	88530045	273082	REPAIR KIT LOCK VALVE	(1)	1
190	88530064	276335	REPAIR KIT LOCK VALVE	(6)	1

Last update 01/2014

Fig.

Our No.

Part No.

Description

Notes

Q.ty

191

88530293

270823

GASKET REPAIR KIT

192

88530258

*****

REPAIR KIT

193

88530259

*****

REPAIR KIT

194

88530260

*****

REPAIR KIT

195

88530266

*****

REPAIR KIT

195

88530261

*****

REPAIR KIT

196

88530093

*****

REPAIR KIT

197

88530087

*****

REPAIR KIT

(ABCD) TO BE COUPLED TOGETHER
(1) ONLY FOR 1ST GENERATION VALVE NOT SHOWED IN THIS CATALOGUE. DO NOT USE IN PLACE OF 88530064 - 276335
(2) OLD TYPE WITH CONE ASSY
(3) SUPPLIED 1 PC. 88530057 - 267944 (FIG.18) + 1 PC. 88530002 - 1526116 (FIG.20)
(4) NEW TYPE WITHOUT CONE ASSY
(5) ONLY WITH GEAR 267350 - 88530033 (FIG.153)
(6) FOR NEW GENERATION VALVE
