(A) R1000 UP TO GEARBOX 11842 / R1400 UP TO GEARBOX 18614 / R1700 UP TO GEARBOX 6739
(B) R1000 UP TO GEARBOX 11843 / R1400 UP TO GEARBOX 18615 / R1700 UP TO GEARBOX 6740
(C) R1000 UP TO GEARBOX 95414001
(D) R1000 FROM GEARBOX 95414002
(E) LATEST GENERATION
(F) R1000 UP TO GEARBOX 95043006 / R1400 UP TO GEARBOX 95043006 / R1700 UP TO GEARBOX 9502000
(G) R1000 FROM GEARBOX 95043007 / R1400 FROM GEARBOX 95043007 / R1700 FROM GEARBOX 9502001
(1) OLD STYLE. USE NEW STYLE SLIDING SLEEVE 88530302 - 1653240 (FIG.23) + NEW STYLE HUB 88530312 - 1668213 (FIG.18)
(2) OLD STYLE. USE NEW STYLE HUB 88530287 - 1668214 (FIG.35) + NEW STYLE SLIDING SLEEVE 88530296 - 1668244 (FIG.36)
(3) OLD STYLE. USE NEW STYLE HUB 88530384 - 1668216 (FIG.87) + NEW STYLE SLIDING SLEEVE 88530388 - 1668248 (FIG.93)
(4) STRAIGHT TEETH
(5) HELICAL TEETH
(6) OLD TYPE WITH SLEEVE 88530179 - 1656266 (FIG.49)
(7) NEW TYPE WITH SLEEVE 88530448 - 20366826 (FIG.49)
(8) OLD TYPE WITH HUB 88530178 - 1656265 (FIG.48)
(9) NEW TYPE WITH HUB 88530447 - 20366731 (FIG.48)
(10) 3 SERIES FOR KIT
(11) 4 SERIES FOR KIT
(12) 5 SERIES FOR KIT
(13) COMPLETE - TO 276113 (3 SERIES)
(14) COMPLETE - TO 276114 (4 SERIES)
(15) COMPLETE LATEST TYPE
(16) 120-160-200 PCS.
(17) 1673844 (FIG.97) REPLACED BY: 21050690 (PSS-SING) AND 21050691 (PSS-DUAL)

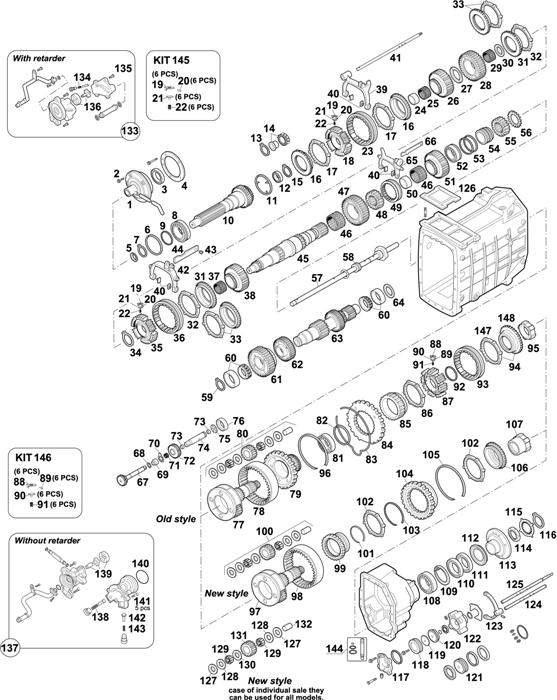

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
11		1653063	SPACER T.2,20 MM	(A)
11		1653062	SPACER T.1,80 MM	(A)
11		1653061	SPACER T.1,40 MM	(A)
11		1653060	SPACER T.1,00 MM	(A)
12		184679	BEARING 40X80X32 MM		1
13		914468	SNAP RING T.1,75 MM	(A)	1
14	98530288	1652559	BEARING 40X74X31,70 MM	(A)	1
14	98530284	1656104	BEARING 45X35 MM	(B)	1
14	98530284	1656104	BEARING 45X35 MM		1
15		1652791	SEEGER RING T.3,50 MM
15		1652790	SEEGER RING T.3,40 MM
15		1652789	SEEGER RING T.3,30 MM
15		1652788	SEEGER RING T.3,20 MM
15		1652787	SEEGER RING T.3,10 MM
16	88530082	1653920	SYNCHRONIZER CONE		2
17	88530297	1653960	SYNCHRONIZER RING		2
18	88530312	1668213	SYNCHRONIZER HUB 3RD/4TH		1
19	88530366	1653990	SLIDING BLOCK		8
20	88530365	1653900	PIN		8
21	88530364	1668280	SLIDING BLOCK		8
22	88530363	1653901	SPRING		8
23	88530378	1653940	SLIDING SLEEVE	OLD(1)	1
23	88530302	1653240	SLIDING SLEEVE 3RD/4TH	NEW	1
24		1652131	BUSH		1
24		1652569	BUSH		1
25		1652135	NEEDLE BEARING		1
25	98531872	1652572	NEEDLE BEARING 80X88X55		1
25	98530234	1655563	NEEDLE BEARING 80X88X46 W		1
26		1652051	GEAR 3RD SPEED		1
26	88530406	1652871	GEAR 3RD SPEED 36 T.		1
26		1069196	GEAR 3RD SPEED		1
27	88530368	1652844	WASHER		1
28		1652052	GEAR 1ST SPEED		1
28	88530405	1653378	GEAR 1ST SPEED 44 T.	(C)	1
28		1671996	GEAR 1ST SPEED	(D)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
28		1069317	GEAR 1ST SPEED	(E)	1
28	88531132	1673853	GEAR 1ST SPEED 44 T.		1
28		1671996	GEAR 1ST SPEED		1
29		1652135	NEEDLE BEARING		1
29	98531872	1652572	NEEDLE BEARING 80X88X55		1
29	98530234	1655563	NEEDLE BEARING 80X88X46 W		1
30		1652175	SPACER		1
30		1652818	SPACER		1
30		1655593	SPACER T.6,80 MM		1
31	88530291	1653924	SYNCHRONIZER CONE	(F)	2
32	88530295	1653964	SYNCHRONIZER RING	(F)	2
33	88530434	1669360	SYNCHRONIZER KIT 1ST/2ND	(G)	2
33	88530434	1669360	SYNCHRONIZER KIT 1ST/2ND		2
34		1652918	SEEGER RING T.3,50 MM
34		1652786	SEEGER RING T.3,40 MM
34		1652785	SEEGER RING T.3,30 MM
34		1652784	SEEGER RING T.3,20 MM
35	88530041	1653914	SYNCHRONIZER HUB 1ST/2ND	OLD(2)	1
35	88530287	1668214	SYNCHRONIZER HUB 1ST/2ND	NEW	1
36	88530288	1653944	SLIDING SLEEVE	OLD(F)(2)	1
36	88530296	1668244	SLIDING SLEEVE 1ST/2ND	NEW(F)	1
36	88530437	1669034	SLIDING SLEEVE	(G)	1
36	88530437	1669034	SLIDING SLEEVE		1
37	98530408	1652261	NEEDLE BEARING 90X98X40		1
37	98530235	1652575	NEEDLE BEAR. 90X98X45,50		1
38		1652061	GEAR 2ND SPEED		1
38	88530404	1653376	GEAR 2ND SPEED 39 T.		1
39		1652153	FORK 3RD/4TH	LEFT HAND	1
39		1652707	FORK 3RD/4TH	LEFT HAND	1
39		1652157	FORK 3RD/4TH	RIGHT HAND	1
39		1652708	FORK 3RD/4TH	RIGHT HAND	1
39		1653151	FORK 3RD/4TH	LEFT HAND	1
39		1652708	FORK 3RD/4TH	RIGHT HAND	1
39		1668753	FORK 3RD/4TH	RIGHT HAND	1
40	88530019	382565	SLIDE		6

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
41		1652154	TIE ROD 3RD/4TH	(A)	1
41		1668076	TIE ROD 3RD/4TH	(B)	1
41		1652717	TIE ROD 3RD/4TH	(A)	1
41		1656248	TIE ROD 3RD/4TH	(B)	1
41		1656248	TIE ROD 3RD/4TH		1
42		1652924	FORK 1ST/2ND	LEFT HAND	1
42		1652927	FORK 1ST/2ND	RIGHT HAND	1
42		1669434	FORK 1ST/2ND	LEFT	1
42		1669433	FORK 1ST/2ND	RIGHT	1
43		1652721	BUSH		1
44		1652152	TIE ROD 1ST/2ND		1
44		1652714	TIE ROD 1ST/2ND		1
44		1655545	TIE ROD 1ST/2ND		1
45		1652037	MAIN SHAFT	(A)	1
45		1668068	MAIN SHAFT	(B)	1
45		1652523	MAIN SHAFT	(A)	1
45	88530403	1656251	MAIN SHAFT	(B)	1
45	88531079	20366733	MAIN SHAFT		1
45	88530403	1656251	MAIN SHAFT		1
46		1652139	NEEDLE BEARING		2
46	98530235	1652575	NEEDLE BEAR. 90X98X45,50		2
47		1652065	GEAR LOW		1
47	88530101	1652617	GEAR LOW 47 T.	(C)(D)(4)	1
47	88531139	1673434	GEAR LOW 38 T.	(E)(5)	1
47	88531139	1673434	GEAR LOW 38 T.		1
48	88531093	1652544	SYNCHRONIZER HUB 28 T.	(A)	1
48	88530178	1656265	SYNCHRONIZER HUB	(B)(6)	1
48	88530447	20366731	SYNCHRONIZER HUB	(B)(7)	1
49	88530472	1652545	SLIDING SLEEVE	(A)	1
49	88530179	1656266	SLIDING SLEEVE	(B)(8)	1
49	88530448	20366826	SLIDING SLEEVE	(B)(9)	1
50		1652143	BUSH		1
50	88530555	1652578	BUSH		1
51		1652066	REVERSE GEAR		1
51	88530104	1652618	REVERSE GEAR 43 T.	(C)(D)(4)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
51	88531054	1673432	REVERSE GEAR 34 T.	(E)(5)	1
51	88531108	1672243	REVERSE GEAR 34 T.		1
51	88531054	1673432	REVERSE GEAR 34 T.		1
52	98530409	1652123	BEARING 70X150X30,5 MM		1
52		1652553	BEARING	(A)	1
52	98530291	1656129	BEARING 70X150X40 MM	(B)	1
52	98530409	1652123	BEARING 70X150X30,5 MM		1
52	98530291	1656129	BEARING 70X150X40 MM		1
53	88531086	1652820	RING T.4,50 MM		2
54		1652548	SPACER	(A)	1
54	88530612	1656232	SPACER	(B)	1
54	88530612	1656232	SPACER		1
55	88530373	1652550	SUN GEAR 24 T	(A)	1
55	88530374	1521910	SUN GEAR 24 T	(B)	1
55	88530374	1521910	SUN GEAR 24 T		1
56	88530556	20944716	WASHER		1
57		1652257	OIL TUBE	(A)	1
57	88531052	1668074	OIL TUBE	(B)	1
57		1652681	OIL TUBE	(A)	1
57	88531113	1656263	OIL TUBE	(B)	1
57	88531052	1668074	OIL TUBE		1
57	88531113	1656263	OIL TUBE		1
58	88531087	949656	O-RING (GREEN)19,2X3 MM		1
59		1652801	SEEGER RING T.2,50 MM
59		1652800	SEEGER RING T.2,40 MM
59		1652799	SEEGER RING T.2,30 MM
59		1652798	SEEGER RING T.2,20 MM
59		1652797	SEEGER RING T.2,10 MM
59		1652796	SEEGER RING T.2,00 MM
60	98530405	1652099	BEARING 60X110X29,75 MM		2
60	98530285	1652563	BEARING 60X110X38 MM		2
61		1652060	CONSTANT GEAR		1
61	88530401	1669804	CONSTANT GEAR 44 T		1
61	88530679	20366329	CONSTANT GEAR 44 T.		1
62		1652057	GEAR 3RD SPEED		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
62	88530400	1652872	GEAR 3RD SPEED 38 T.		1
62	88531136	20366330	GEAR 3RD SPEED 38 T.		1
63		1652040	COUNTERSHAFT		1
63	88530399	1653379	COUNTERSH. 23/29/15/15 T.	(C)	1
63		1669631	COUNTERSHAFT	(D)	1
63		1069314	COUNTERSHAFT	(E)	1
63	88531135	20366930	COUNTERSHAFT 23/29/12 T.		1
63		1673443	COUNTERSHAFT		1
64		1652840	WASHER T.1,86 MM
64		1652839	WASHER T.1,82 MM
64		1652838	WASHER T.1,78 MM
64		1652837	WASHER T.1,74 MM
64		1652836	WASHER T.1,70 MM
64		1652835	WASHER T.1,66 MM
64		1652834	WASHER T.1,62 MM
64		1652833	WASHER T.1,58 MM
64		1652832	WASHER T.1,54 MM
64		1652831	WASHER T.1,50 MM
64		1652830	WASHER T.1,46 MM
64		1652829	WASHER T.1,42 MM
64		1652828	WASHER T.1,38 MM
64		1652827	WASHER T.1,34 MM
64		1652826	WASHER T.1,30 MM
64		1652825	WASHER T.1,26 MM
64		1652824	WASHER T.1,22 MM
64		1652823	WASHER T.1,18 MM
64		1652822	WASHER T.1,14 MM
64		1652821	WASHER T.1,10 MM
64		1652942	WASHER T.1,06 MM
64		1652941	WASHER T.1,02 MM
64		1652940	WASHER T.0,98 MM
64		1652939	WASHER T.0,94 MM
64		1652938	WASHER T.0,90 MM
65		1652922	REVERSE FORK	(A)	1
65		1652923	REVERSE FORK	(A)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
65		1656238	REVERSE FORK	(B)	1
65		1656236	REVERSE FORK	(B)	1
65		20366226	REVERSE FORK		1
65		1655582	REVERSE FORK		1
66		1652151	REVERSE TIE ROD		1
66		1652712	REVERSE TIE ROD		1
66		1655546	REVERSE TIE ROD		1
67		1652253	OIL PUMP SHAFT		1
67	88530157	3192123	OIL PUMP SHAFT		1
67	88530667	1667078	OIL PUMP SHAFT		1
68	88530605	1652841	WASHER		1
69	88530538	1652631	SLEEVE		1
70	88530606	1652176	WASHER		1
71		1652147	NEEDLE BEARING		1
71	98530315	1652581	NEEDLE BEARING 42X50X60		1
72		1652064	REVERSE GEAR		1
72	88530107	1652539	REVERSE GEAR	(C)(D)(4)	1
72	88530568	1521423	REVERSE GEAR 20 T.	(E)(5)	1
72	88530706	1672244	REVERSE GEAR 20 T.		1
72	88530568	1521423	REVERSE GEAR 20 T.		1
73	98530406	183363	BEARING 14X20X12 MM		2
74		1652035	REVERSE SHAFT		1
74	88530449	20366756	REVERSE SHAFT		1
74	88530712	1655527	REVERSE SHAFT		1
75	88530607	1652948	LOCK RING		1
76	88530666	1652884	SPACER		1
77		1652282	PLANET CARRIER COMPLETE		1
77		1652592	PLANET CARRIER COMPLETE		1
77	88530422	1652593	PLANET CARRIER COMPLETE		1
78	88530381	1652552	CROWN 66 T.		1
79	88530382	1652587	CARRIER HUB		1
80		271123	REPAIR KIT	(10)	1
80	88530423	270192	REPAIR KIT	(11)	1
80	88530424	270193	REPAIR KIT	(12)	1
81		1652600	BEARING		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
82		1652590	RETAINER RING		1
83		1652177	LOCK RING		1
84	88530383	1652280	RING		1
85	88530316	1653935	SYNCHRONIZER CONE		1
86	88530467	1668263	SYNCHRONIZER RING		1
87	88530046	1653916	SYNCHRONIZER HUB	OLD(3)	1
87	88530384	1668216	SYNCHRONIZER HUB	NEW	1
88	88530387	1653996	SLIDING BLOCK		6
89	88530365	1653900	PIN		6
90	88530386	1669260	SLIDING BLOCK		6
91	88530385	1653902	SPRING		6
92		1652591	RETAINER RING		1
93	88530389	1653948	SLIDING SLEEVE	OLD(3)	1
93	88530388	1668248	SLIDING SLEEVE	NEW	1
94	88530315	1668232	SYNCHRONIZER KIT		1
95		1652599	SENSOR WHEEL		1
96		1652589	RETAINER RING		1
97		1656297	PLANET CARRIER COMPLETE	(13)	1
97		1656299	PLANET CARRIER COMPLETE	(14)	1
97		1656299	PLANET CARRIER COMPLETE		1
97		1673898	PLANET CARRIER COMPLETE	(15)	1
97	88530425	1656298	PLANET CARRIER COMPLETE		1
97		1673844	PLANET CARRIER COMPLETE	(15,17)	1
98	88530393	1656209	CROWN 66 T.		1
99	88530394	1668452	SYNCHRONIZER CONE		1
100		276113	REPAIR KIT	(10)	1
100	88530426	276114	REPAIR KIT	(11)	1
100	88530427	276115	REPAIR KIT	(12)	1
101		943760	RING 133X130X2,50 MM		1
102	88530395	1668456	SYNCHRONIZER RING		2
103	88531109	1668459	RING		1
104	88530396	1068946	SLIDING SLEEVE		1
105	88530548	8171420	RING		1
106	88530106	1668450	SYNCHRONIZER CONE	OLD	1
106	88530721	21235526	SYNCHRONIZER CONE	NEW	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
107		1669623	SENSOR WHEEL		1
108	98530386	21001091	BEARING 70X140X26 MM	OLD	1
108		21170624	BEARING 70X140X26 MM	NEW	1
109		914556	SEEGER RING T.4,00 MM
109		1652804	SEEGER RING T.3,90 MM
109		1652803	SEEGER RING T.3,80 MM
109		1652802	SEEGER RING T.3,70 MM
110	88530471	1652776	OIL SEAL 90X145X10 MM		1
111	88531091	1652622	OIL SEAL 90X111X8 MM		1
112		1652598	DUST COVER		1
113	88530286	1524358	OUTPUT FLANGE D.203		1
113	88531110	8172618	OUTPUT FLANGE	(E)	1
114	88530355	1522293	NUT		1
115	88530539	1523318	WASHER		1
116	95531735	914484	SEEGER RING T.2,50 MM		1
117		1653070	COVER		1
117		1521384	COVER		1
117		20514657	COVER		1
117		3192384	COVER		1
118		1653171	PISTON GASKET		1
119		1652642	WASHER T.2,00 MM
119		1652641	WASHER T.1,20 MM
119		1652640	WASHER T.1,00 MM
119	88530672	1652639	WASHER T.0,80 MM
120		1652756	PISTON	OLD	1
121		1669678	PISTON	NEW	1
121		1521943	PISTON		1
122		1656239	COVER		1
123		1652919	RANGE FORK		1
124		1652156	TIE ROD		1
124	88531051	1652755	TIE ROD		1
124		1521944	TIE ROD		1
125		1668078	TIE ROD		1
125		1668411	TIE ROD		1
125		1668411	TIE ROD		1
