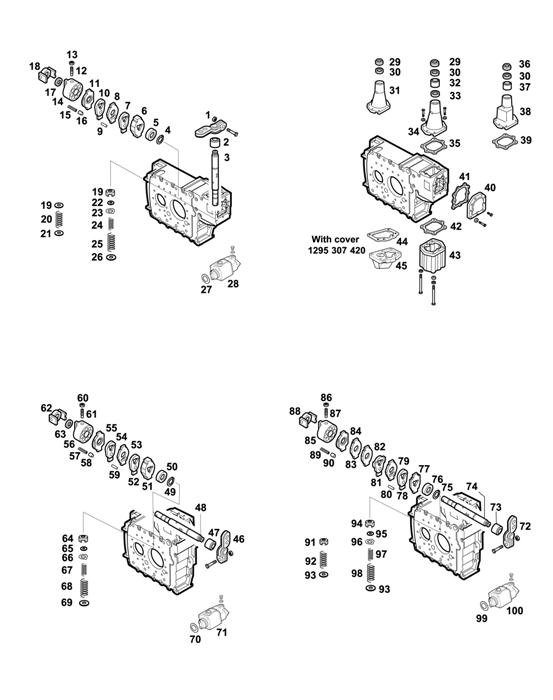

| Fig. |
Our No. |
Part No. |
|
Description |
Notes |
Q.ty |
TP |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| 1 |
95531265 |
1295 307 533 |
|
CONTROL LEVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1 |
|
1295 307 532 |
|
CONTROL LEVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1 |
|
1295 307 534 |
|
CONTROL LEVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1 |
|
1324 307 246 |
|
CONTROL LEVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1 |
|
1296 307 070 |
|
CONTROL LEVER |
(1) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 2 |
95532736 |
1238 307 411 |
|
COVER |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
| 2 |
|
1296 307 047 |
|
COVER |
(1) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 |
95531264 |
1295 307 275 |
|
DRIVE SHAFT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 |
95531263 |
1295 307 274 |
|
DRIVE SHAFT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 |
95531271 |
1295 307 330 |
|
DRIVE SHAFT |
(2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 |
|
1295 307 270 |
|
SELECTOR ROD |
(1) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 |
95531258 |
1295 307 273 |
|
DRIVE SHAFT |
(3) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 4 |
95531857 |
0630 532 205 |
|
RETAINER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5 |
95533447 |
1295 307 687 |
|
WASHER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 6 |
95531266 |
1295 307 360 |
|
LOCK |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 |
95533437 |
1295 307 178 |
|
DRIVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 8 |
95533436 |
1295 307 176 |
|
DRIVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 9 |
95531862 |
0631 306 832 |
|
PIN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 10 |
|
1295 307 174 |
|
DRIVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 11 |
95532450 |
1295 307 158 |
|
BRACKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 12 |
95532373 |
0731 611 046 |
|
STUD BOLT M12X1,5 |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
| 13 |
95531249 |
0637 002 039 |
|
NUT M12X1,5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 14 |
95531267 |
1295 307 304 |
|
BRACKET SELECTOR ROD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 14 |
|
1295 307 297 |
|
BRAKET SELECTOR ROD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 15 |
95530676 |
0732 040 736 |
|
SPRING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 16 |
95570100 |
1295 307 243 |
|
PIN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 17 |
95532104 |
0730 003 350 |
|
WASHER T.6,20 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 17 |
|
0730 062 408 |
|
WASHER T.6,20 MM |
(2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 18 |
95531268 |
1295 307 265 |
|
STOP SEGMENT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 18 |
|
1295 307 266 |
|
STOP SEGMENT |
(2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 19 |
95533455 |
1295 307 522 |
|
WASHER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 19 |
|
1295 307 526 |
|
WASHER |
(2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 20 |
|
0732 040 989 |
|
PRESSURE SPRING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 21 |
95532236 |
0730 301 376 |
|
WASHER T.2,00 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Last update 01/2014
| Fig. |
Our No. |
Part No. |
|
Description |
Notes |
Q.ty |
TP |
|
|
|
|
|
|
|
|
|
|
|
|
| 21 |
95532109 |
0730 003 740 |
|
WASHER T.2,00 MM |
(2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 22 |
95532183 |
0730 100 214 |
|
WASHER T.2,00 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 22 |
|
0730 003 739 |
|
WASHER T.2,00 |
(2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 23 |
95531856 |
0630 532 138 |
|
RETAINER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 23 |
95531857 |
0630 532 205 |
|
RETAINER |
(2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 24 |
|
0732 040 629 |
|
PRESSURE SPRING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 24 |
|
0732 041 670 |
|
PRESSURE SPRING |
(2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 24 |
|
0732 040 213 |
|
PRESSURE SPRING |
(1) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 24 |
|
0732 040 392 |
|
PRESSURE SPRING |
(3) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 25 |
95532382 |
0732 040 765 |
|
PRESSURE SPRING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 25 |
95532381 |
0732 040 630 |
|
PRESSURE SPRING |
(1,2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 25 |
|
0732 040 237 |
|
PRESSURE SPRING |
(3) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 26 |
95532236 |
0730 301 376 |
|
WASHER T.2,00 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 26 |
95532109 |
0730 003 740 |
|
WASHER T.2,00 MM |
(2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 27 |
95531009 |
0634 316 057 |
|
O-RING 36,2X3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 28 |
95531374 |
6038 202 003 |
|
VALVE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 29 |
95531248 |
0634 307 367 |
|
OIL SEAL 25X35X7/10 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 30 |
95531247 |
0634 300 302 |
|
OIL SEAL 25X35X7 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 31 |
|
1295 307 434 |
|
COVER |
(4) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 32 |
95570501 |
0730 260 330 |
|
BUSH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 33 |
95531870 |
0634 300 020 |
|
OIL SEAL 25X32X5 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 34 |
95531270 |
1295 307 294 |
|
COVER |
(4) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 34 |
|
1295 307 336 |
|
COVER |
(4) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 34 |
95531274 |
1295 307 420 |
|
COVER |
(5) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 35 |
95534120 |
1313 307 020 |
|
GASKET |
|
|
NSS
|
|
|
|
|
|
|
|
|
|
|
|
|
| 36 |
|
0634 307 933 |
|
OIL SEAL 28X38X5/8 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 37 |
|
0730 260 551 |
|
BUSH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 38 |
|
1296 307 042 |
|
COVER |
(4) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 39 |
95534121 |
1313 307 022 |
|
GASKET |
|
|
NSS
|
|
|
|
|
|
|
|
|
|
|
|
|
| 40 |
95531326 |
1295 307 479 |
|
COVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 41 |
95534116 |
1313 307 003 |
|
GASKET |
|
|
NSS
|
|
|
|
|
|
|
|
|
|
|
|
|
| 42 |
95534117 |
1313 307 004 |
|
GASKET |
|
|
NSS
|
|
|
|
|
|
|
|
|
|
|
|
|
| 43 |
95533453 |
1295 307 490 |
|
COVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 44 |
95534120 |
1313 307 020 |
|
GASKET |
|
|
NSS
|
|
|
|
|
|
|
|
|
|
|
|
|
| 45 |
|
1295 307 440 |
|
COVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Last update 01/2014
| Fig. |
Our No. |
Part No. |
|
Description |
Notes |
Q.ty |
TP |
|
|
|
|
|
|
|
|
|
|
|
|
| 46 |
|
1295 307 536 |
|
CONTROL LEVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 47 |
95532736 |
1238 307 411 |
|
COVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 48 |
|
1295 307 268 |
|
DRIVE SHAFT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 49 |
|
0630 501 248 |
|
RING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 50 |
95533447 |
1295 307 687 |
|
WASHER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 51 |
95531266 |
1295 307 360 |
|
LOCK |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 52 |
95533437 |
1295 307 178 |
|
DRIVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 53 |
95533436 |
1295 307 176 |
|
DRIVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 54 |
|
1295 307 174 |
|
DRIVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 55 |
|
1295 307 148 |
|
BRAKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 56 |
|
1295 307 320 |
|
BRAKET SELECTOR ROD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 57 |
95530676 |
0732 040 736 |
|
SPRING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 58 |
95570100 |
1295 307 243 |
|
PIN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 59 |
95531862 |
0631 306 832 |
|
PIN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 60 |
95531249 |
0637 002 039 |
|
NUT M12X1,5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 61 |
95532373 |
0731 611 046 |
|
STUD BOLT M12X1,5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 62 |
95531268 |
1295 307 265 |
|
STOP SEGMENT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 63 |
95532104 |
0730 003 350 |
|
WASHER T.6,20 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 64 |
95533455 |
1295 307 522 |
|
WASHER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 65 |
95532183 |
0730 100 214 |
|
WASHER T.2,00 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 66 |
95531856 |
0630 532 138 |
|
RETAINER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 67 |
|
0732 040 392 |
|
PRESSURE SPRING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 68 |
95532381 |
0732 040 630 |
|
PRESSURE SPRING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 69 |
95532236 |
0730 301 376 |
|
WASHER T.2,00 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 70 |
95531009 |
0634 316 057 |
|
O-RING 36,2X3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 71 |
95531374 |
6038 202 003 |
|
VALVE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 72 |
95532947 |
1324 307 245 |
|
CONTROL LEVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 72 |
|
1269 307 626 |
|
CONTROL LEVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 73 |
95532736 |
1238 307 411 |
|
COVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 74 |
|
1295 307 280 |
|
DRIVE SHAFT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 74 |
95531273 |
1295 307 278 |
|
DRIVE SHAFT |
(6) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 75 |
95531857 |
0630 532 205 |
|
RETAINER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 76 |
|
1295 307 379 |
|
WASHER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 77 |
|
1295 307 585 |
|
STOP SEGMENT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 78 |
95533437 |
1295 307 178 |
|
DRIVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Last update 01/2014
| Fig. |
Our No. |
Part No. |
|
Description |
Notes |
Q.ty |
TP |
|
|
|
|
|
|
|
|
|
|
|
|
| 79 |
95533436 |
1295 307 176 |
|
DRIVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 80 |
95531862 |
0631 306 832 |
|
PIN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 81 |
|
1295 307 175 |
|
DRIVER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 82 |
|
1295 307 185 |
|
STOP SEGMENT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 83 |
|
1295 307 190 |
|
STOP SEGMENT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 84 |
|
1295 307 427 |
|
BRACKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 85 |
|
1295 307 321 |
|
BRACKET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 86 |
95531249 |
0637 002 039 |
|
NUT M12X1,5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 87 |
95532373 |
0731 611 046 |
|
STUD BOLT M12X1,5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 88 |
95531268 |
1295 307 265 |
|
STOP SEGMENT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 88 |
|
1295 307 266 |
|
STOP SEGMENT |
(6) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 89 |
95530676 |
0732 040 736 |
|
SPRING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 90 |
95570100 |
1295 307 243 |
|
PIN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 91 |
95533455 |
1295 307 522 |
|
WASHER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 91 |
|
1295 307 526 |
|
WASHER |
(6) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 92 |
95532382 |
0732 040 765 |
|
PRESSURE SPRING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 93 |
95532236 |
0730 301 376 |
|
WASHER T.2,00 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 93 |
95532109 |
0730 003 740 |
|
WASHER T.2,00 MM |
(6) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 94 |
95533455 |
1295 307 522 |
|
WASHER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 94 |
|
1295 307 526 |
|
WASHER |
(6) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 95 |
95532183 |
0730 100 214 |
|
WASHER T.2,00 MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 95 |
95531857 |
0630 532 205 |
|
RETAINER |
(6) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 96 |
95531856 |
0630 532 138 |
|
RETAINER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 97 |
|
0732 040 392 |
|
PRESSURE SPRING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 98 |
95532381 |
0732 040 630 |
|
PRESSURE SPRING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 99 |
95531009 |
0634 316 057 |
|
O-RING 36,2X3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 100 |
95531374 |
6038 202 003 |
|
VALVE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(1) TO BE USED TOGETHER. VERSION WITH COVER 1296 307 042
(2) TO BE USED TOGETHER. VERSION WITH COVER 1295 307 420
(3) TO BE USED TOGETHER. VERSION WITH COVER 1295 307 434
(4) WITH FIG. 42 - 43
(5) WITH FIG. 44 - 45
(6) TO BE USED TOGETHER. VERSION WITH COVER 1295 307 342
