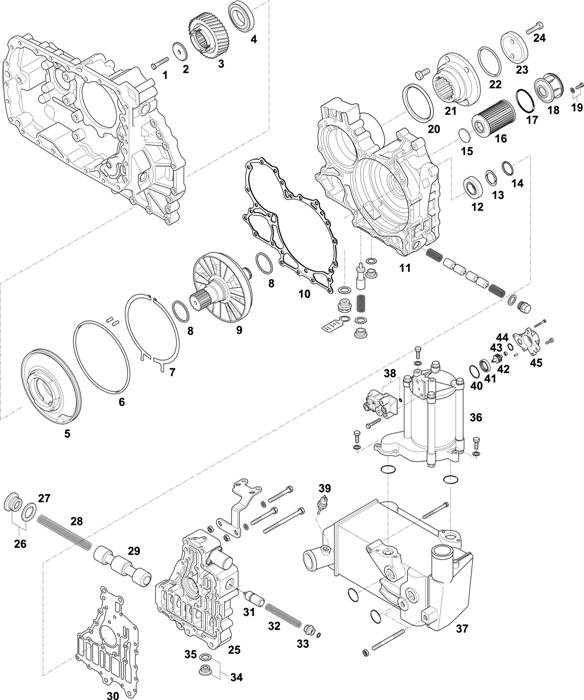

Fig.	Our No.	Part No.		Description	Notes	Q.ty	TP
1		0636 011 434		SCREW M12X80		1
2		6085 301 220		WASHER		1
3		6085 301 012		SPUR GEAR 29 T.		1
4	98530082	0750 117 083		BEAR. 50,8X95,2X27,7 MM		1
5		6085 301 206		STATOR		1
6	95532569	0634 314 438		O-RING 240X3		1
7		6085 301 155		ELASTIC RING		1
8	95532568	0734 401 251		SEAL RING 65,1X70X3,5 MM		2
9		6085 301 053		ROTOR		1
10	95532565	0501 315 048		SHEET GASKET		1
11		6085 301 207		HOUSING		1
12	98530374	0750 117 353		BEARING 33,3X68,2X22,2 MM		1
13		6085 201 054		SPLIT RING T.3,70 MM		1
13		6085 201 053		SPLIT RING T.3,65 MM		1
13		6085 201 052		SPLIT RING T.3,60 MM		1
13		6085 201 051		SPLIT RING T.3,55 MM		1
13		6085 201 050		SPLIT RING T.3,50 MM		1
13		6085 201 049		SPLIT RING T.3,45 MM		1
13		6085 201 048		SPLIT RING T.3,40 MM		1
13		6085 201 047		SPLIT RING T.3,35 MM		1
13		6085 201 046		SPLIT RING T.3,30 MM		1
13		6085 201 045		SPLIT RING T.3,25 MM		1
13		6085 201 044		SPLIT RING T.3,20 MM		1
13		6085 201 043		SPLIT RING T.3,15 MM		1
13		6085 201 042		SPLIT RING T.3,10 MM		1
13		6085 201 041		SPLIT RING T.3,05 MM		1
14	95532175	0730 063 154		RETAINER RING T.3,40 MM		1
15	95534677	1048 301 010		MAGNETIC OIL PLUG		1	NSS
16	95534668	0750 131 003		OIL FILTER KIT	(1)	1	NSS
17	95534675	0634 313 067		O-RING 70X3		1	NSS
18		6085 301 020		COVER		1
19		0636 024 073		SCREW M8X20		1
20	95532566	0734 319 459		OIL SEAL 105X125X12 MM		1
21		1316 338 002		OUTPUT FLANGE		1

Last update 01/2014

Fig.	Our No.	Part No.		Description	Notes	Q.ty	TP
22	95531938	0634 313 805		O-RING 82X4		1
23		1312 332 028		WASHER		1
24		0636 011 777		SCREW M12X60		2
25		6085 202 010		CONTROL HOUSING		1
26		0736 302 058		SCREW PLUG M48X1,5		1
27	95534739	0634 801 329		SEAL RING 48X55X1,9 MM		1	NSS
28		0732 042 402		SPRING		1
29		6085 302 018		PISTON		1
30	95532573	0501 314 434		SHEET GASKET		1
31		1315 379 033		PISTON		1
32		0732 042 741		SPRING		1
33		6085 202 015		ADJUSTING SCREW		1
34		0636 302 064		SCREW PLUG M24X1,5		1
35	95534377	0730 008 637		SEAL RING 24X29X2 MM		1
36		0501 211 616		ACCUMULATOR		1
37		0501 214 022		ACCUMULATOR		1
38		0501 321 459		VALVE		1
39		0501 322 529		SENSOR		1
40	95532571	0634 313 568		O-RING 63X3		1
41		6085 303 008		RING GEAR		1
42		6085 203 001		SHAFT		1
43		0635 303 038		NEEDLE SLEEVE		1
44	95532570	0634 313 056		O-RING 37X3		1
45		6085 303 011		PUMP HOUSING		1

Note

(1) NOT SUPPLIED SEPARATELY, WE SUPPLY THE OIL FILTER COMPLETE: 95532619 - 6085 298 026
